Spectra of The Sun
Home Made Spectrograph with
1200 lpmm Grating.

Uploaded 3/6/18

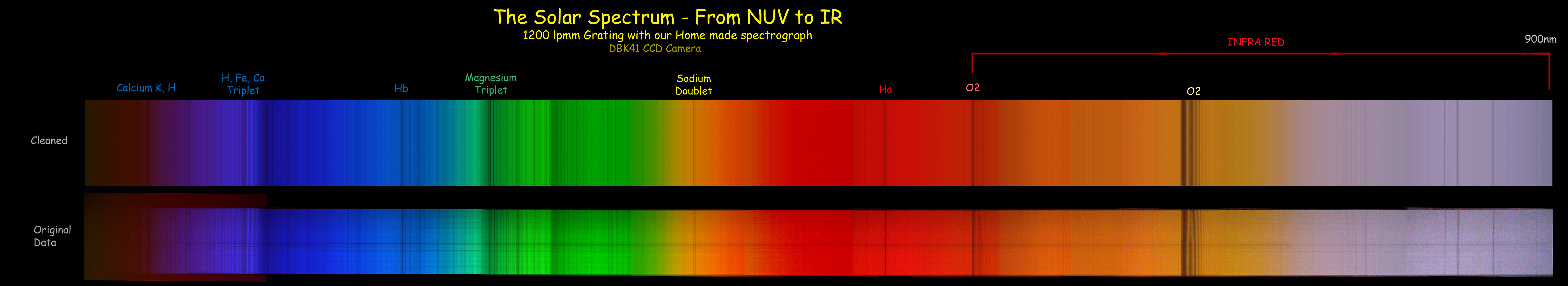

This
            is my most ambitious solar spectra project yet. Composed of 18
            separate images that have been merged into one giant solar spectrum.
            It includes Calcium K on the left at 395nm all the way to 900nm
            on the right far into the IR. You can see many Telluric lines
            from oxygen in that region as very dark band, with many fine
            ones by their side forming a band head.



 Size 1 -
            Tiny (1290 width)





Larger -600 tall
            by 3295 wide





3/4 size - 1290
            tall x 7000 wide





Instrument:  Home made spectrograph
Grating:  Edmund 1200
CCD Camera:  DBK 41 Imaging Source (Color)
Location:  Payson, Arizona, Elevation:  5150 ft.
Outside Temperature:  35 F
Image Processing Tools: RSpec for spectral extraction, Photoshop CS2
