Spectra of Each of the Primary Spectral Classes
12.5" Newtonian and Star Analyzer
Uploaded 10/22/12

Here
            is the results of my first spectroscopic project, a collection
            arranged in sequence of a representitive star from each classical
            class of type of star, from O to M. Underneath, the original
            data is provided in two formats. The first is an instrument calibrated
            response curve on the star used in the class type, followed by
            a continuum normalized version to best illustrate the spectral
            lines. A DMK51 from Imaging Source was used for this project,
            which has an extended IR response as you can see from the Telluric
            band on the right of each spectrum as a dark thick band, which
            represents Earths atmospheric Oxygen superimposed on the stars
            spectra.
Click on images to
Enlarge to full size!

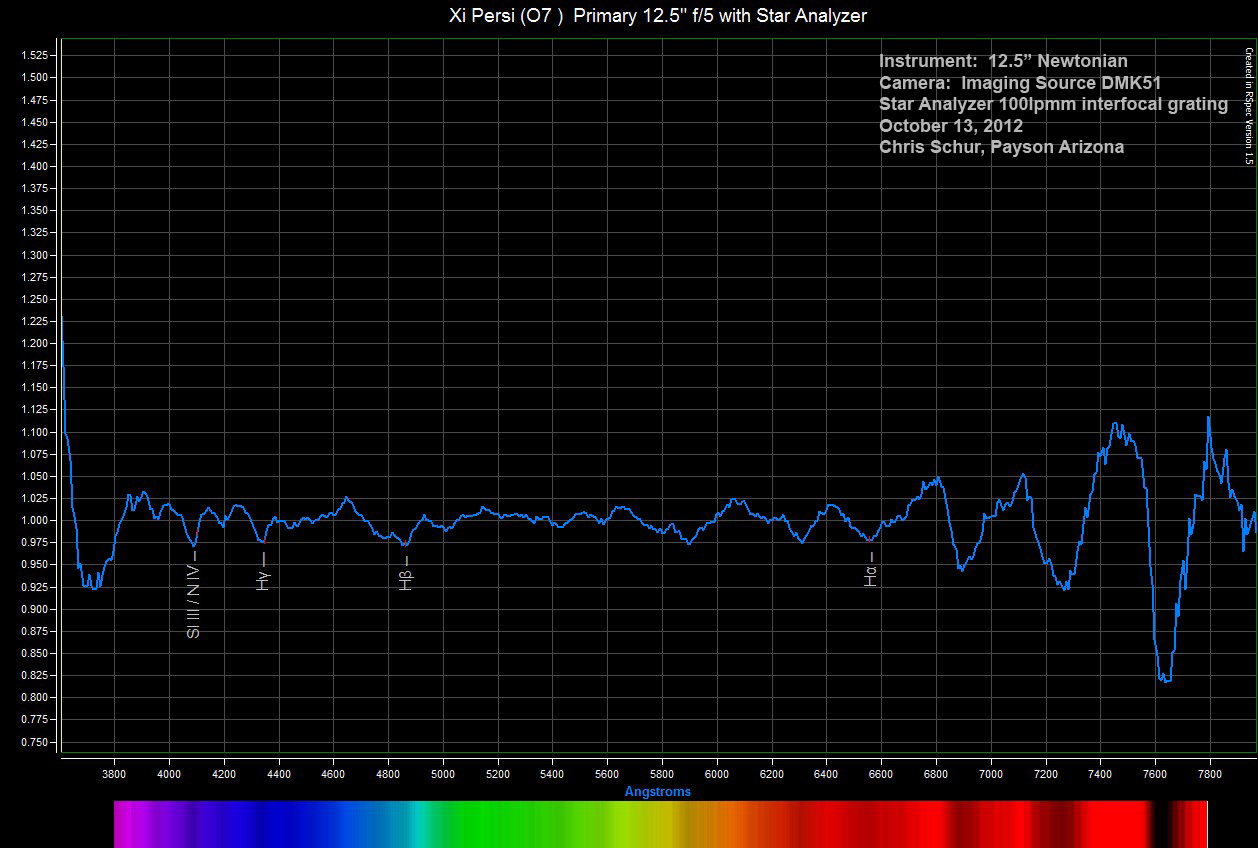

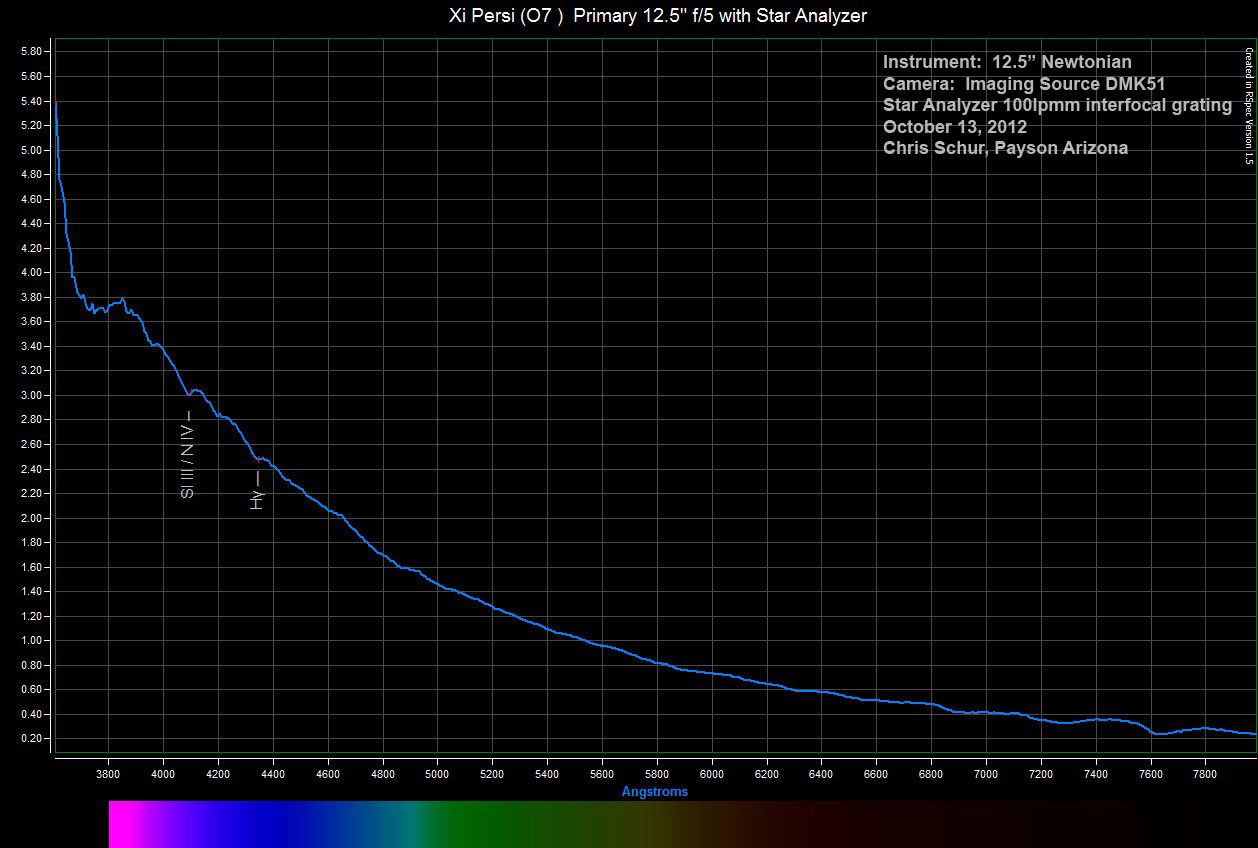

 Class O

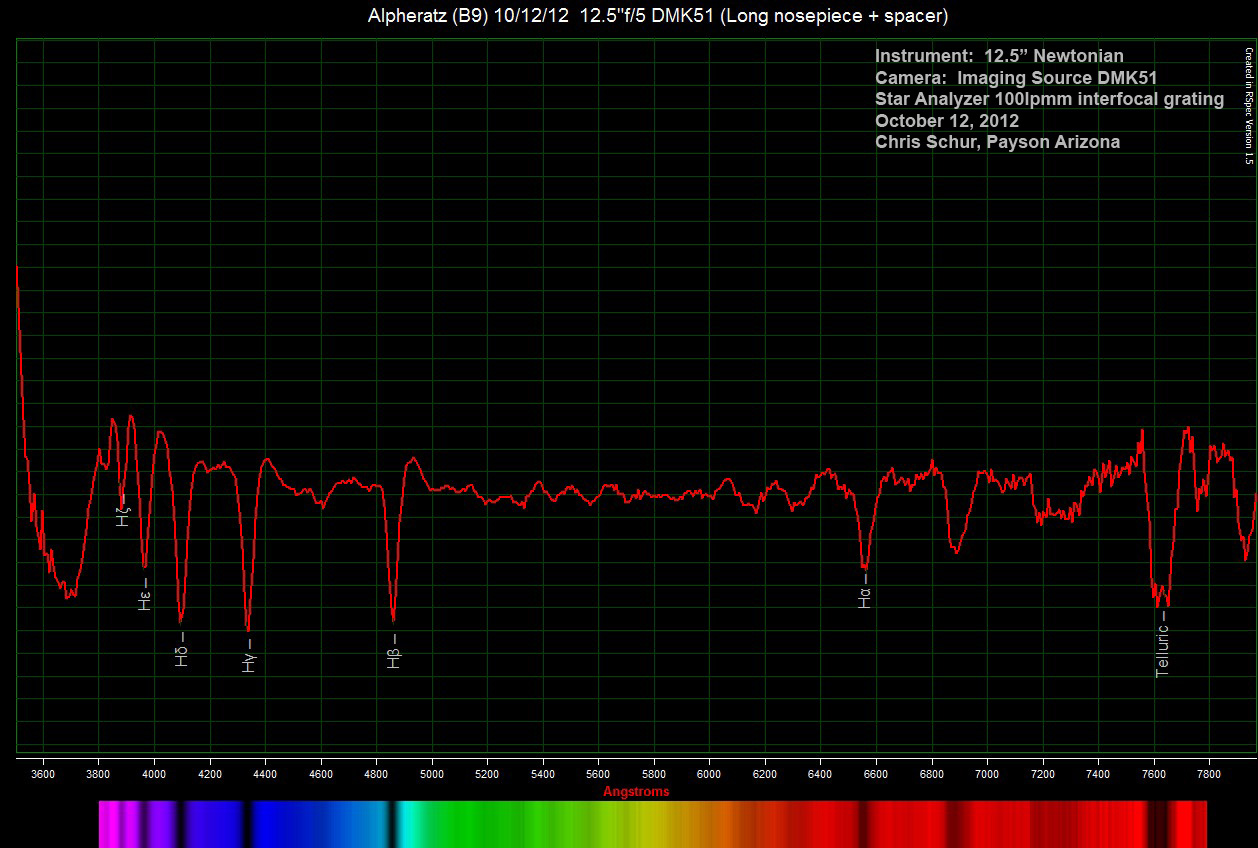

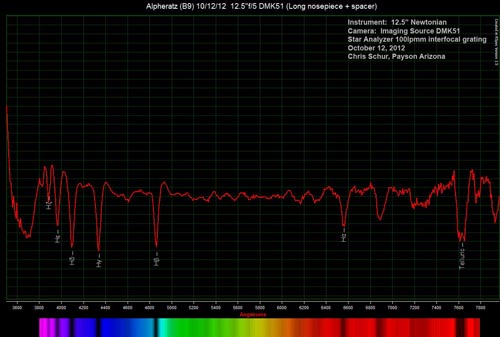

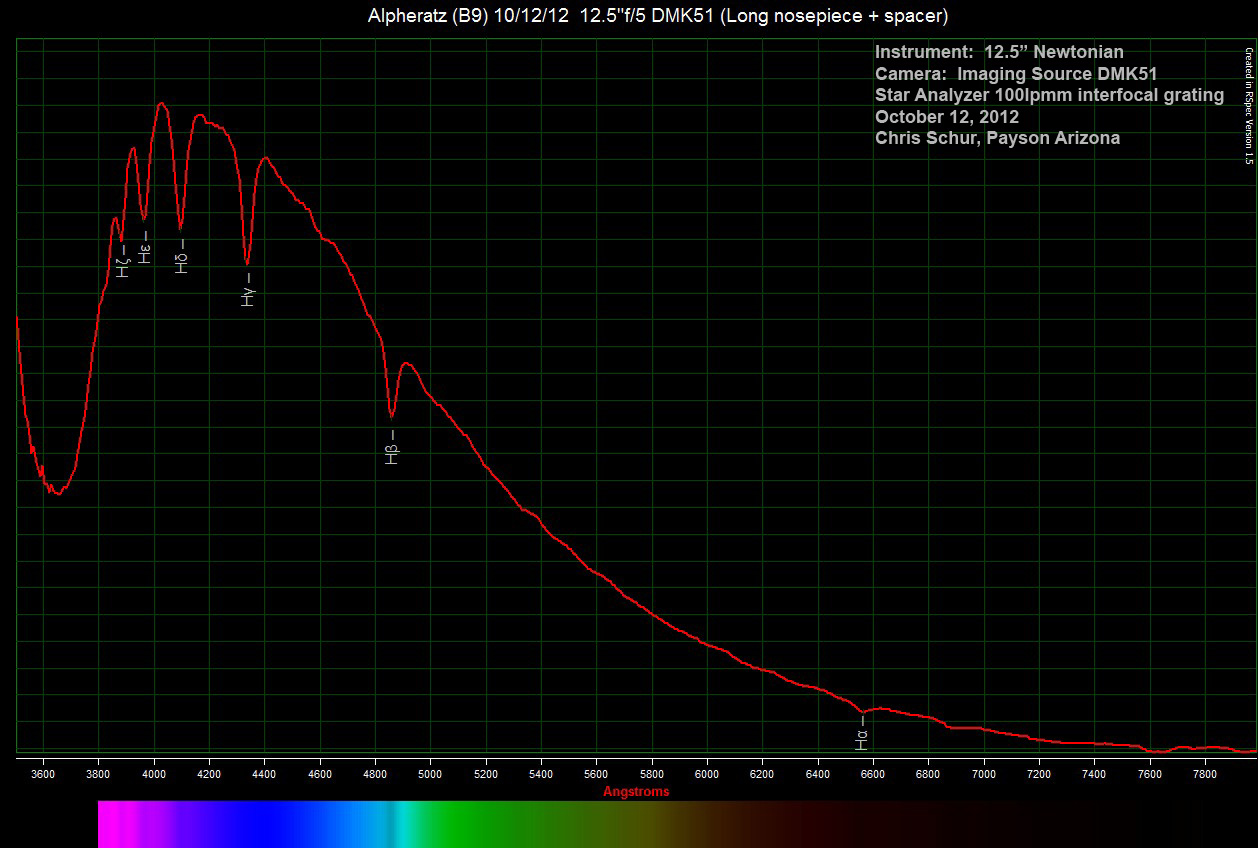

 Class B

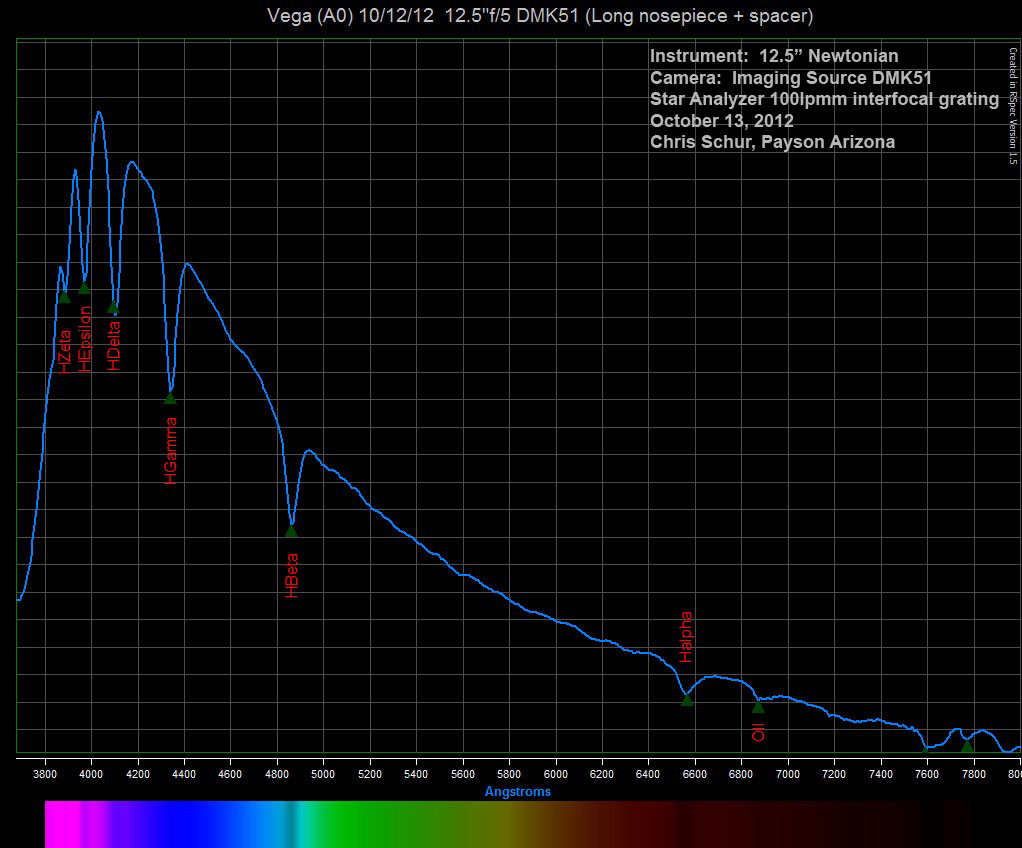

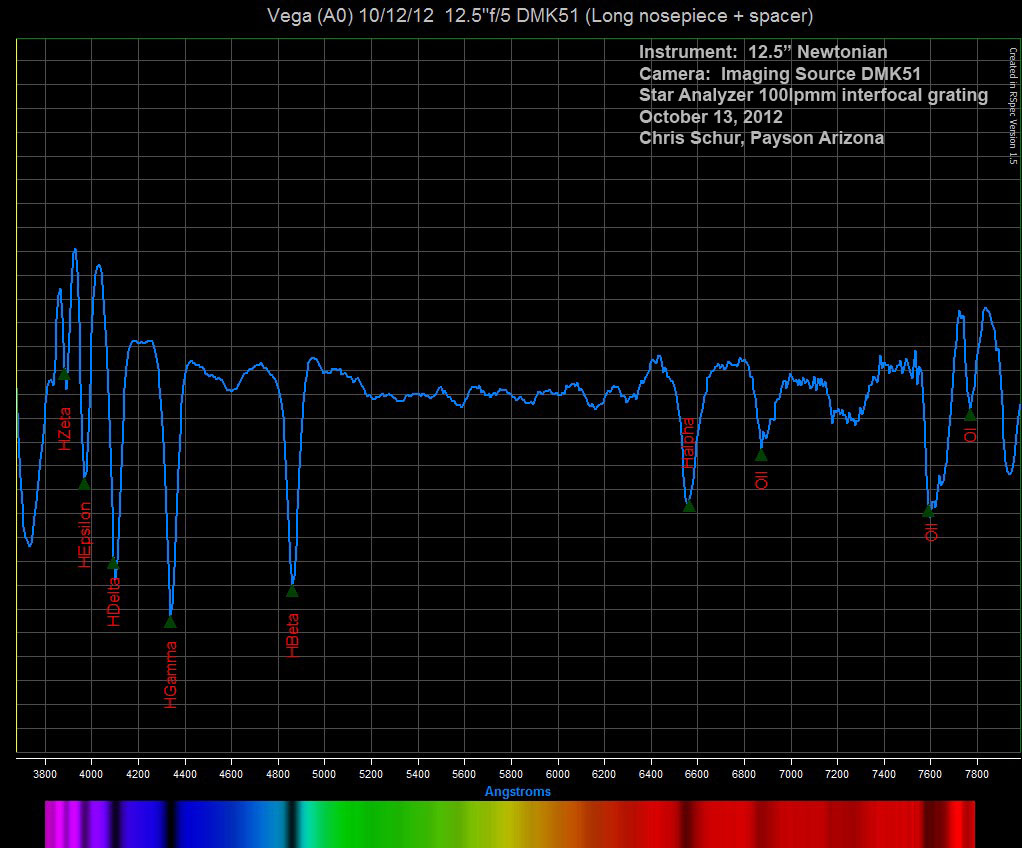

 Class A

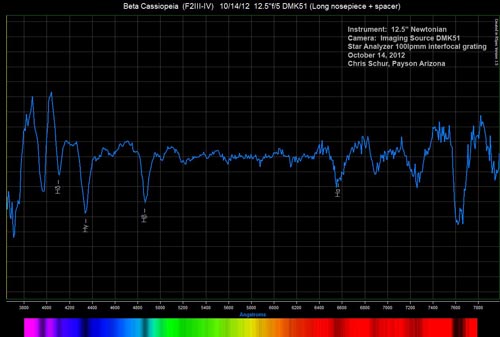

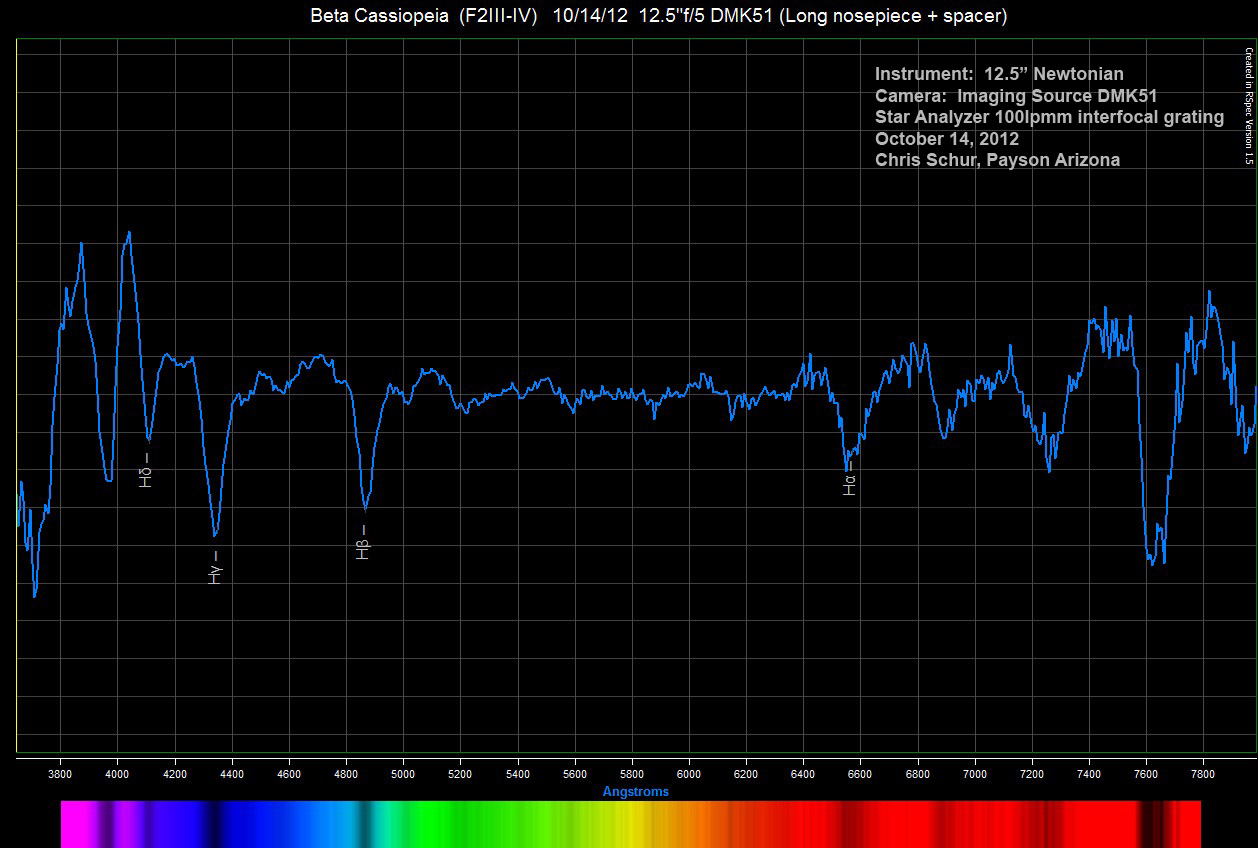

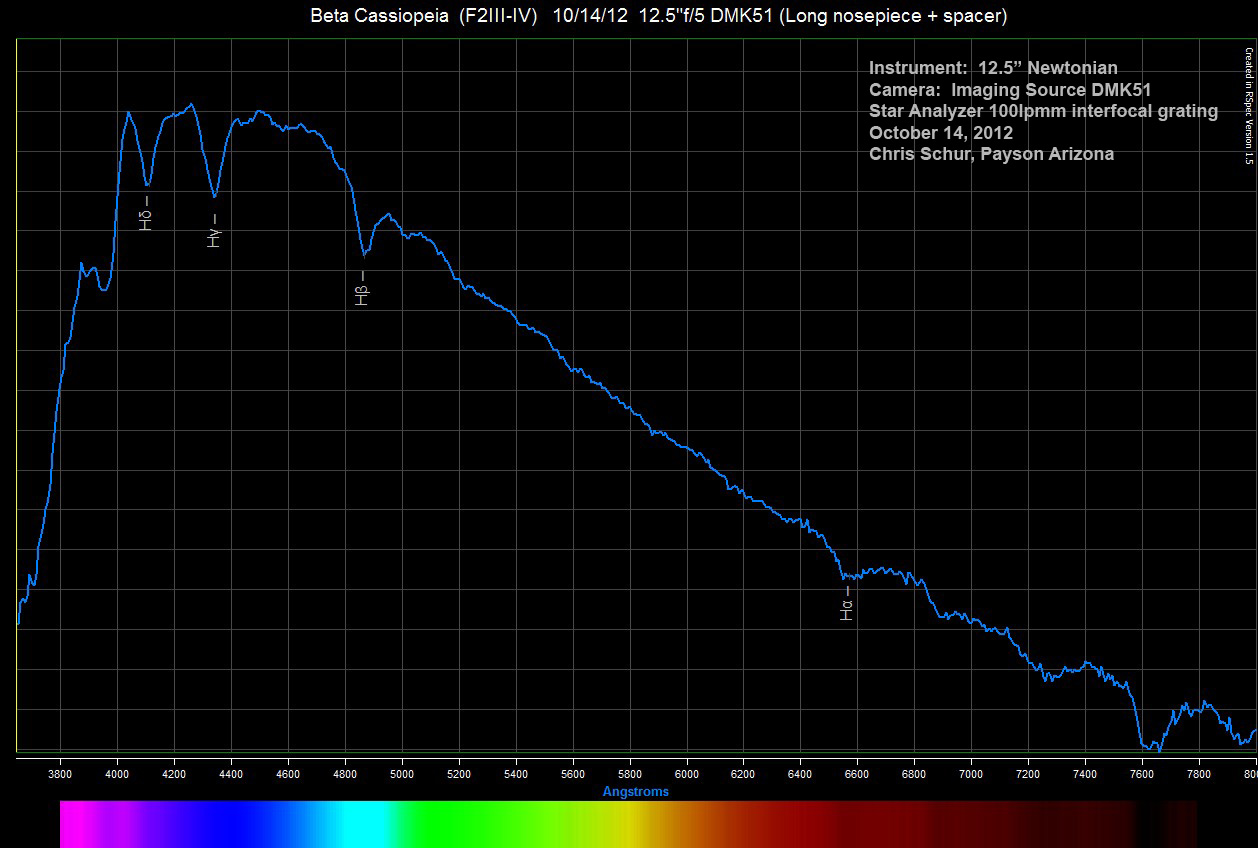

 Class F

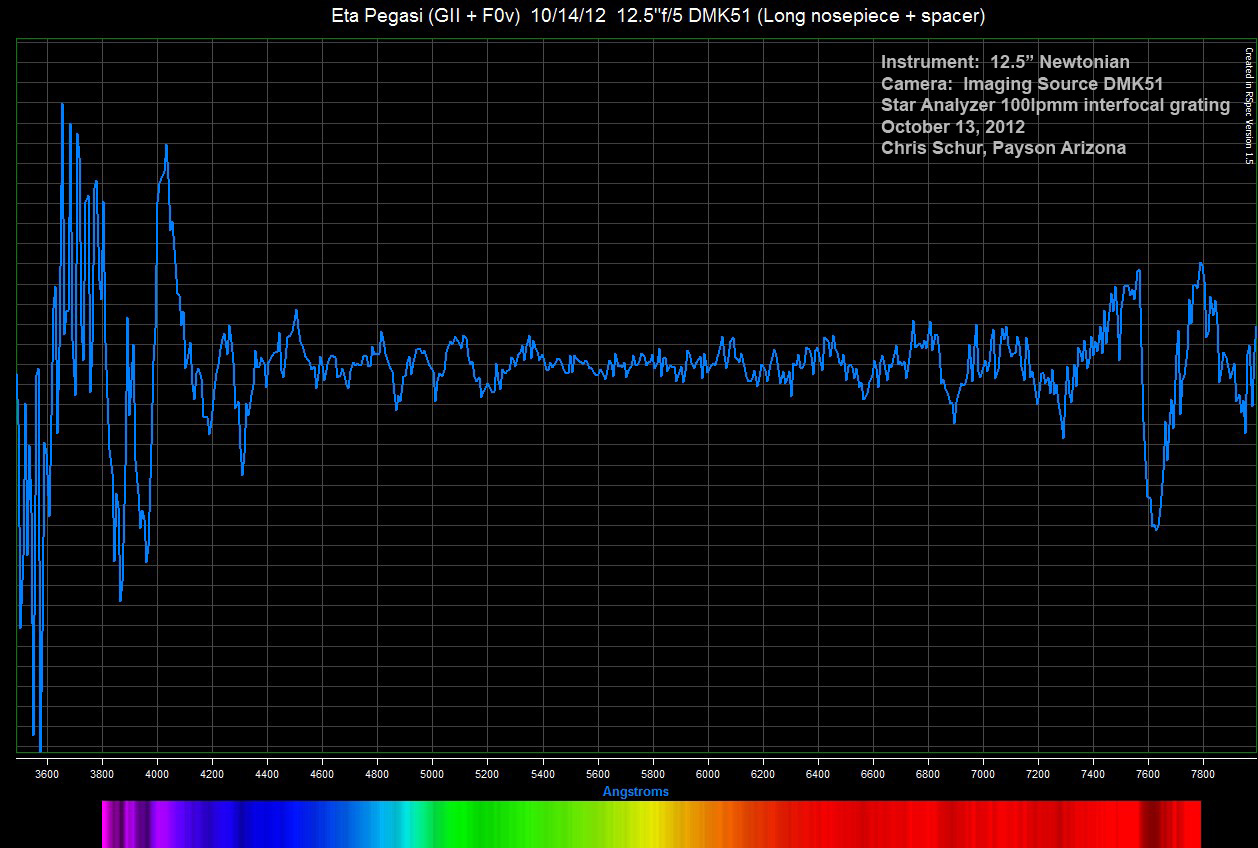

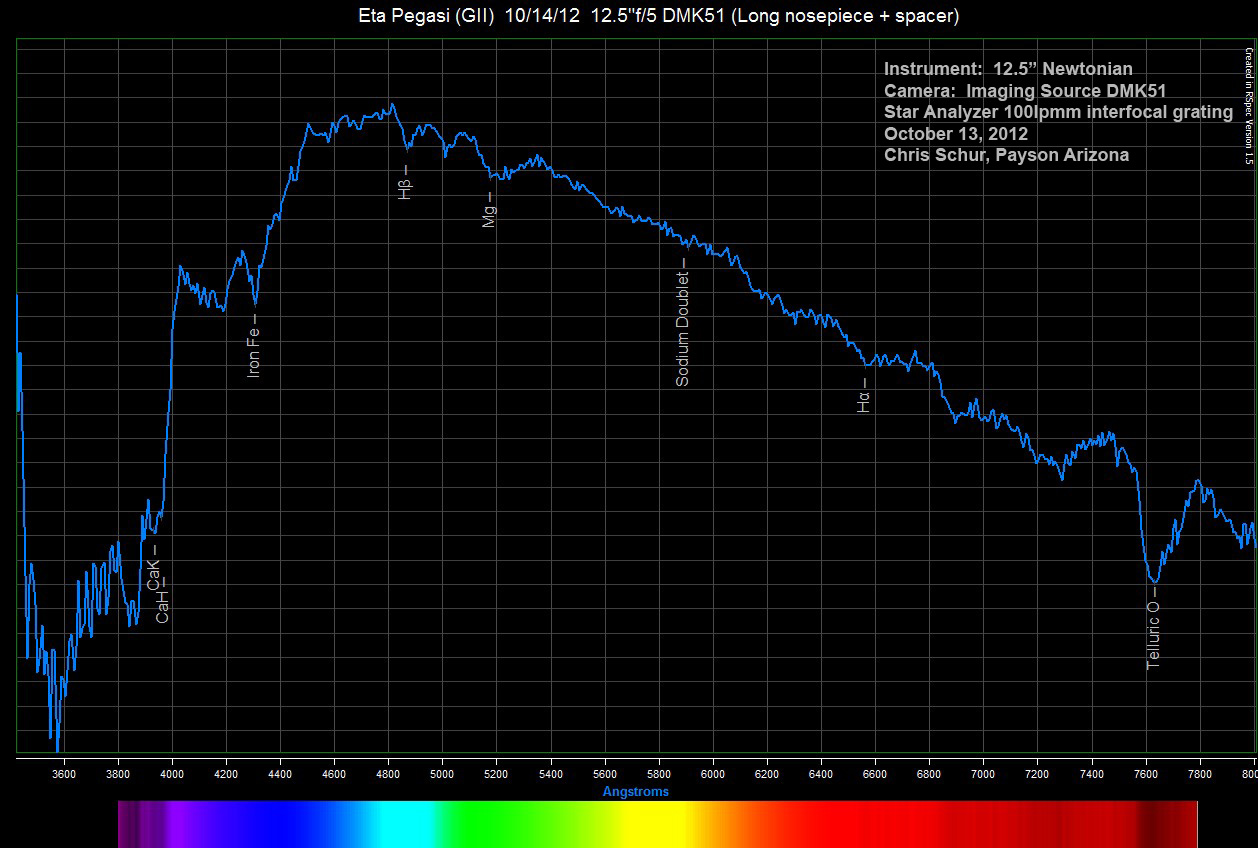

 Class G

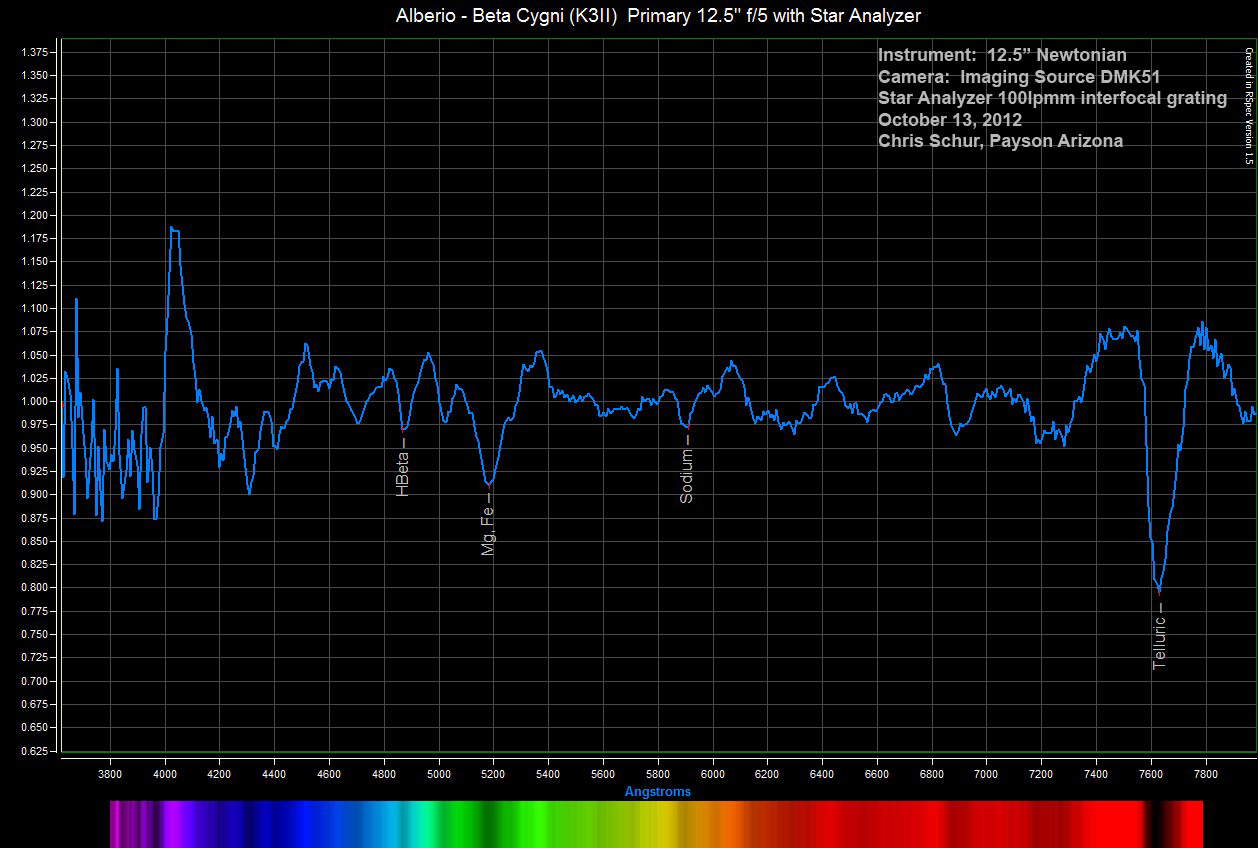

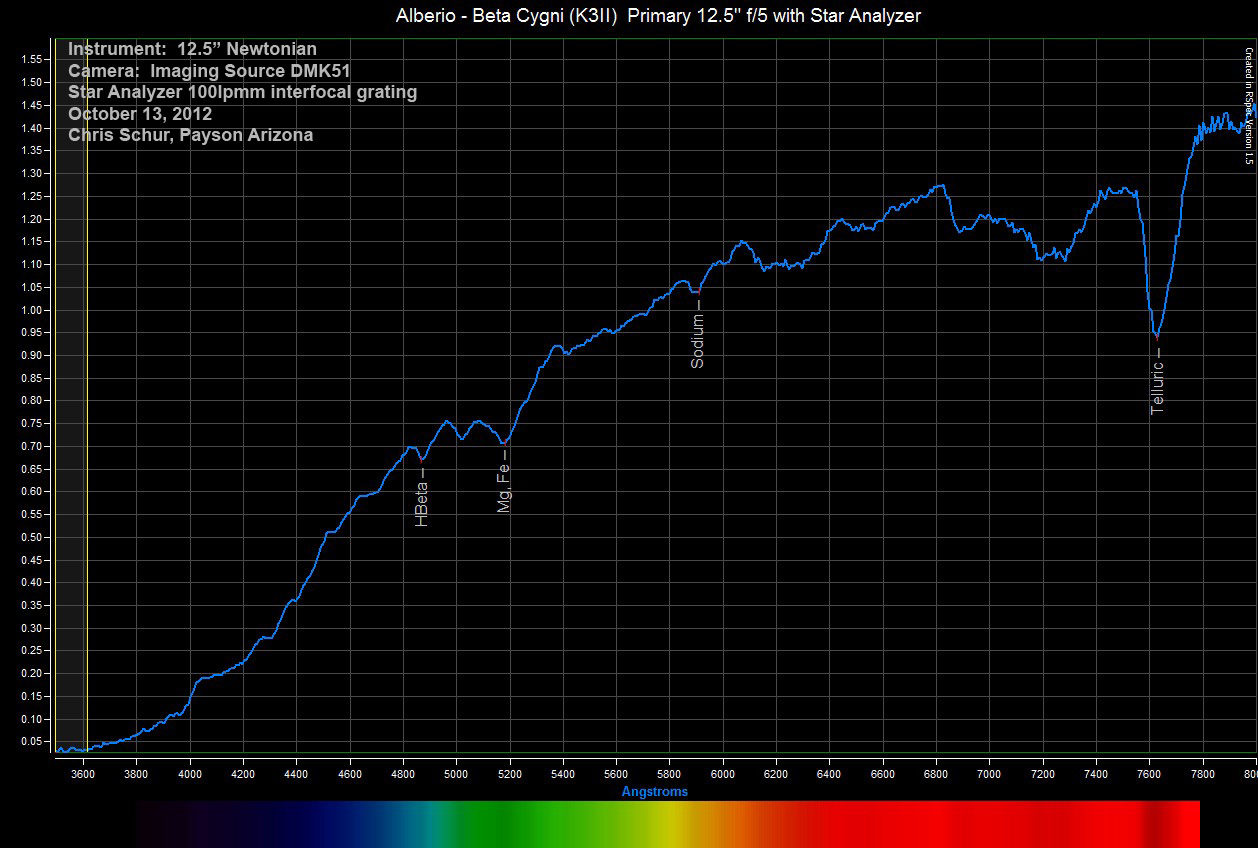

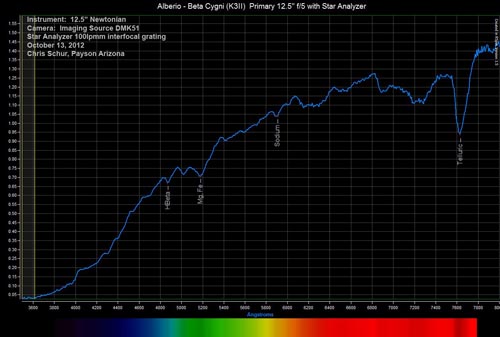

  Class K

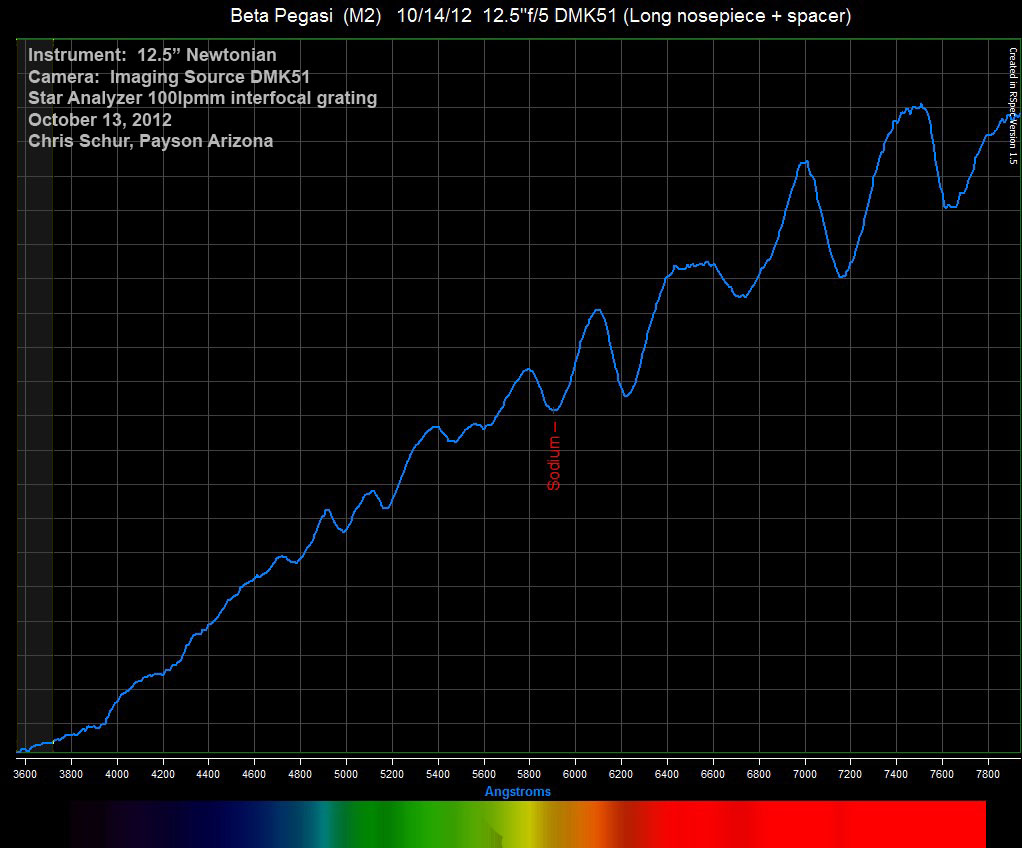

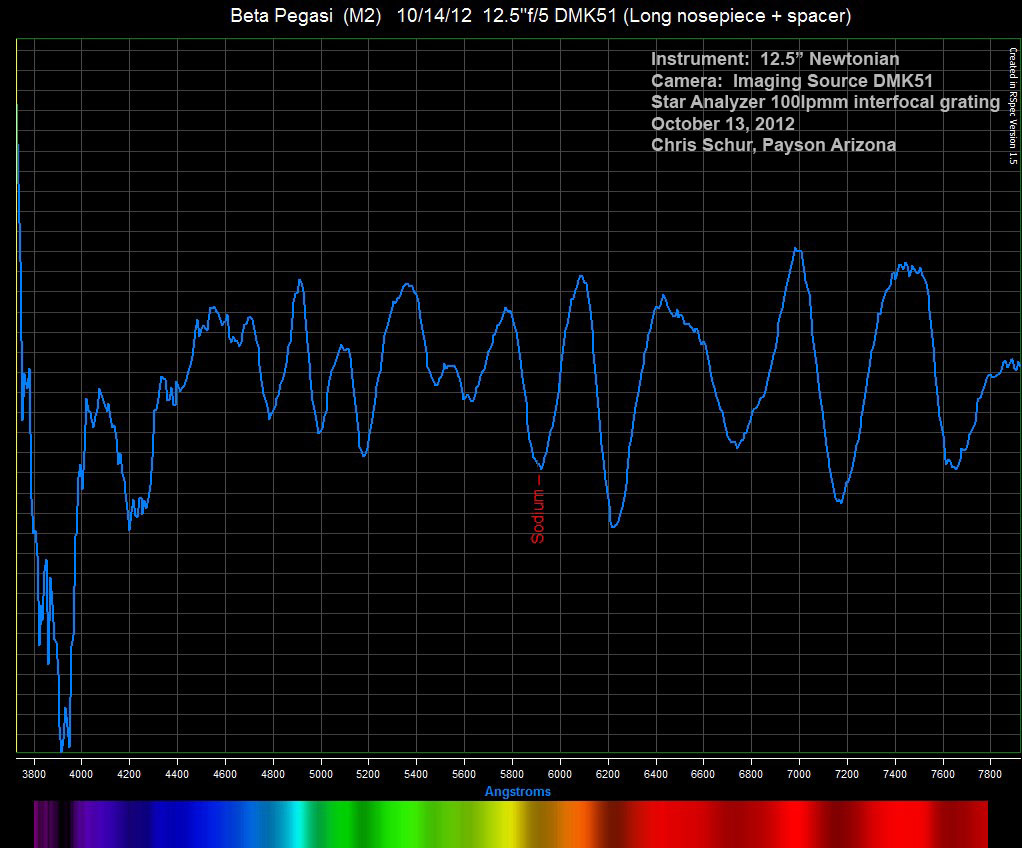

 Class M

Instrument:  12.5" f/5 Home made Newtonian
Grating:  Star Analyzer  100 lpmm
Mount:  Astrophysics 1200 QMD
CCD Camera:  DMK51 Imaging Source
Location:  Payson, Arizona, Elevation:  5150 ft.
Sky:  Seeing FWHM = 5 arcsec , Transparency 9/10
Outside Temperature:  55 F
Image Processing Tools: RSpec for spectral extraction, Photoshop CS2
