Spectra of Main Sequence Normal Stars
12.5" Newtonian and Star Analyzer
Uploaded 9/29/13

Click on thumnails for larger view




 Class O

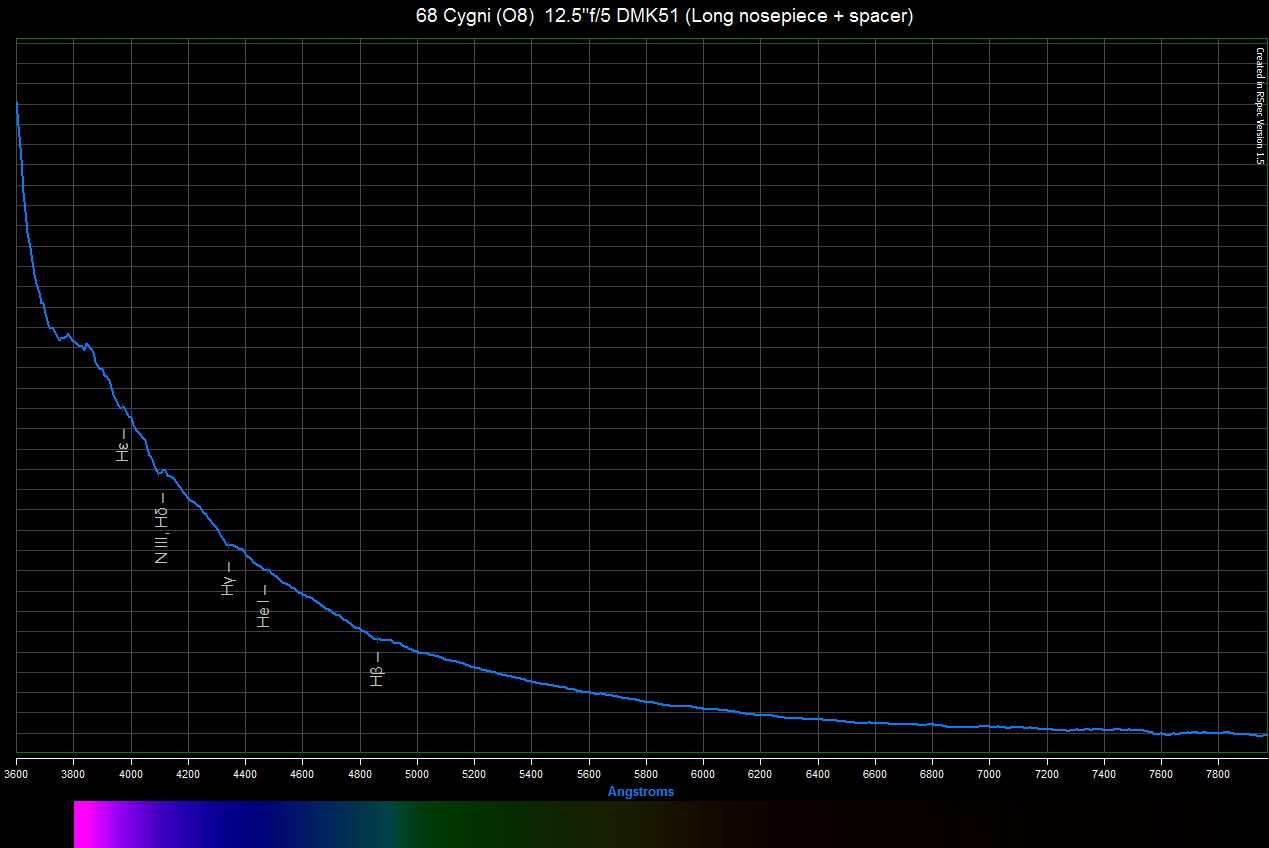

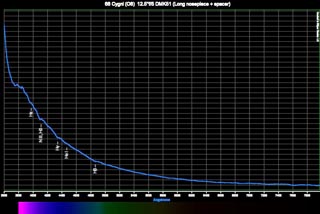

68 Cygni - O8 (f)
Instrument Calibrated Response

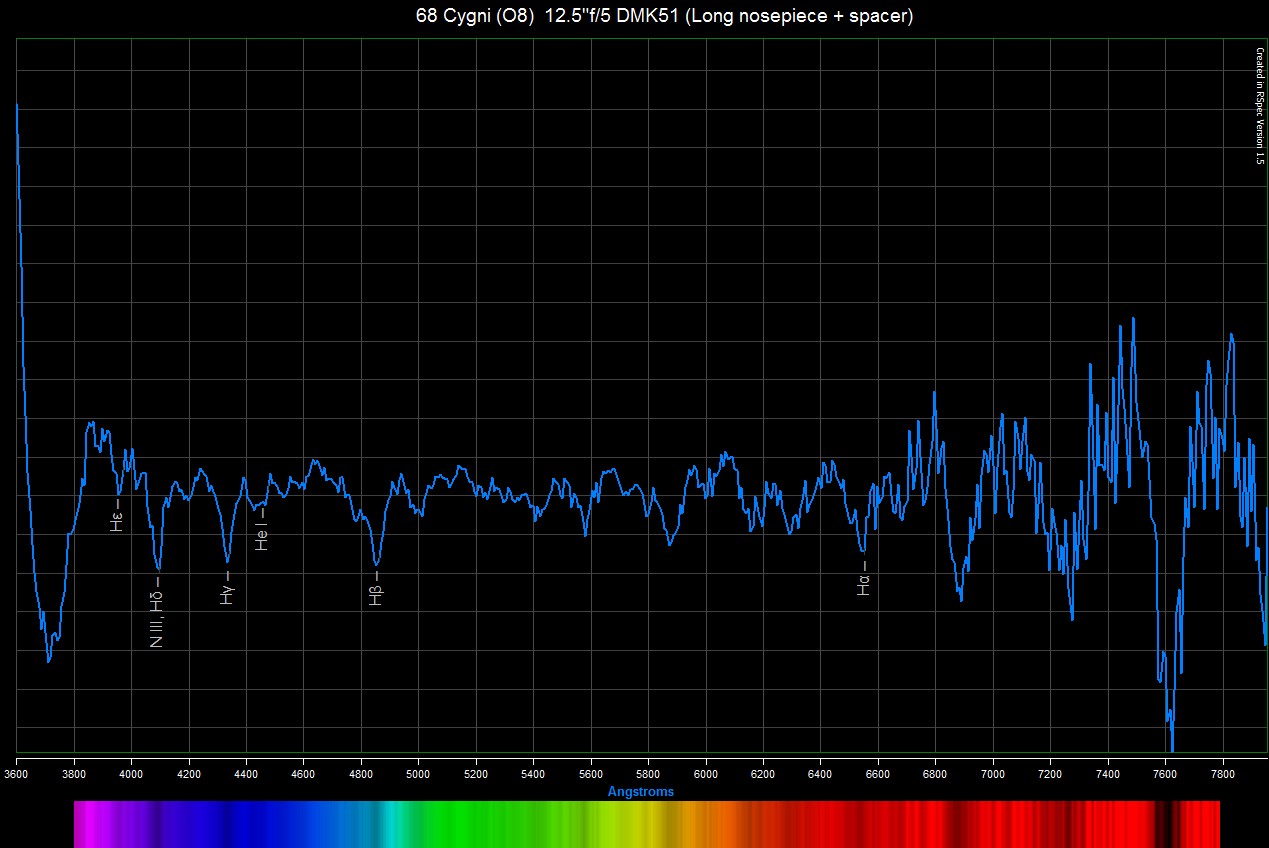

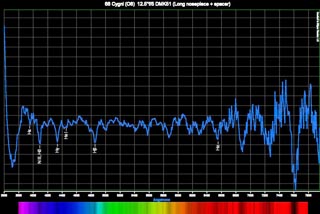

68 Cygni - O8 (f)
Instrument Calibrated Response Normalized

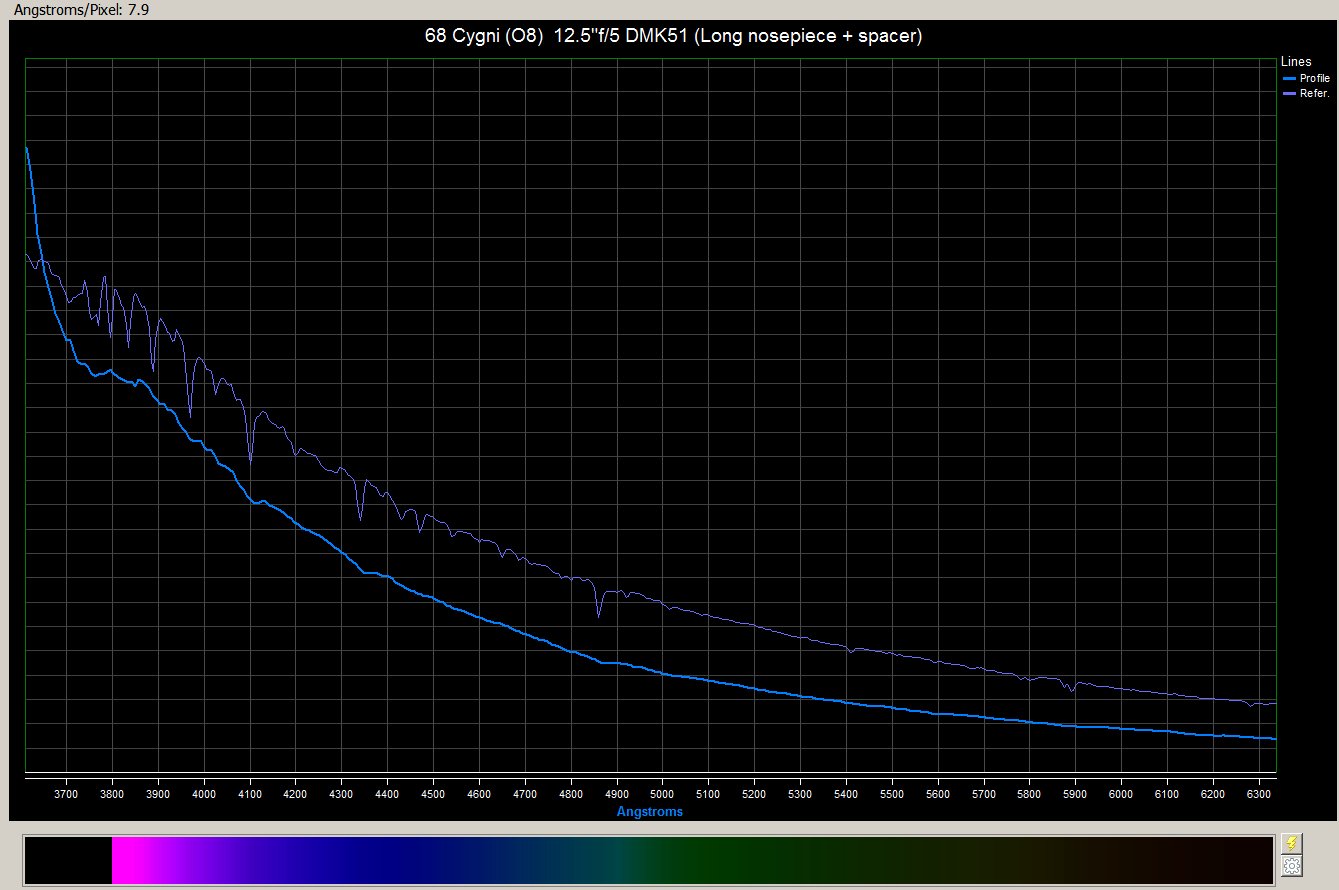

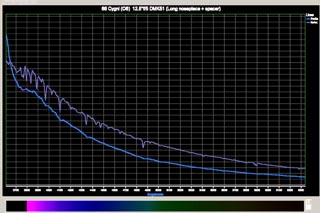

68 Cygni - O8 (f)
Comparison to Library Curve for
Star type

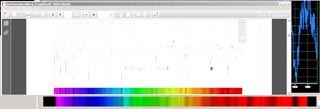

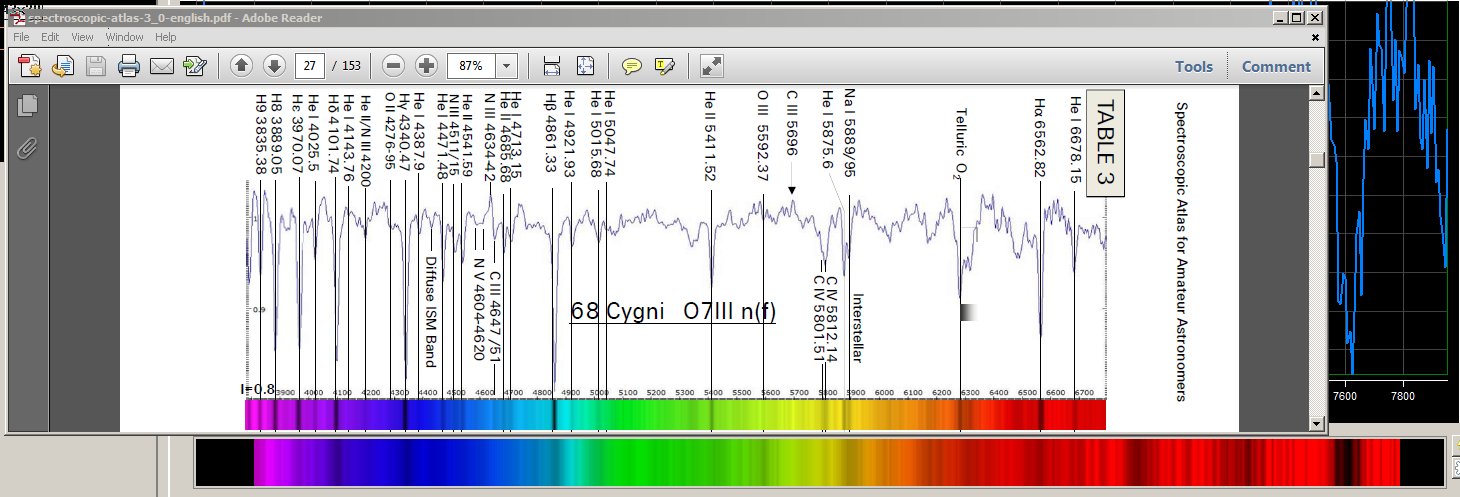

68 Cygni - O8 (f)
Overlay of Walkers Spectra Atlas
showing lines correlation

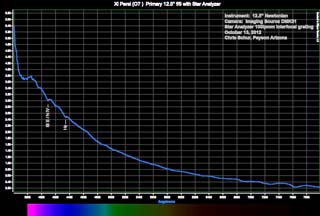

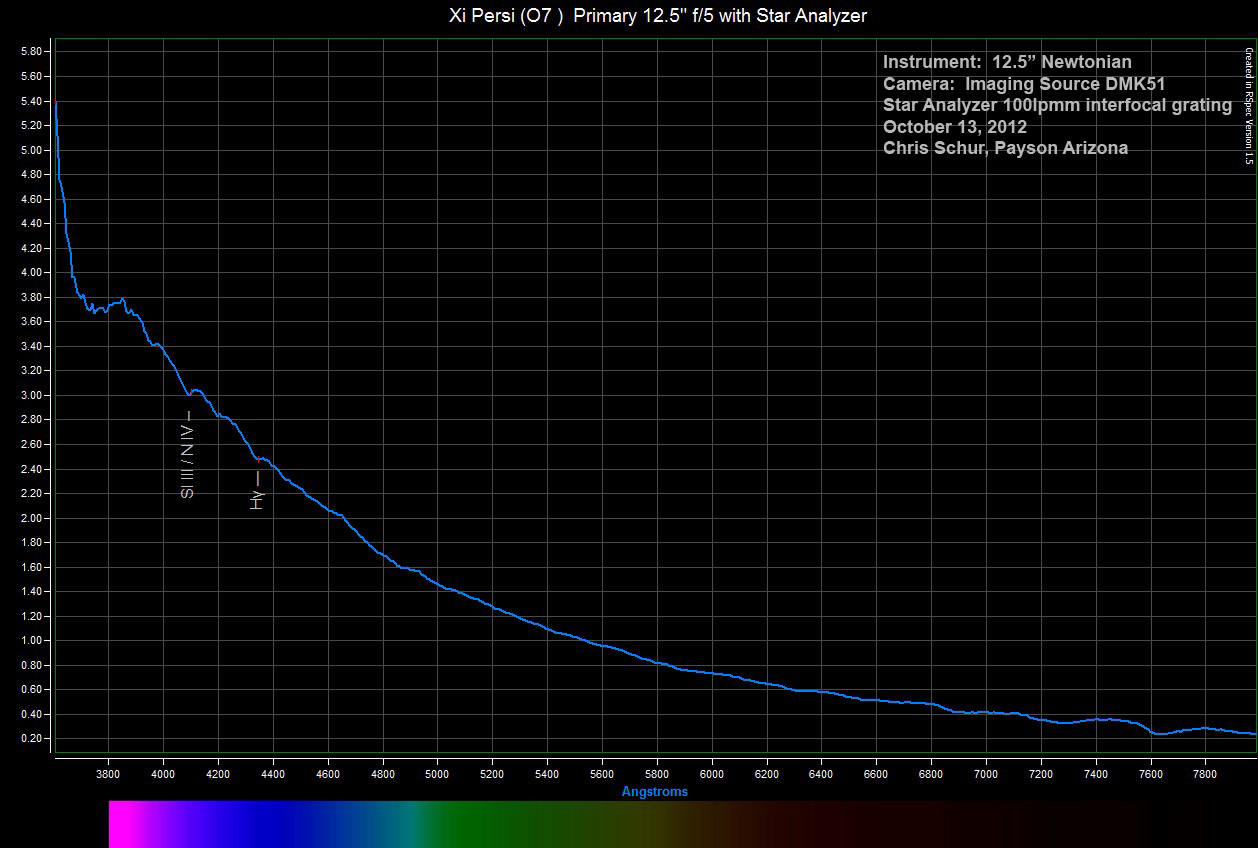

Xi Persi - O7
Instrument Calibrated Response

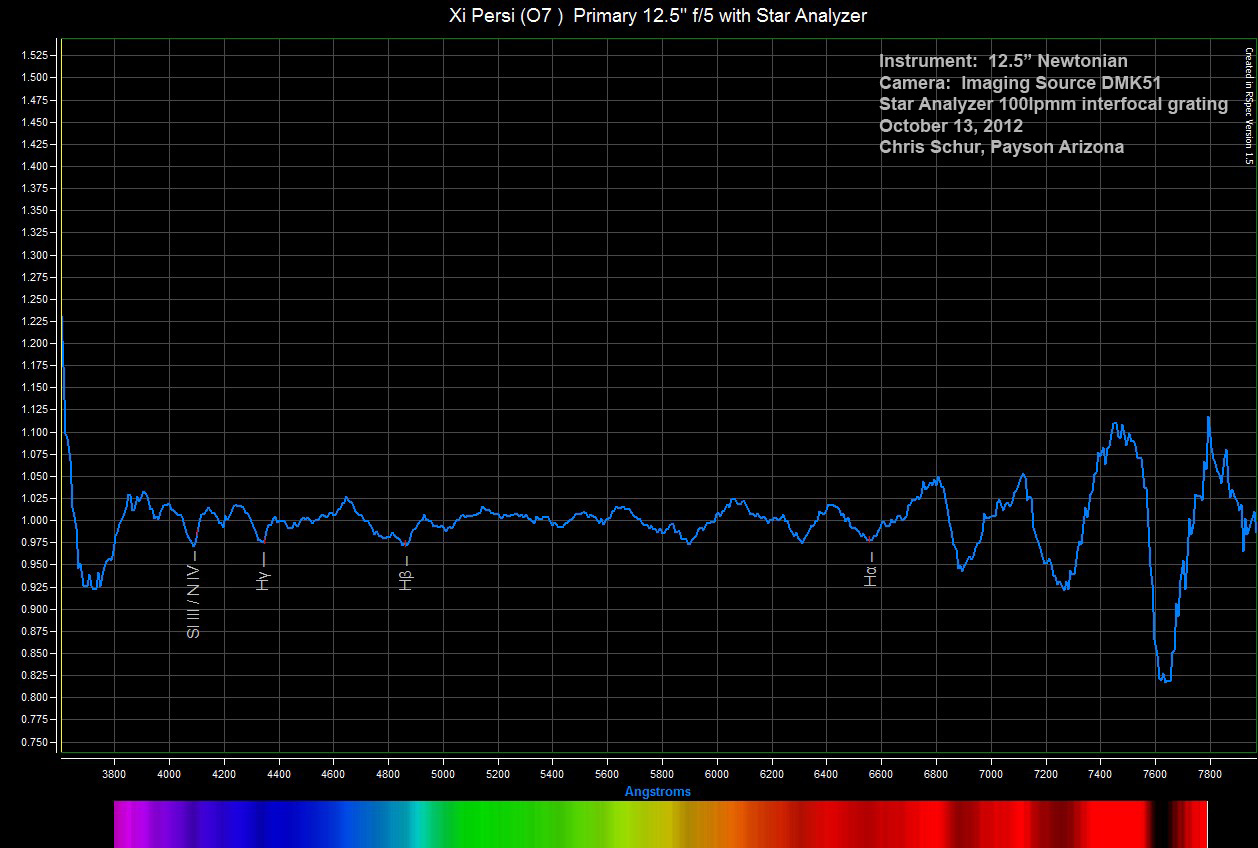

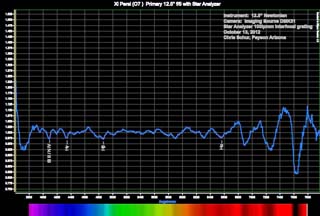

Xi Persi - O7
Instrument Calibrated Response Normalized

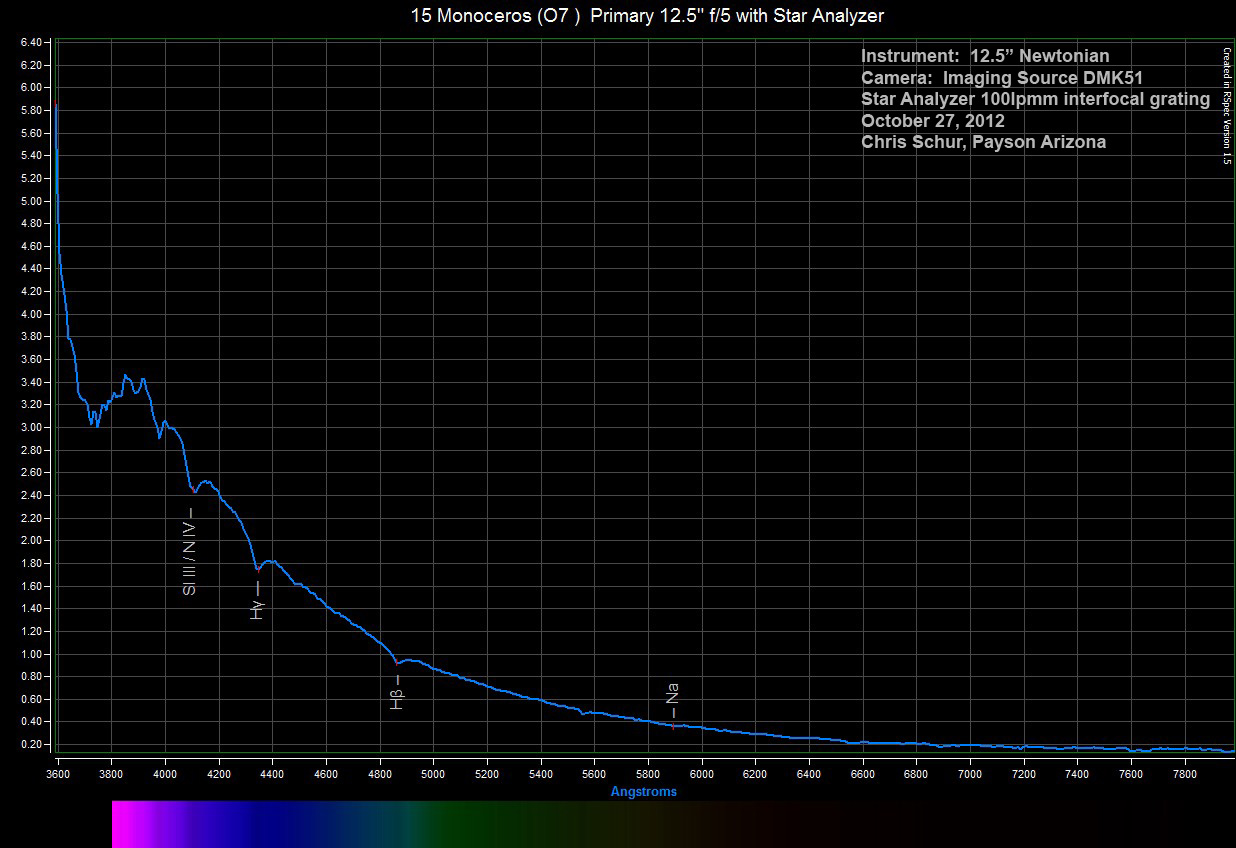

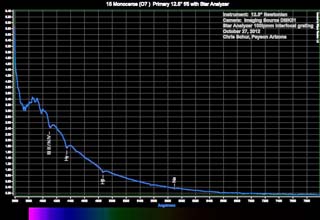

15 Monoceros - O7
Instrument Calibrated Response

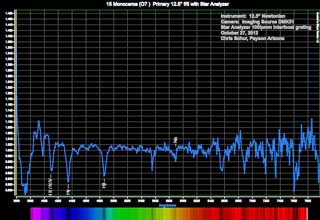

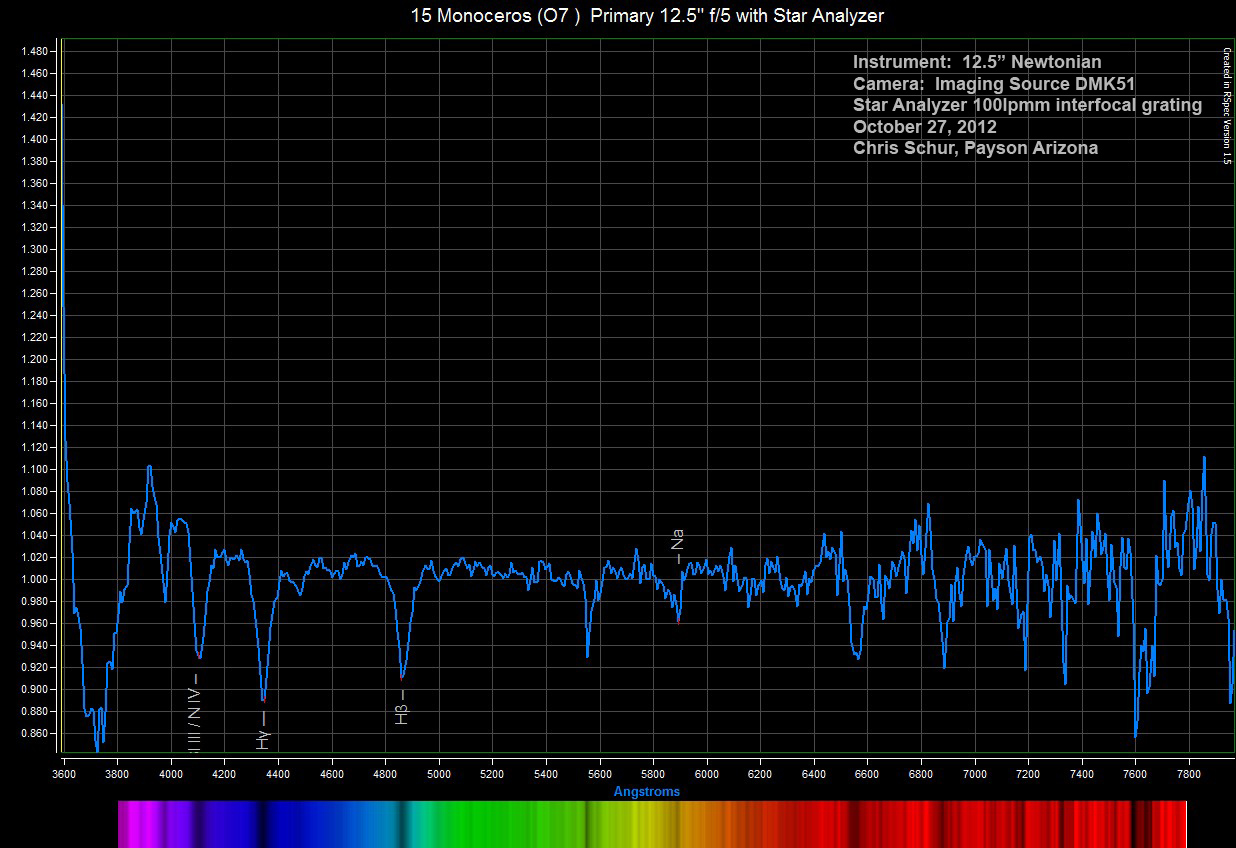

15 Monoceros - O7
Instrument Calibrated Response Normalized

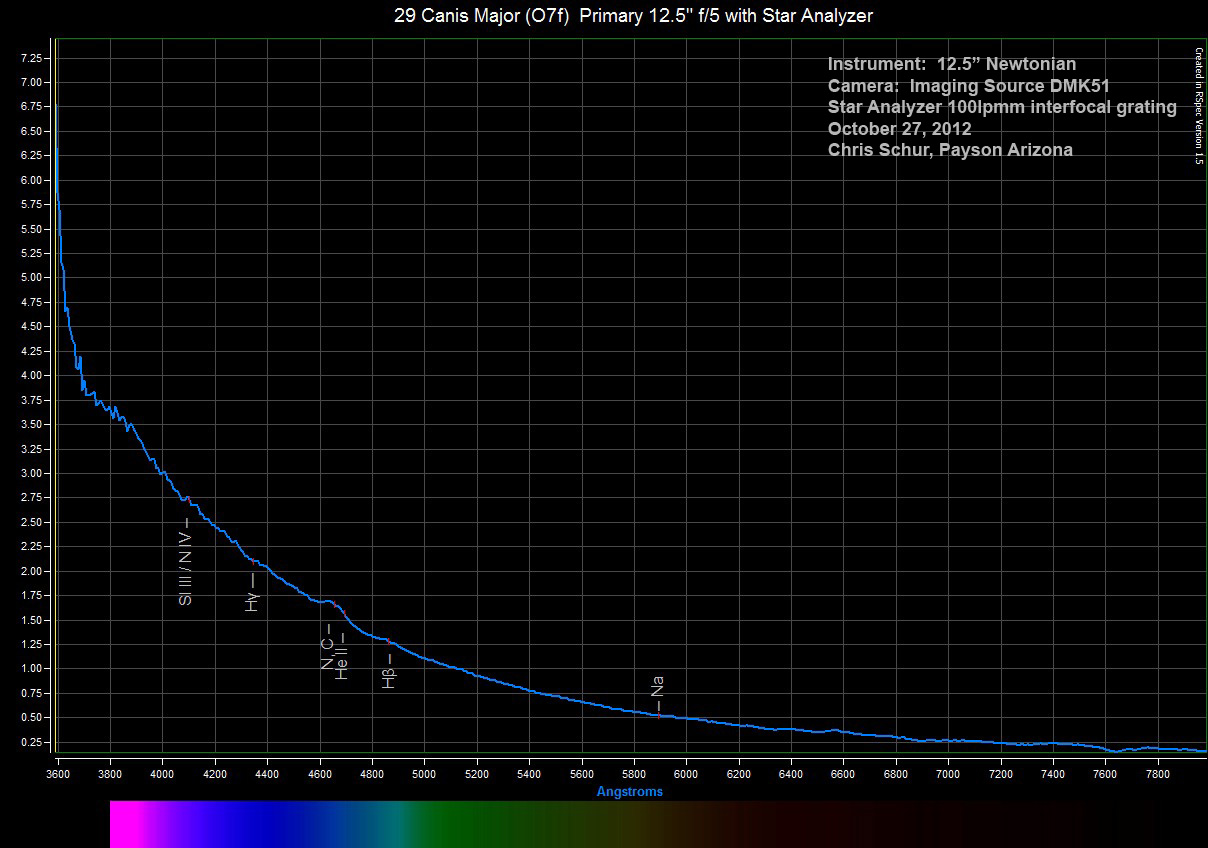

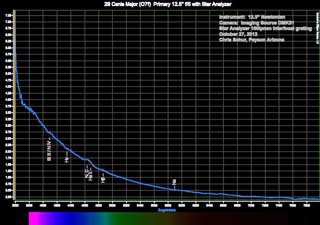

29 Canis Major - O7f
Instrument Calibrated Response

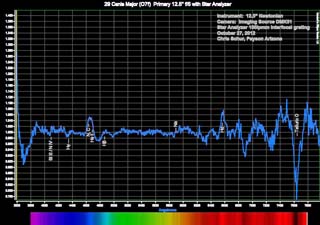

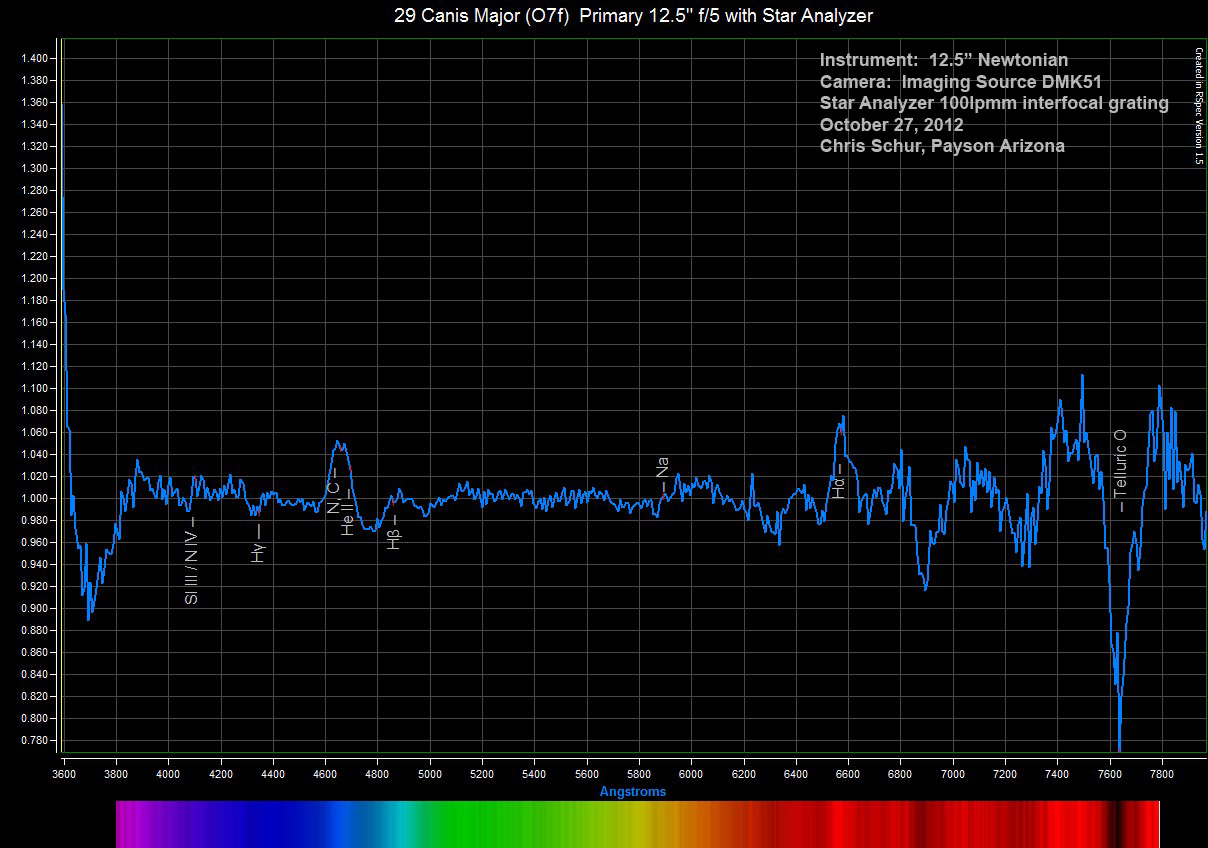

29 Canis Major - O7f
Instrument Calibrated Response Normalized

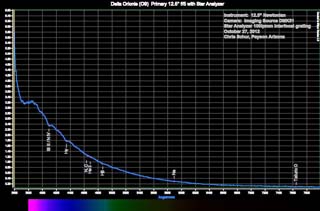

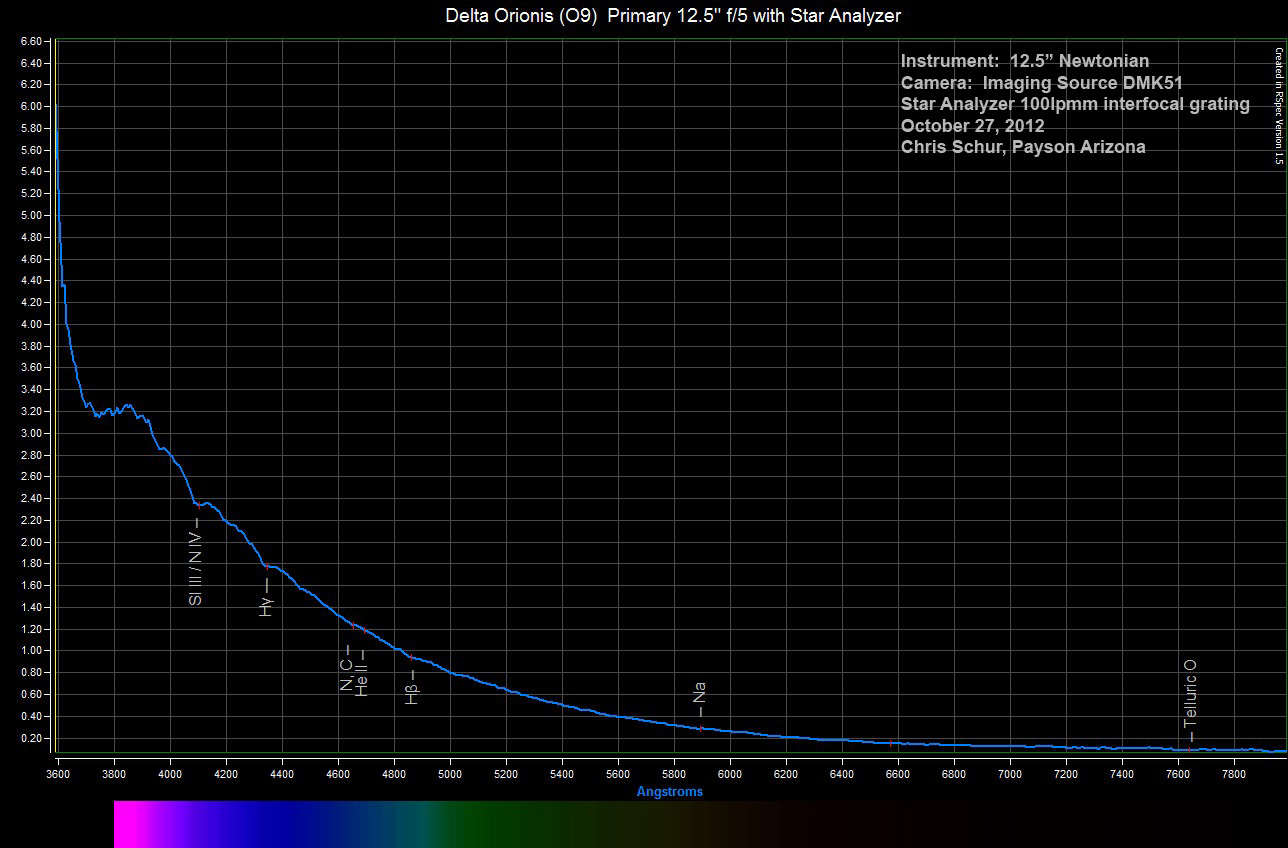

Delta Orionis - O9
Instrument Calibrated Response

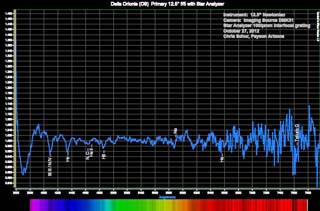

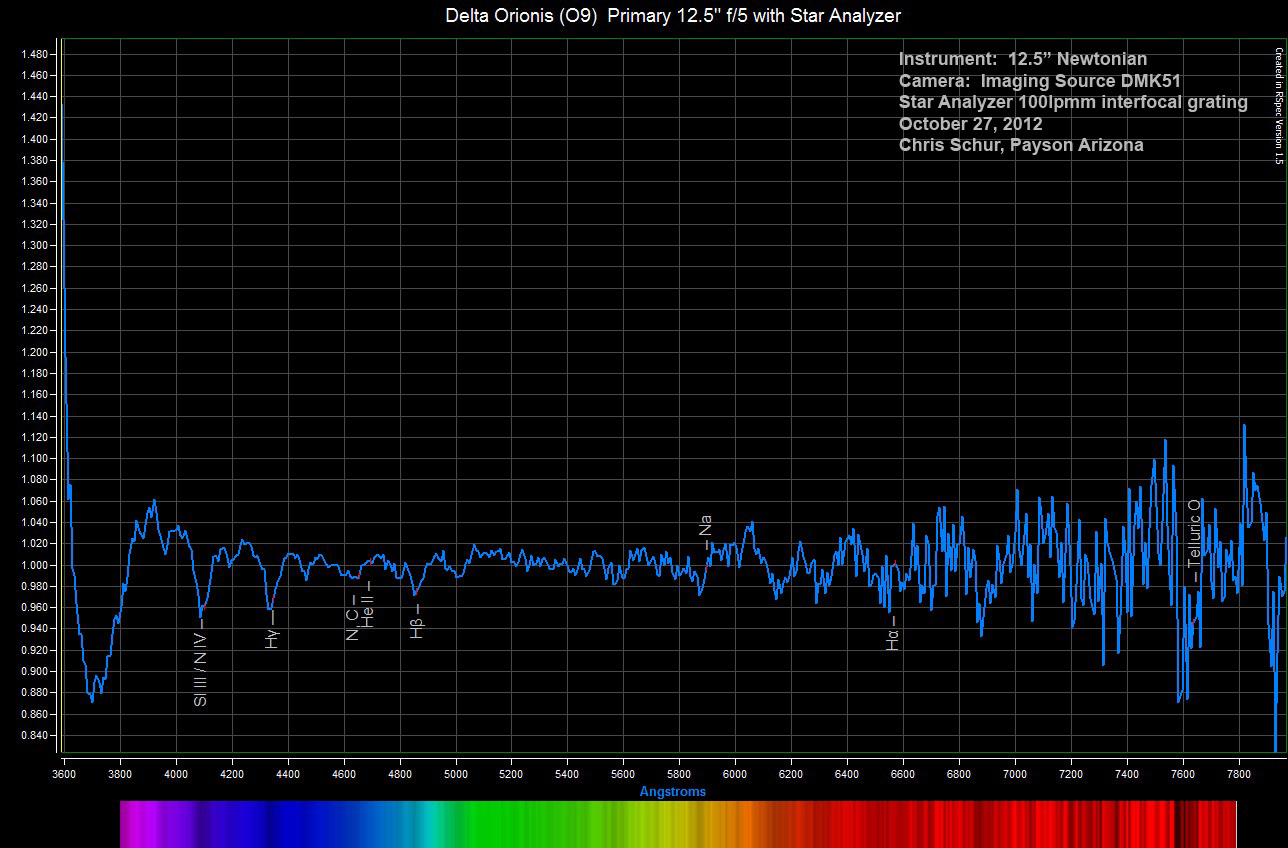

Delta Orionis - O9
Instrument Calibrated Response Normalized

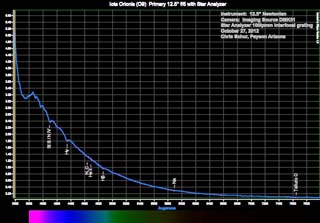

Iota Orionis - O9
Instrument Calibrated Response

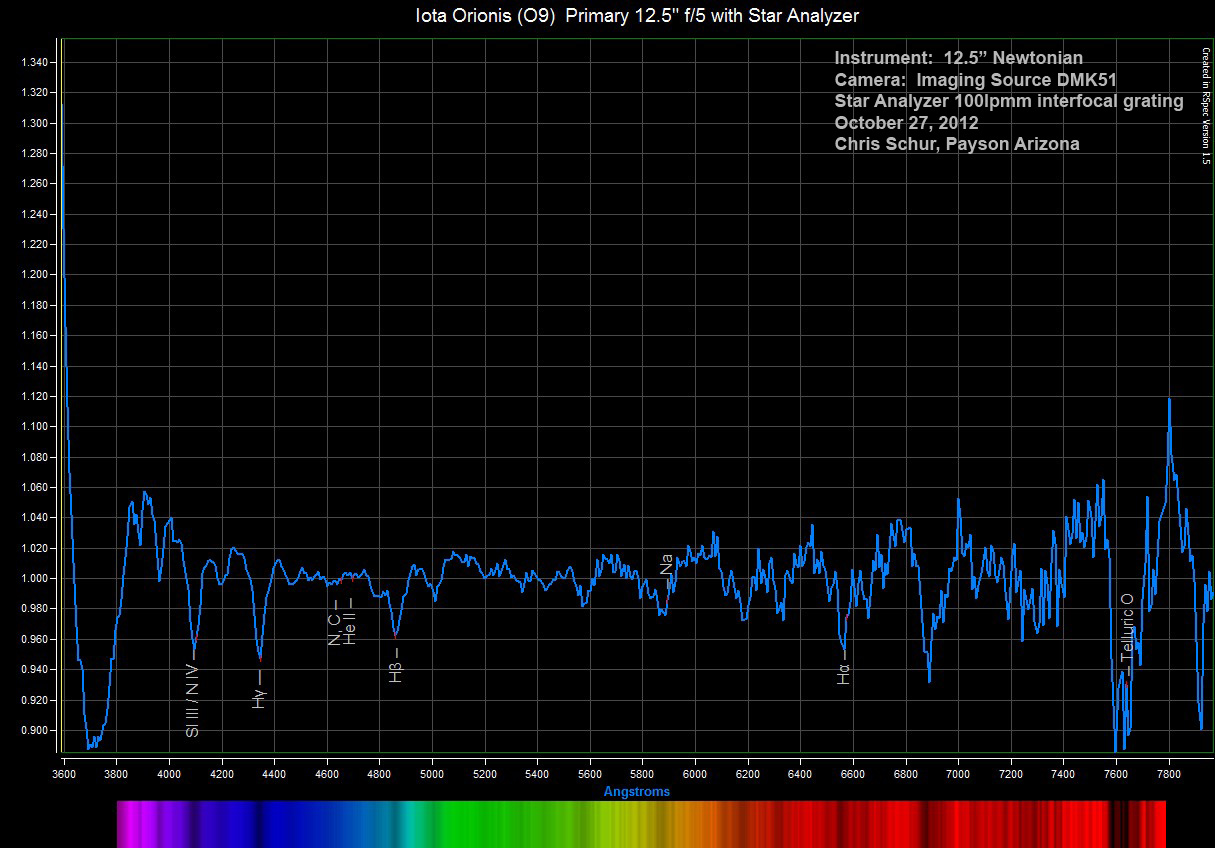

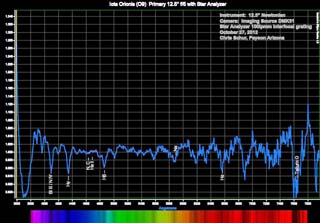

Iota Orionis - O9
Instrument Calibrated Response Normalized

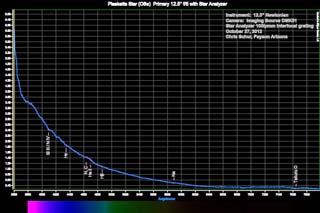

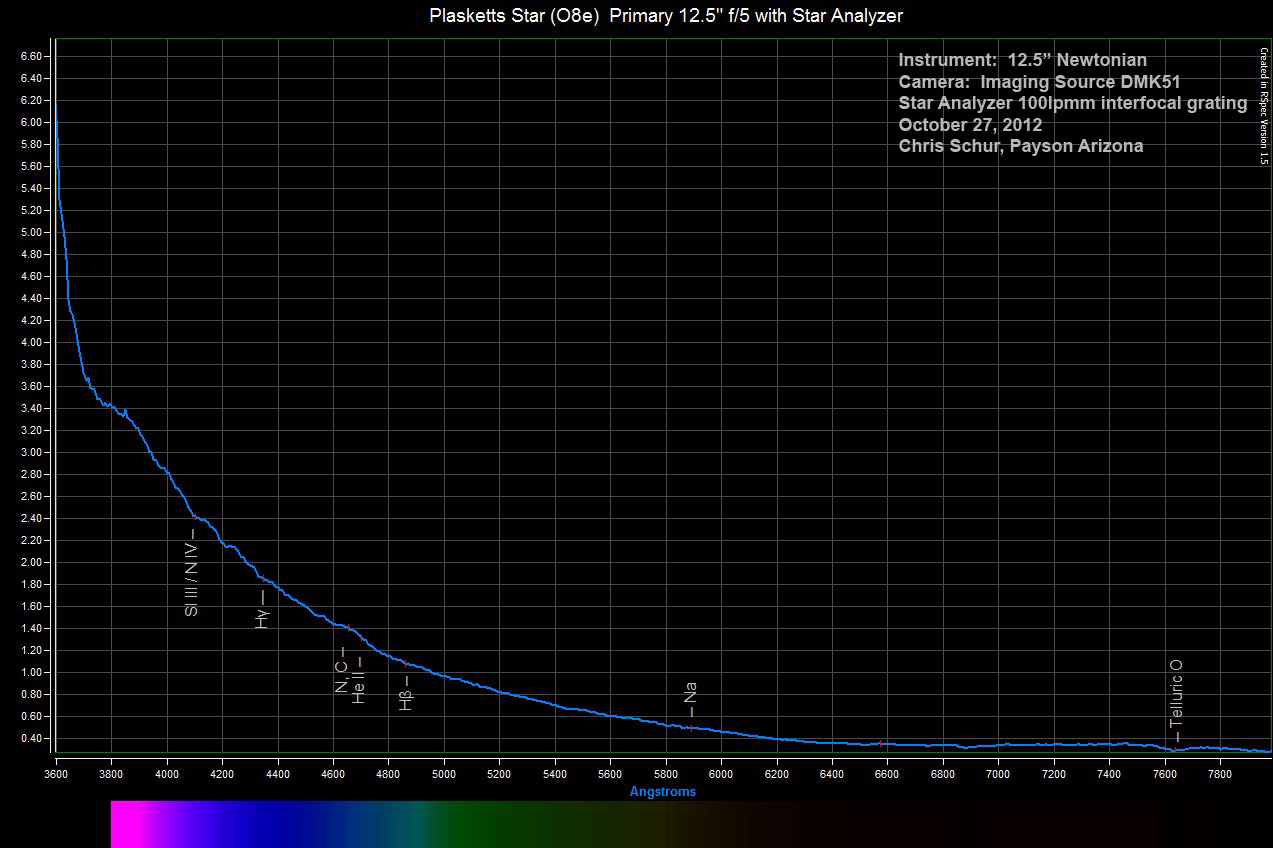

Plasketts Star - O8e
Instrument Calibrated Response

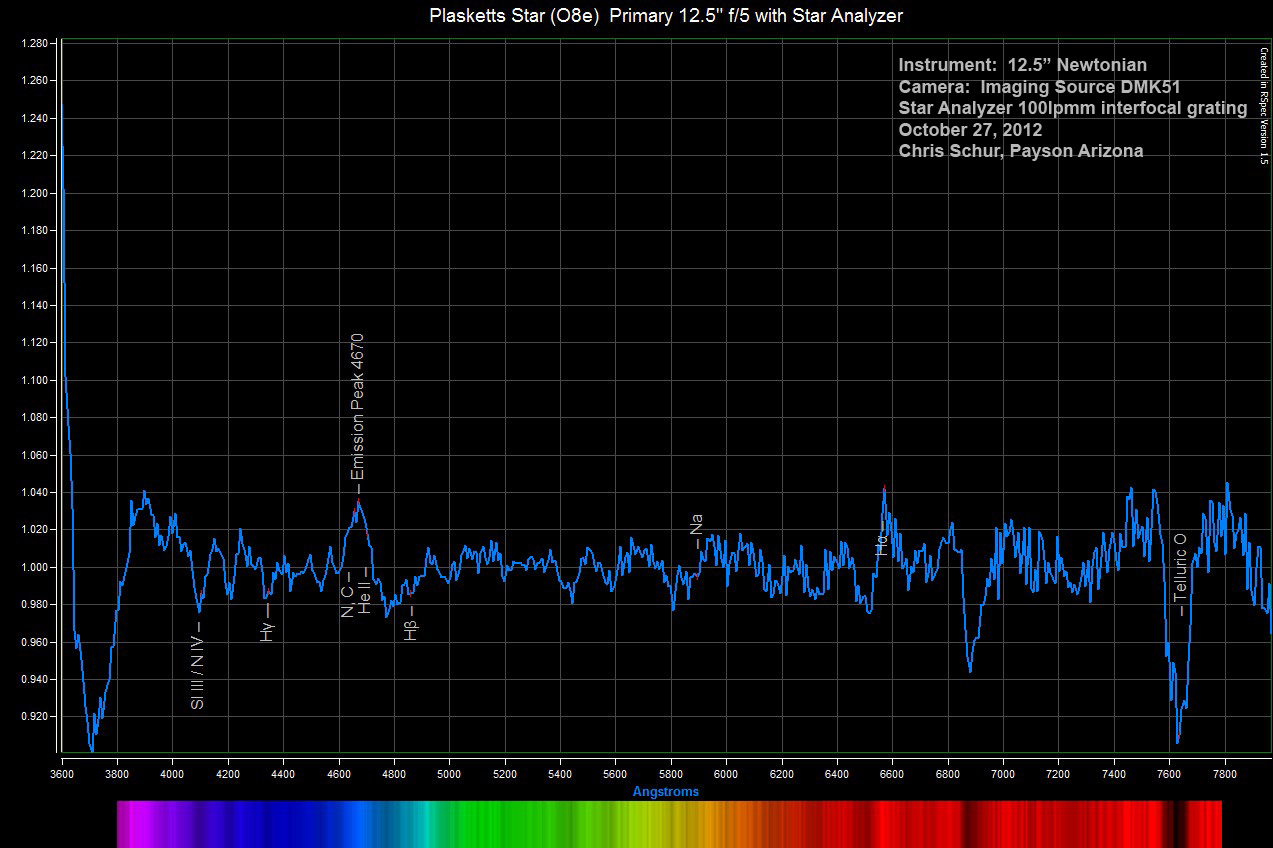

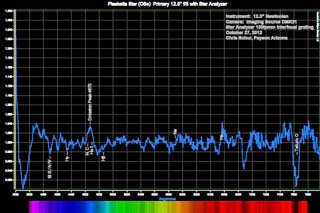

Plasketts Star - O8e
Instrument Calibrated Response Normalized

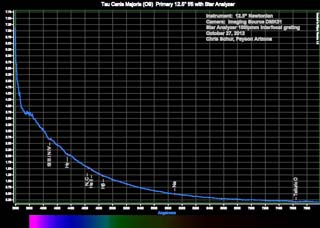

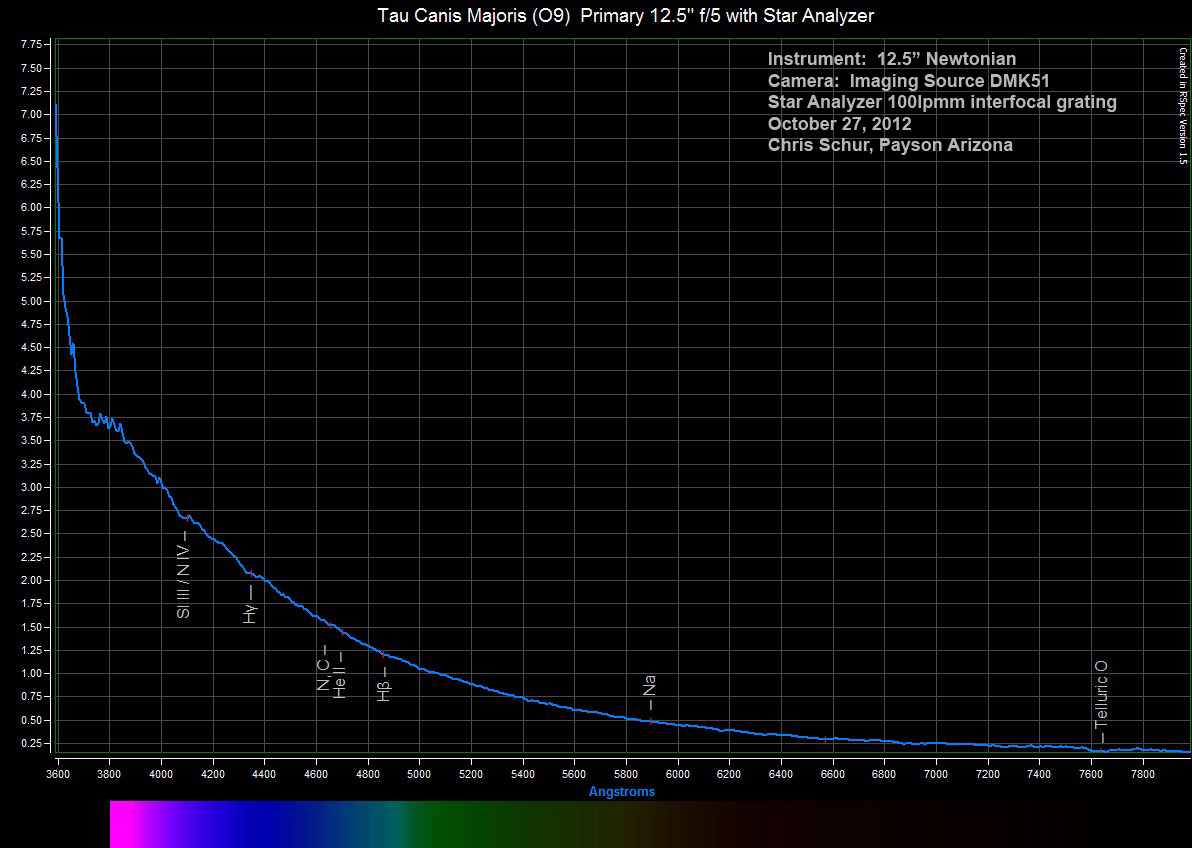

Tau Canis Majoris - O9
Instrument Calibrated Response

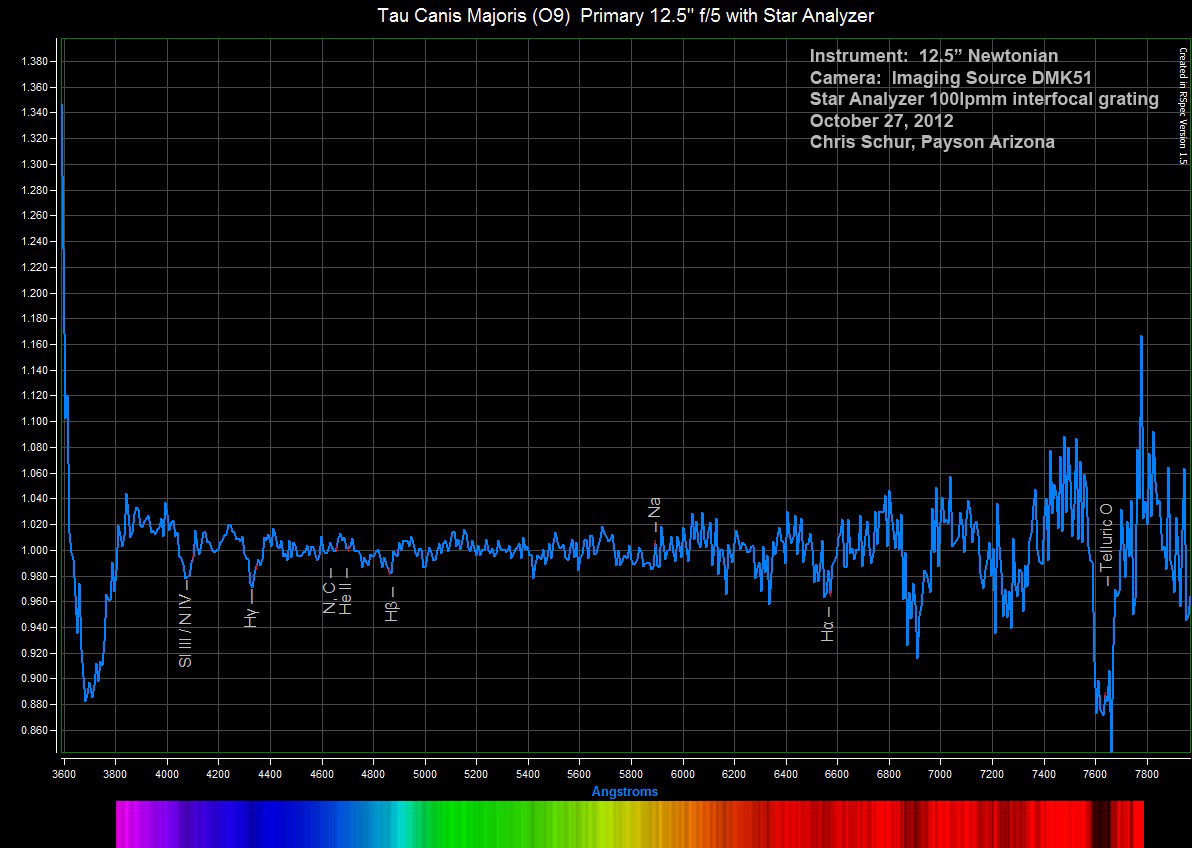

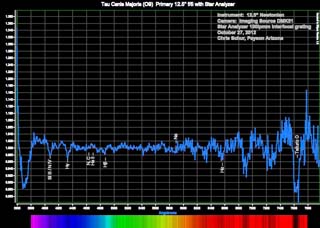

Tau Canis Majoris - O9
Instrument Calibrated Response Normalized


 Class B

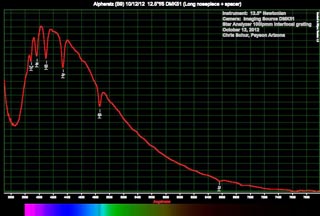

Alpheratz - B9
Instrument Calibrated Response

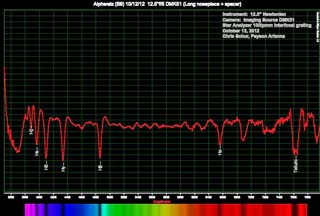

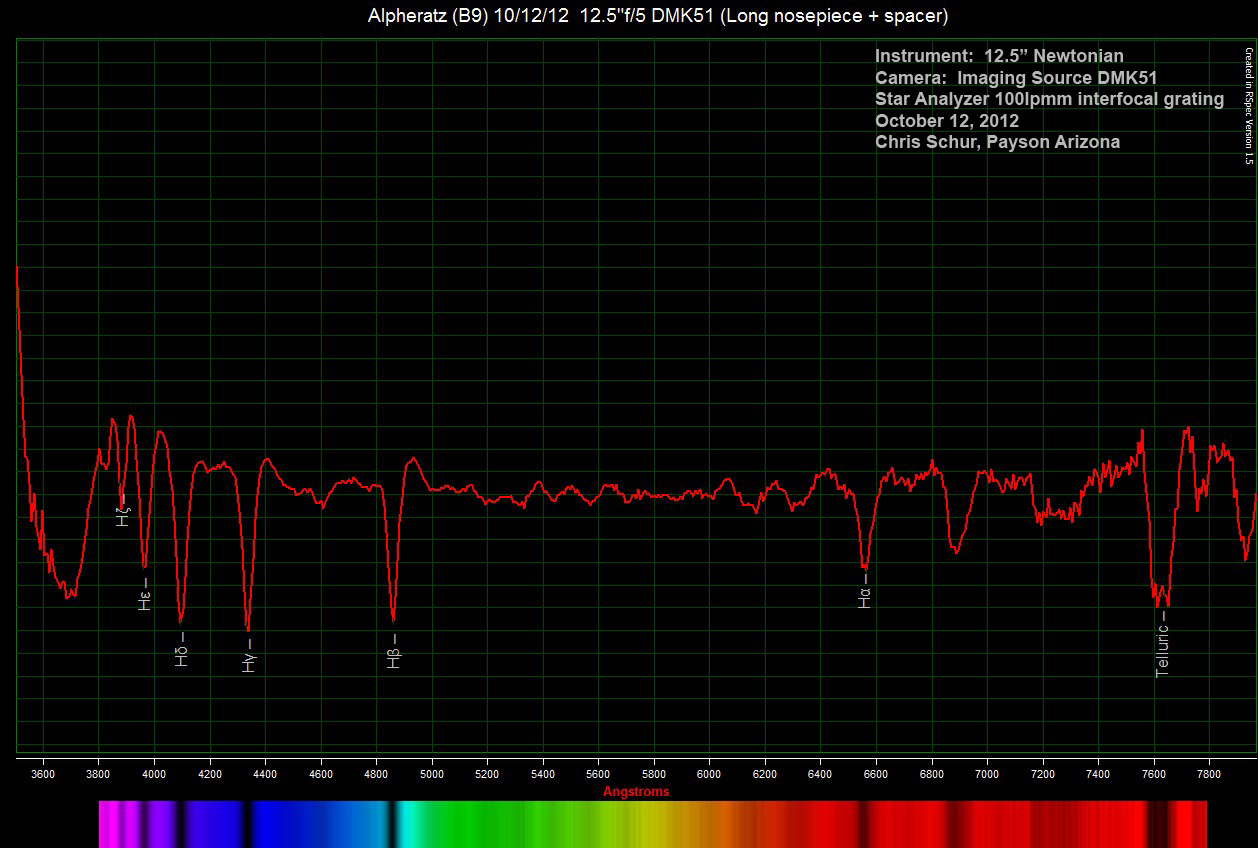

Alpheratz - B9
Instrument Calibrated Response Normalized

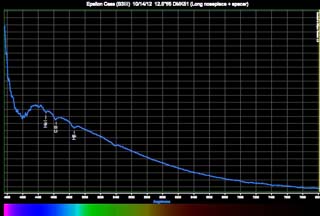

Epsilon Cassiopiea - B2p
Instrument Calibrated Response

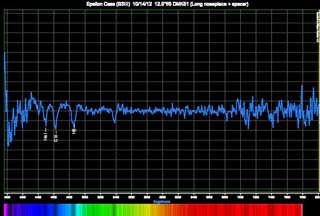

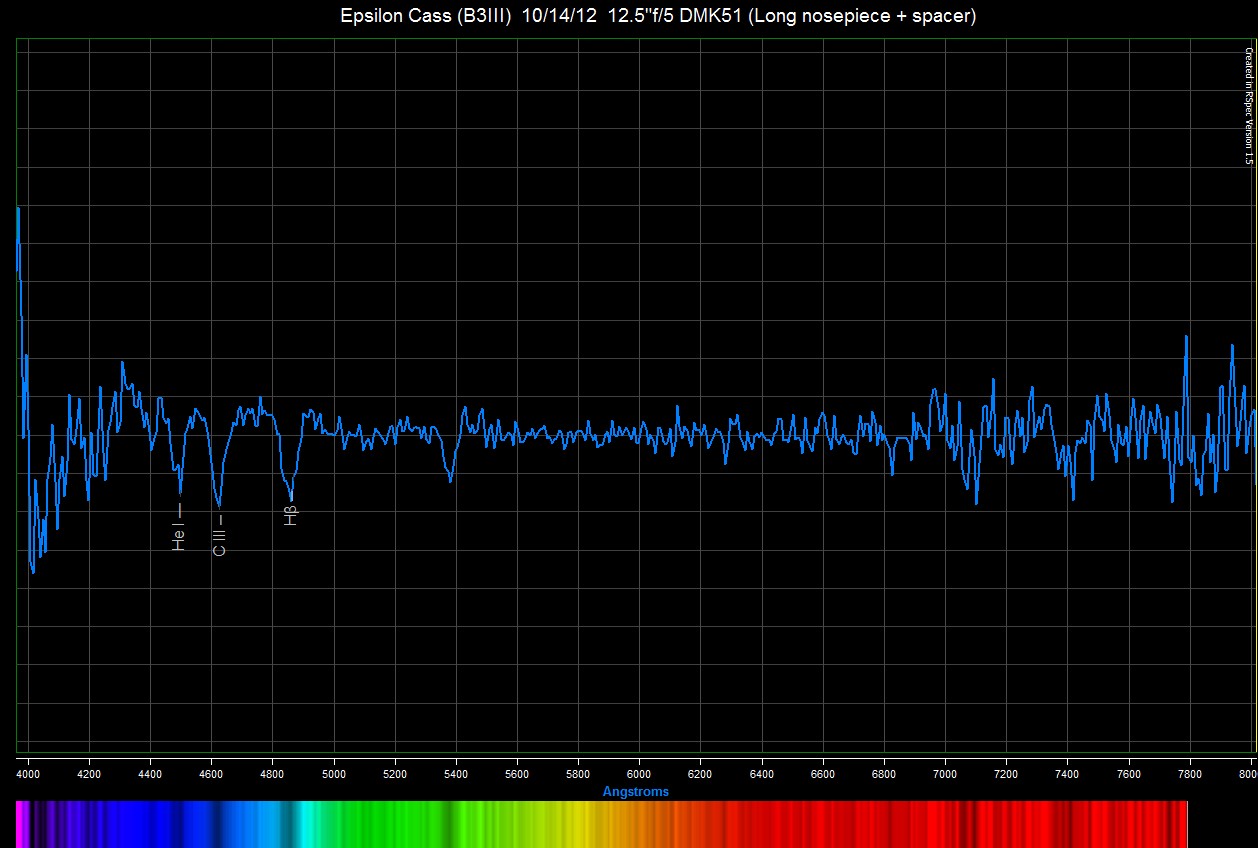

Epsilon Cassiopiea - B2p
Instrument Calibrated Response Normalized



Gamma Cassiopiea - B0
Instrument Calibrated Response



Epsilon Cassiopiea - B2p
This is with Vspec
Instrument Calibrated Response


 Class A

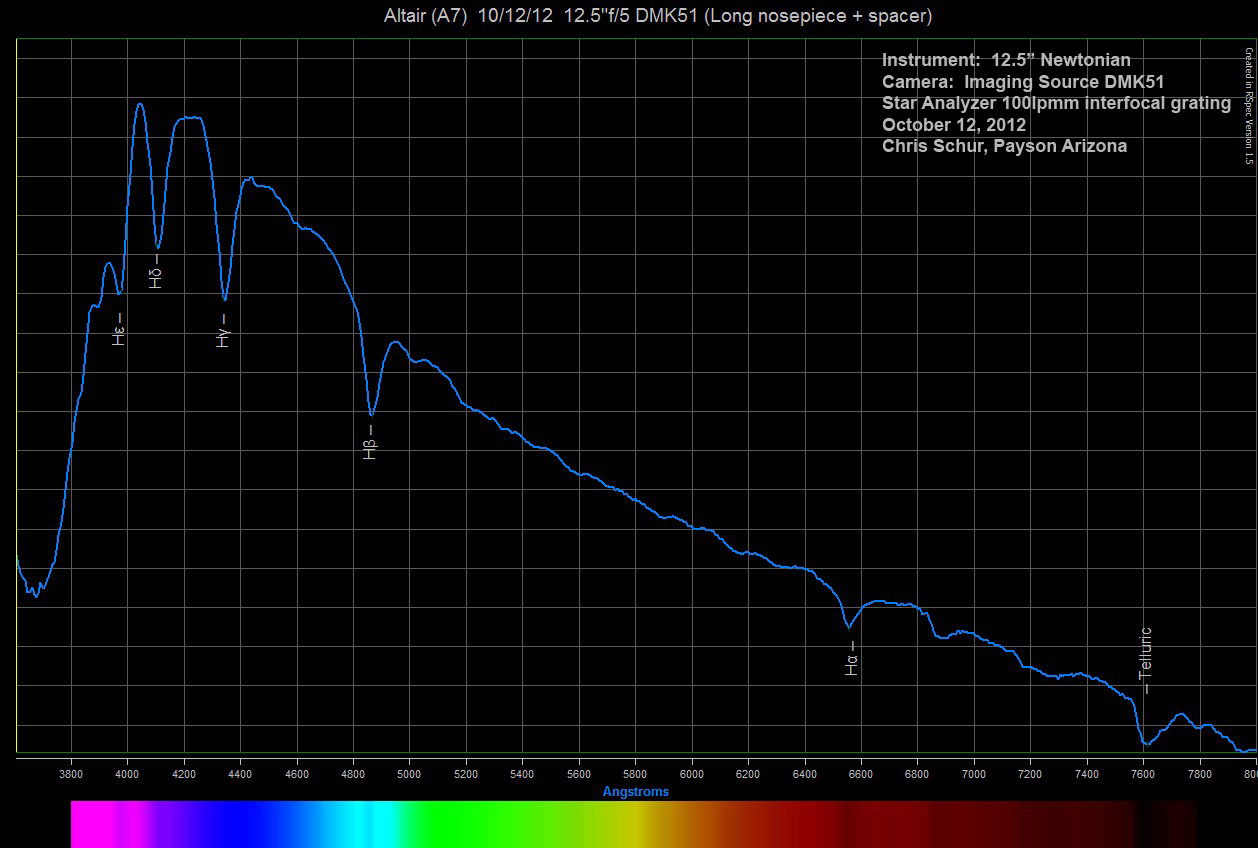

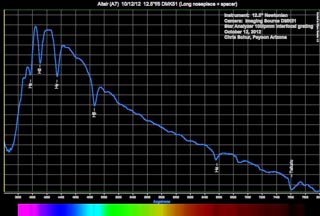

Altair - A7
Instrument Calibrated Response

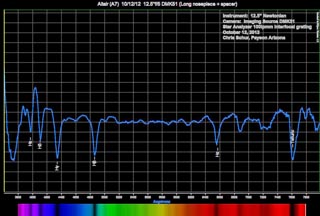

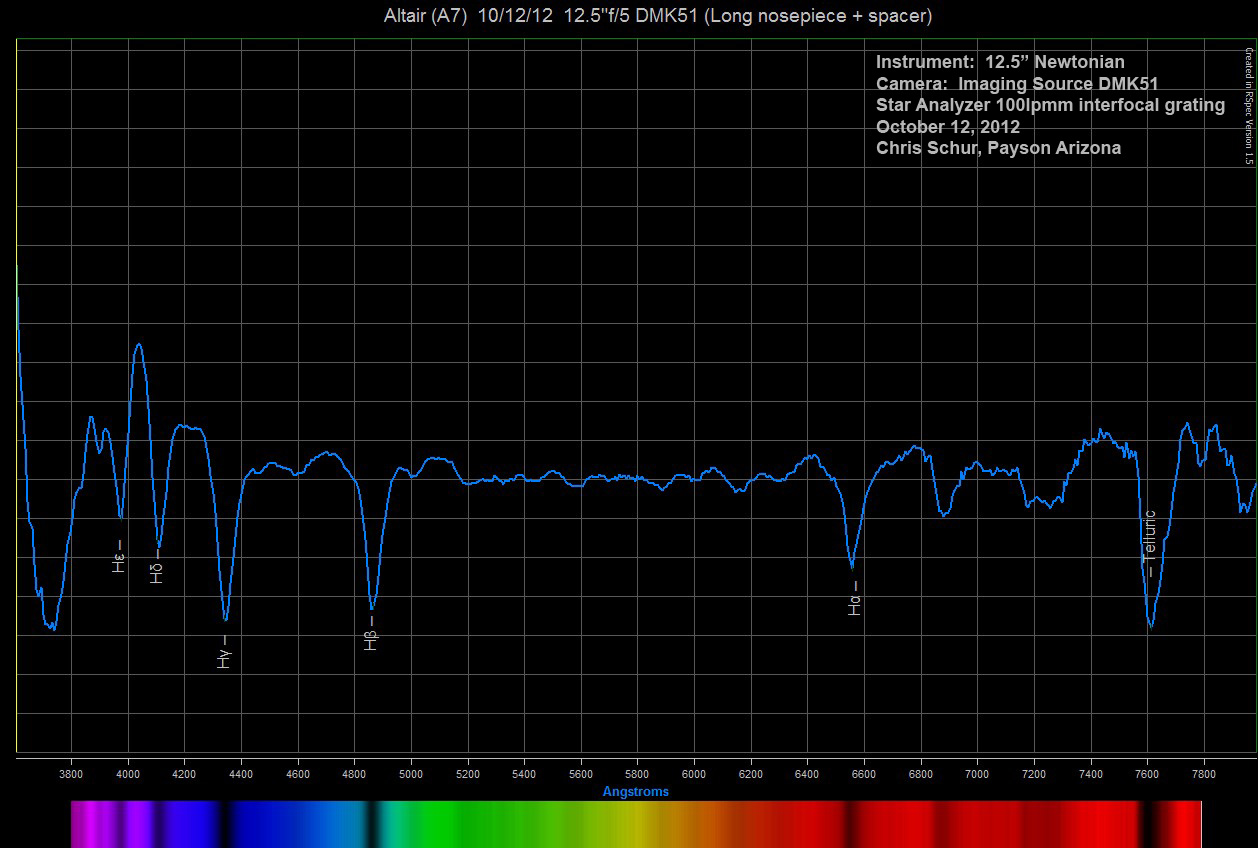

Altair - A7
Instrument Calibrated Response Normalized

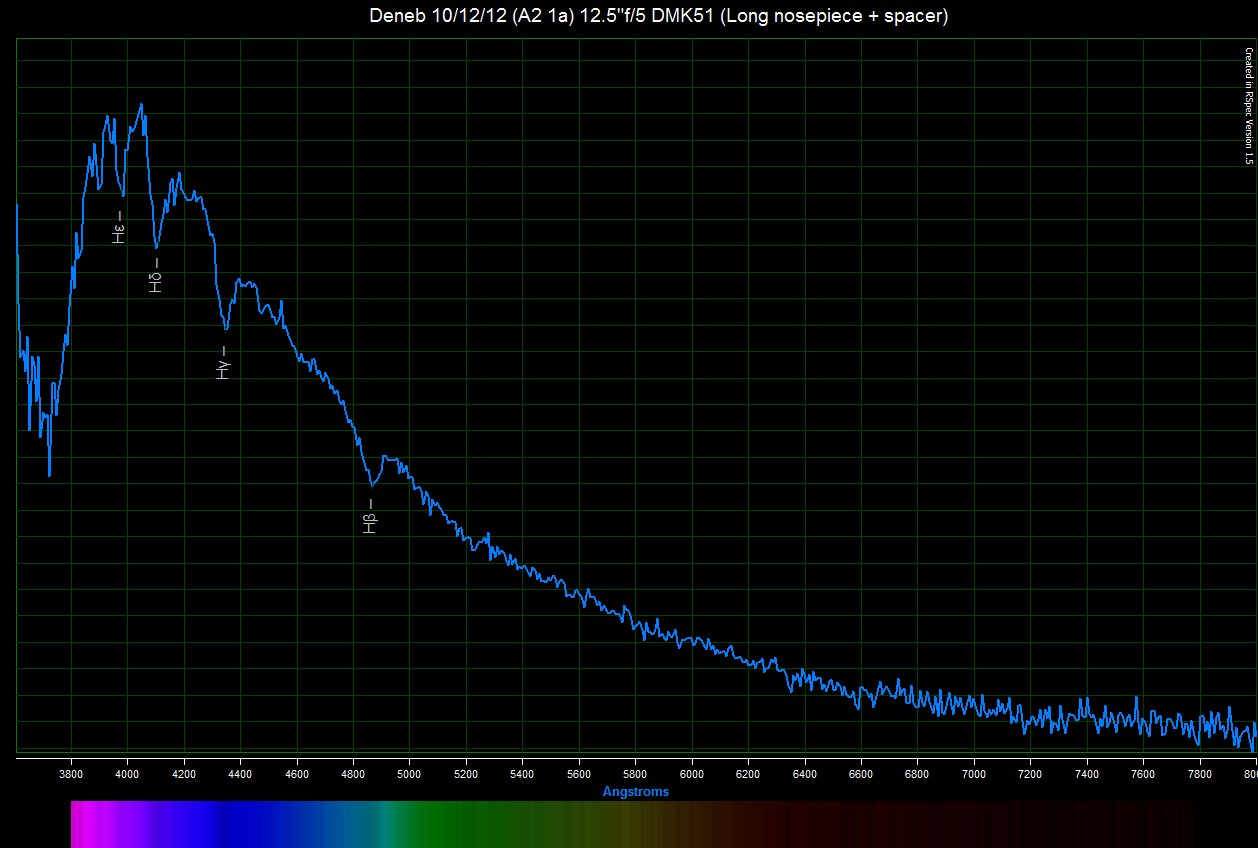

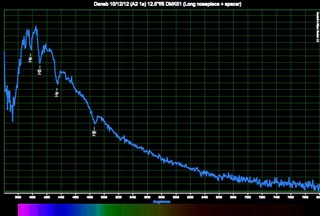

Deneb - A2
Instrument Calibrated Response

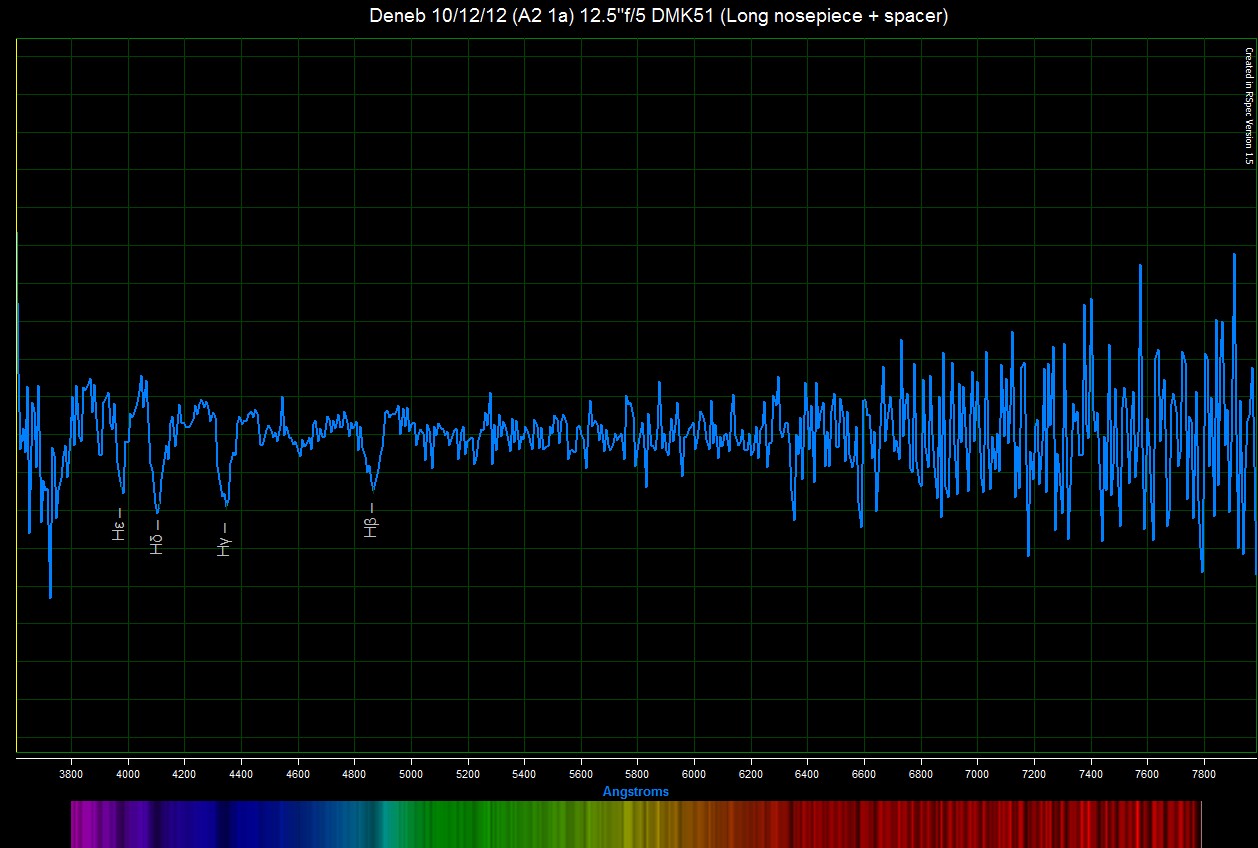

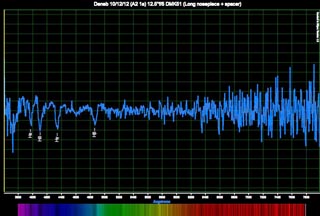

Deneb - A2
Instrument Calibrated Response Normalized

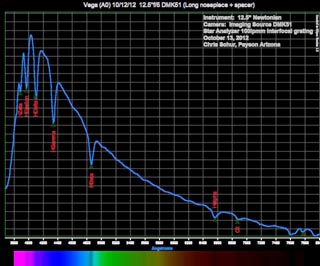

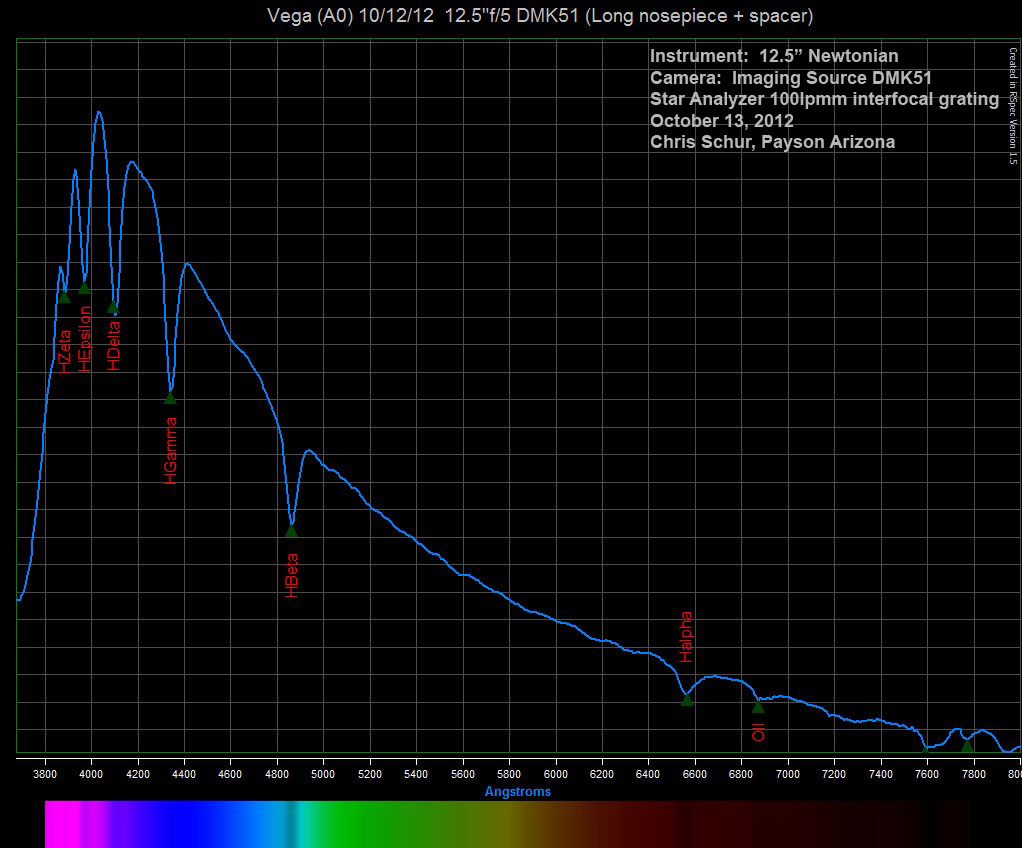

Vega - A0
Instrument Calibrated Response

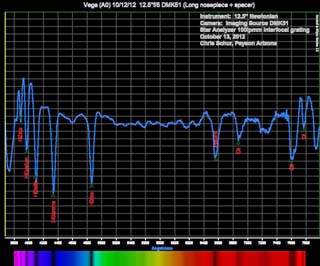

Vega - A0
Instrument Calibrated Response Normalized





Delta Cass - A5
Instrument Calibrated Response

 Class F

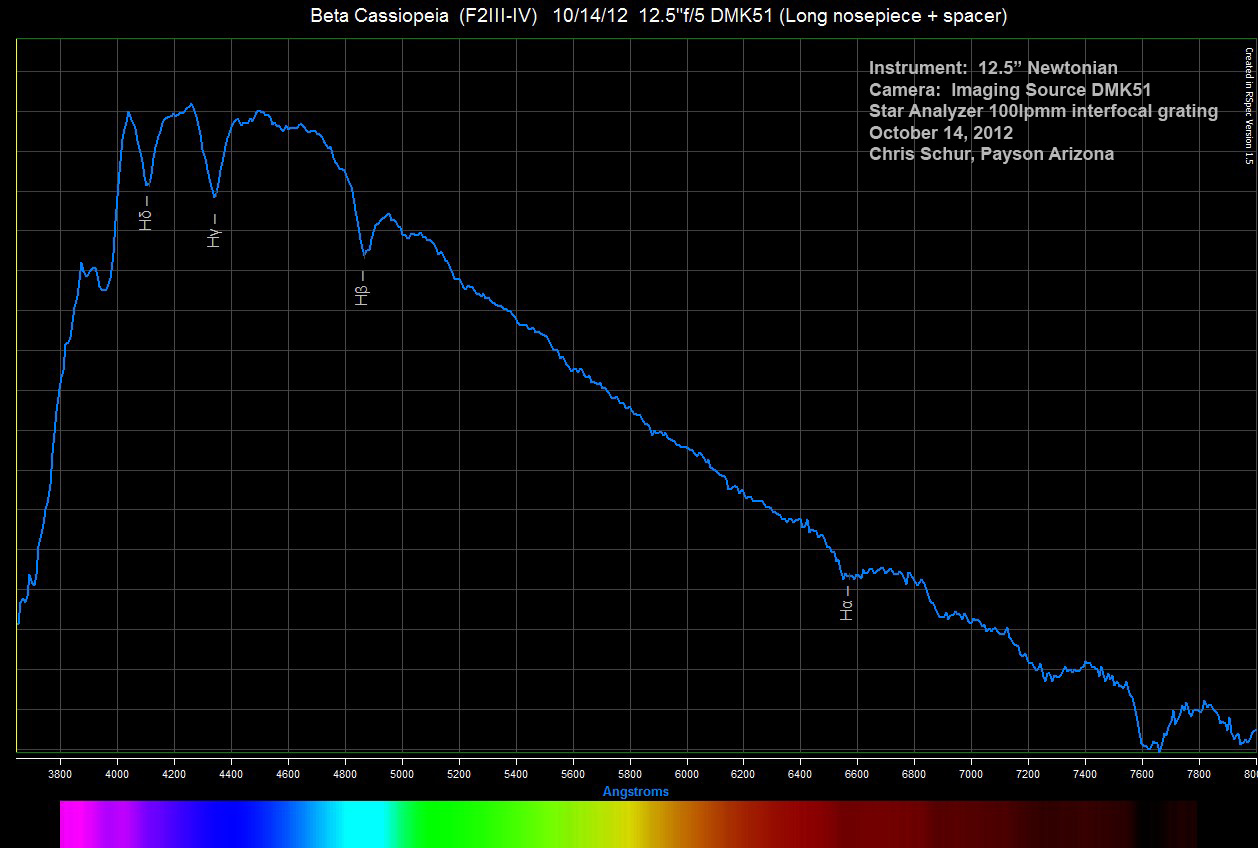

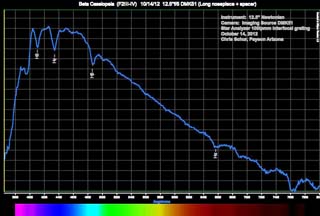

Beta Cass - F2
Instrument Calibrated Response

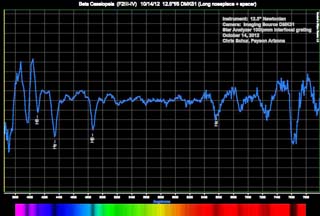

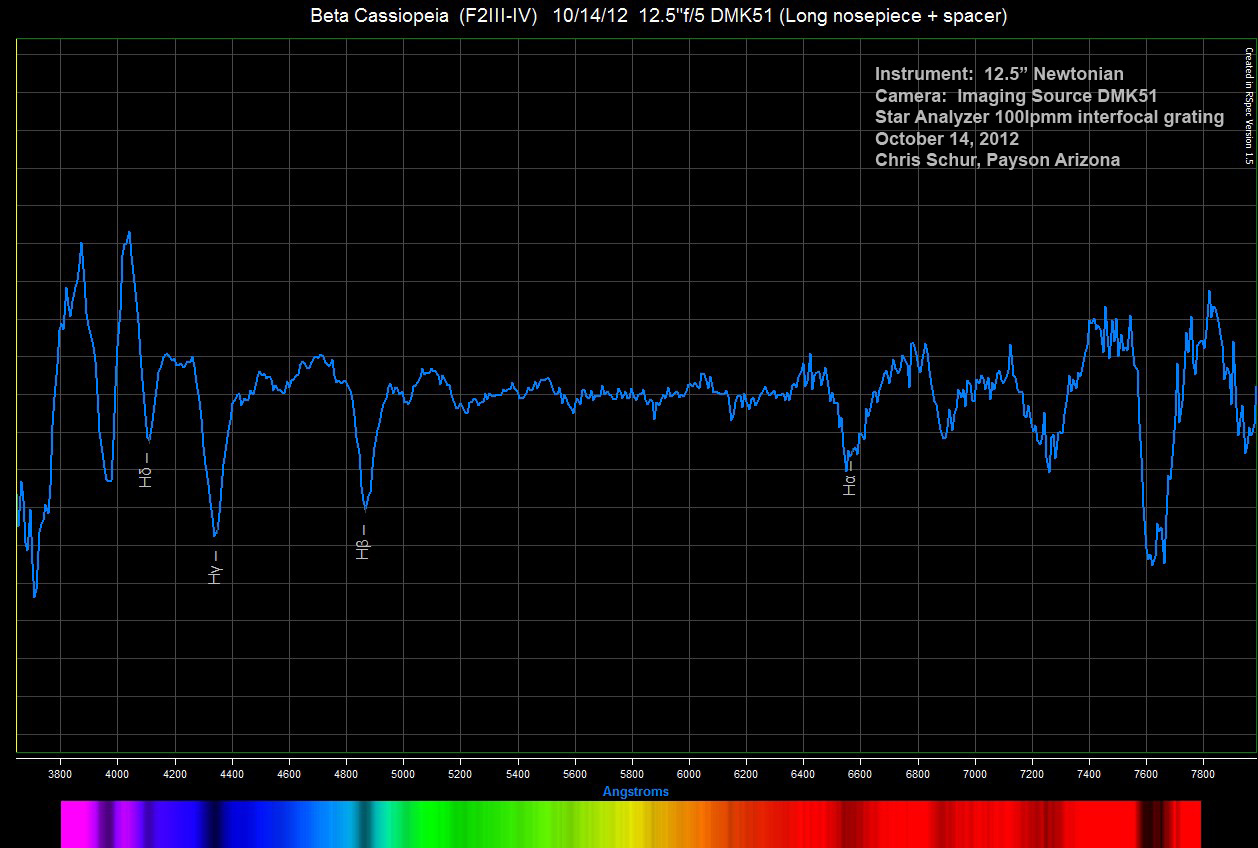

Beta Cass - F2
Instrument Calibrated Response Normalized

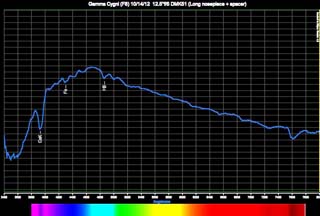

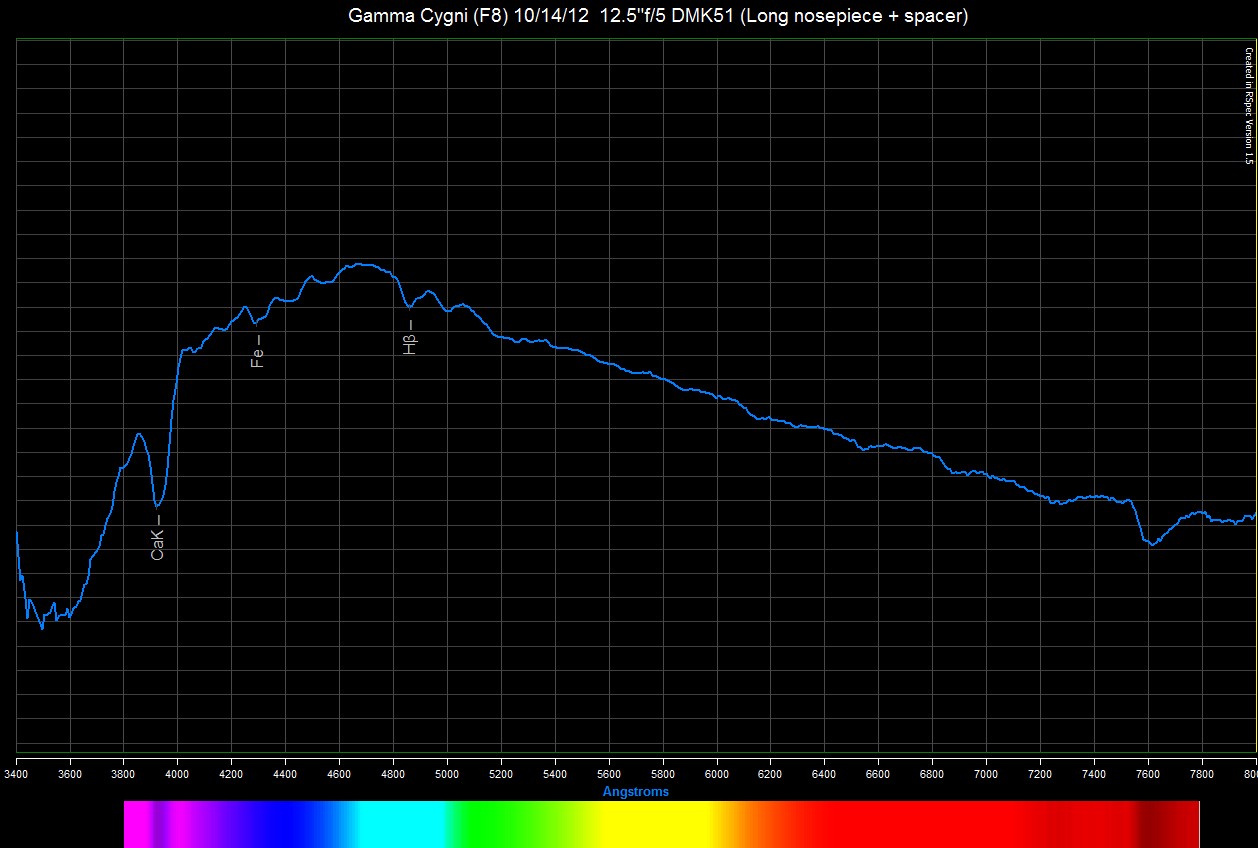

Gamma Cygni - F8
Instrument Calibrated Response

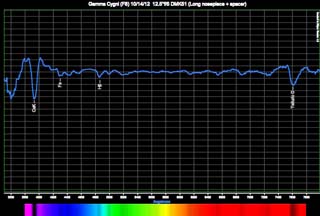

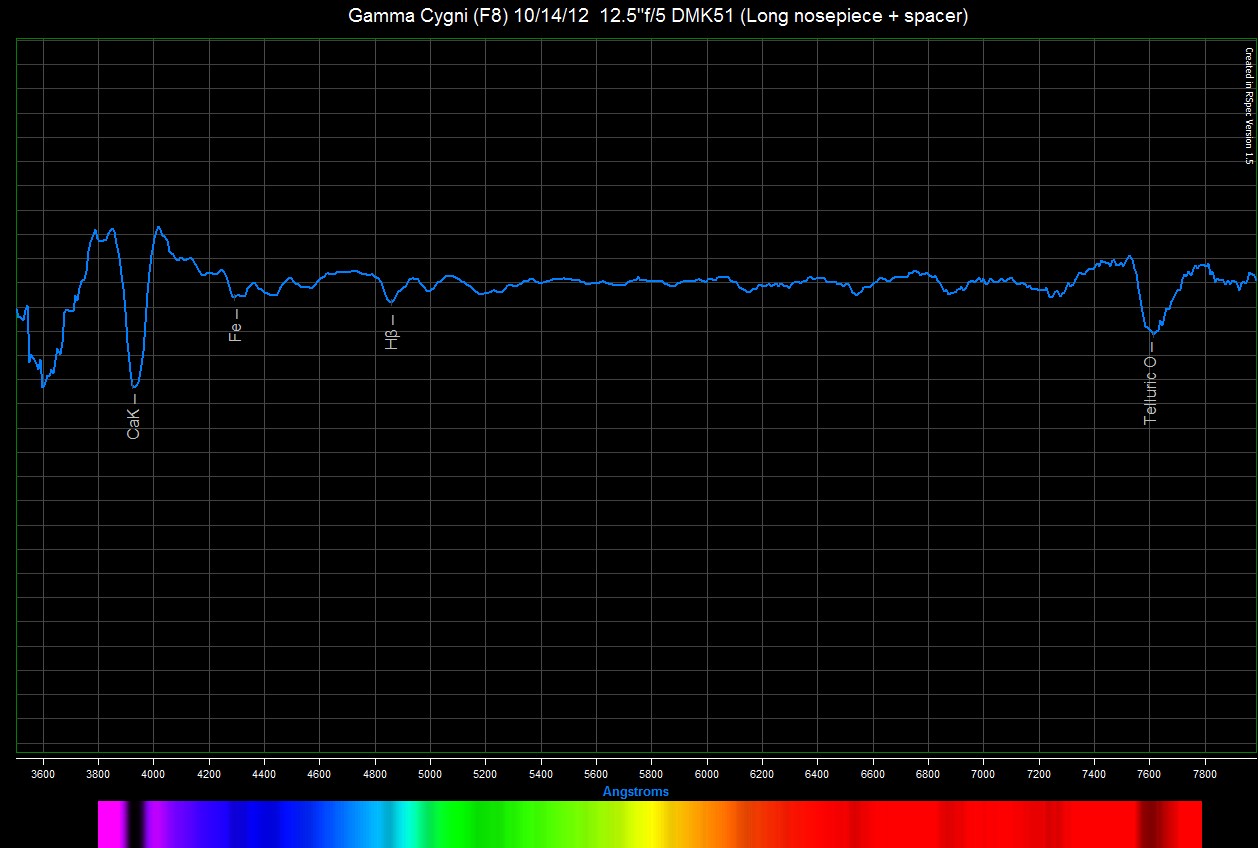

Gamma Cygni - F8
Instrument Calibrated Response Normalized



 Class G




Eta Pegasi - G2
Instrument Calibrated Response

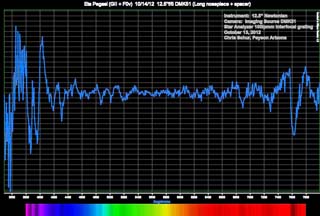

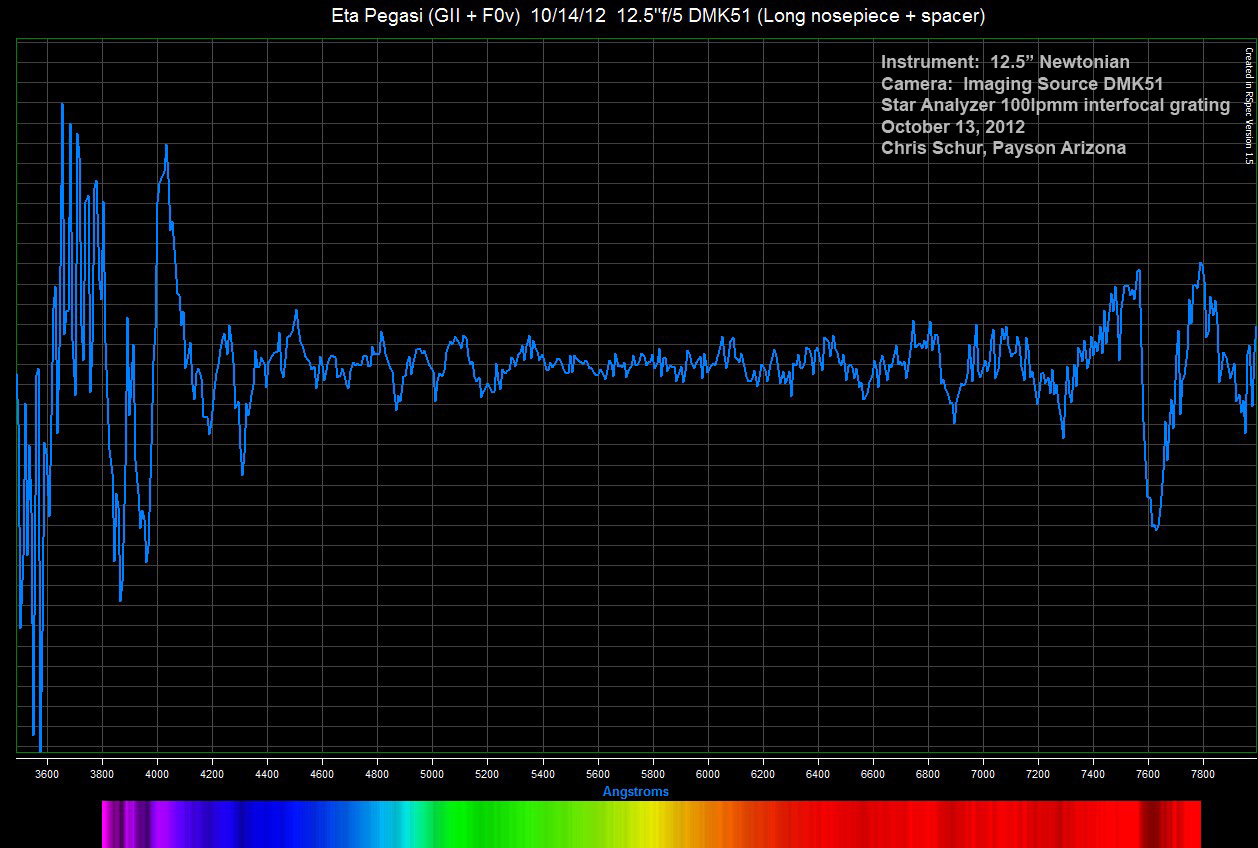

Eta Pegasi - G2
Instrument Calibrated Response Normalized

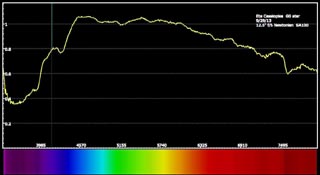

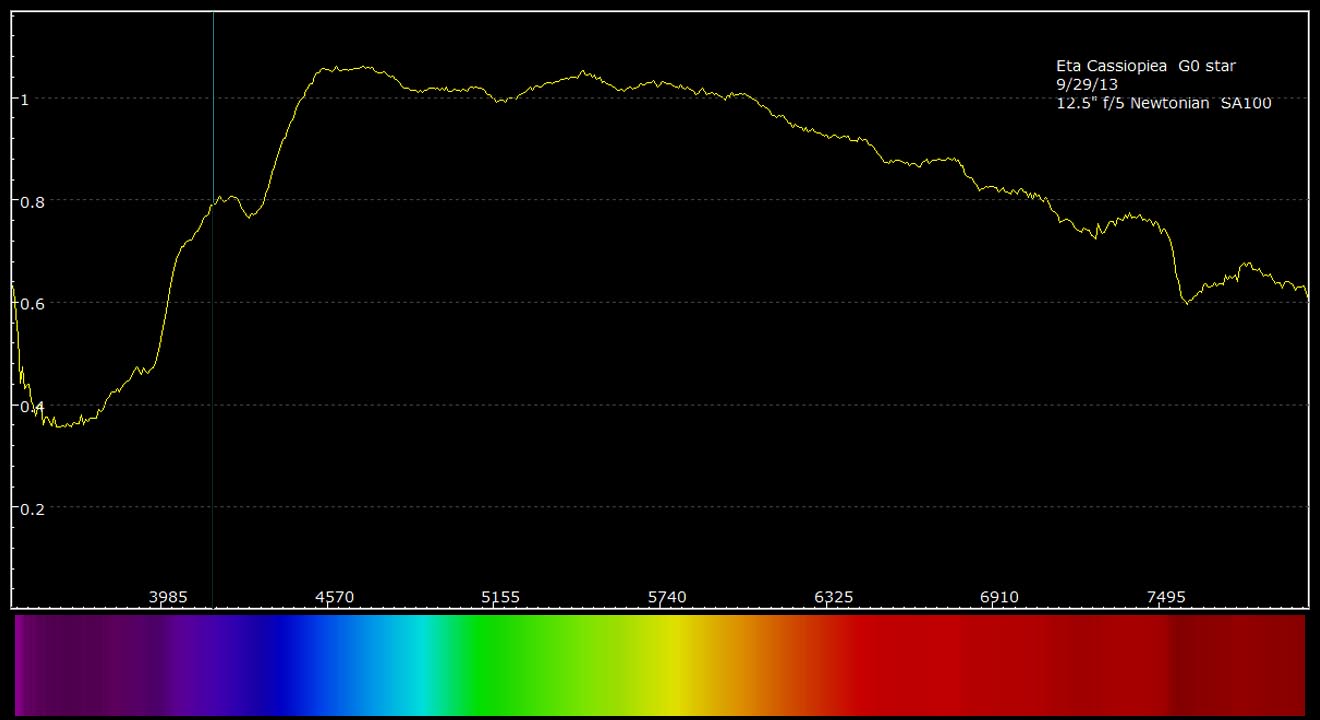

Eta Cass - G0
Instrument Calibrated Response


  Class K

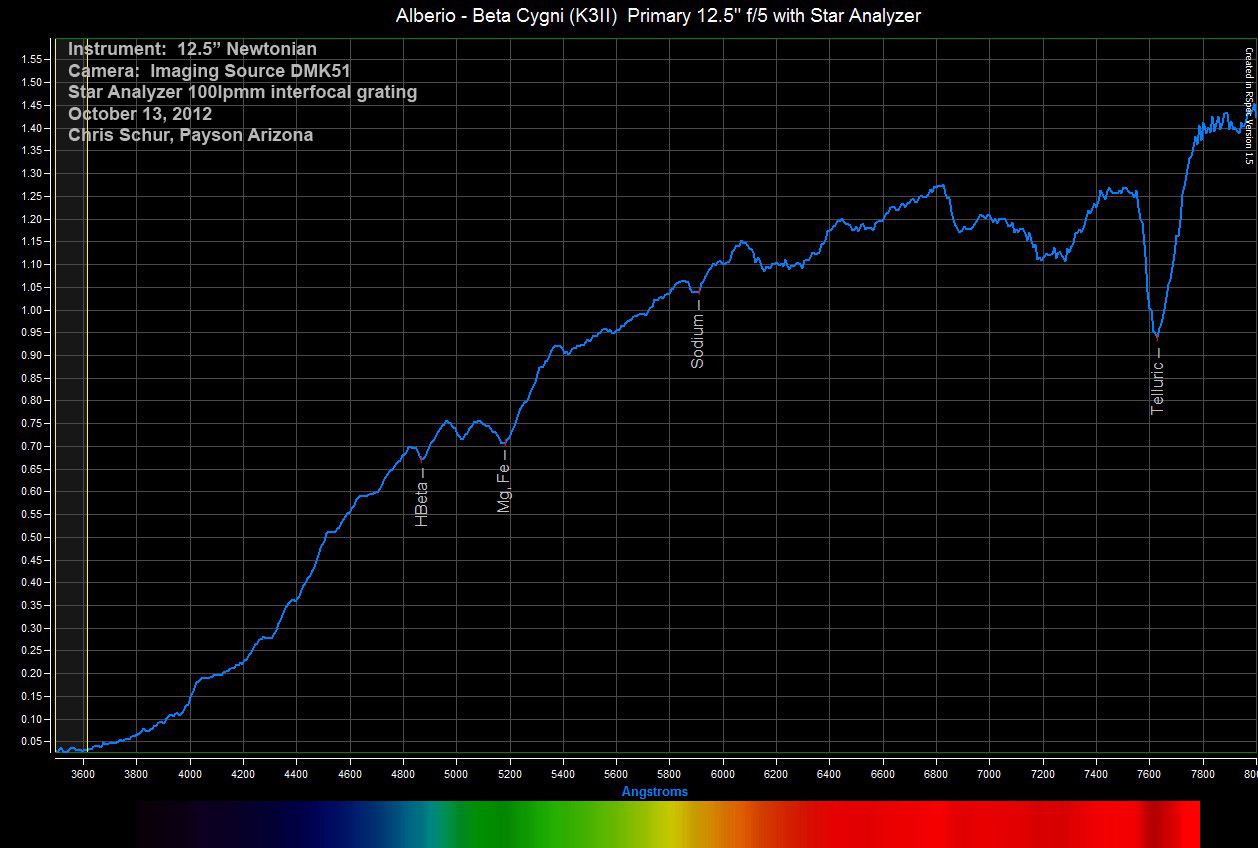

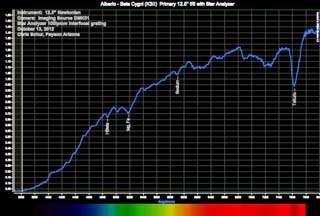

Alberio - K3
Instrument Calibrated Response

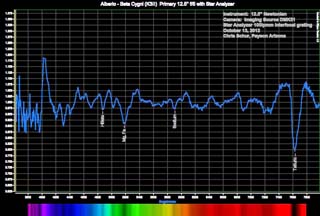

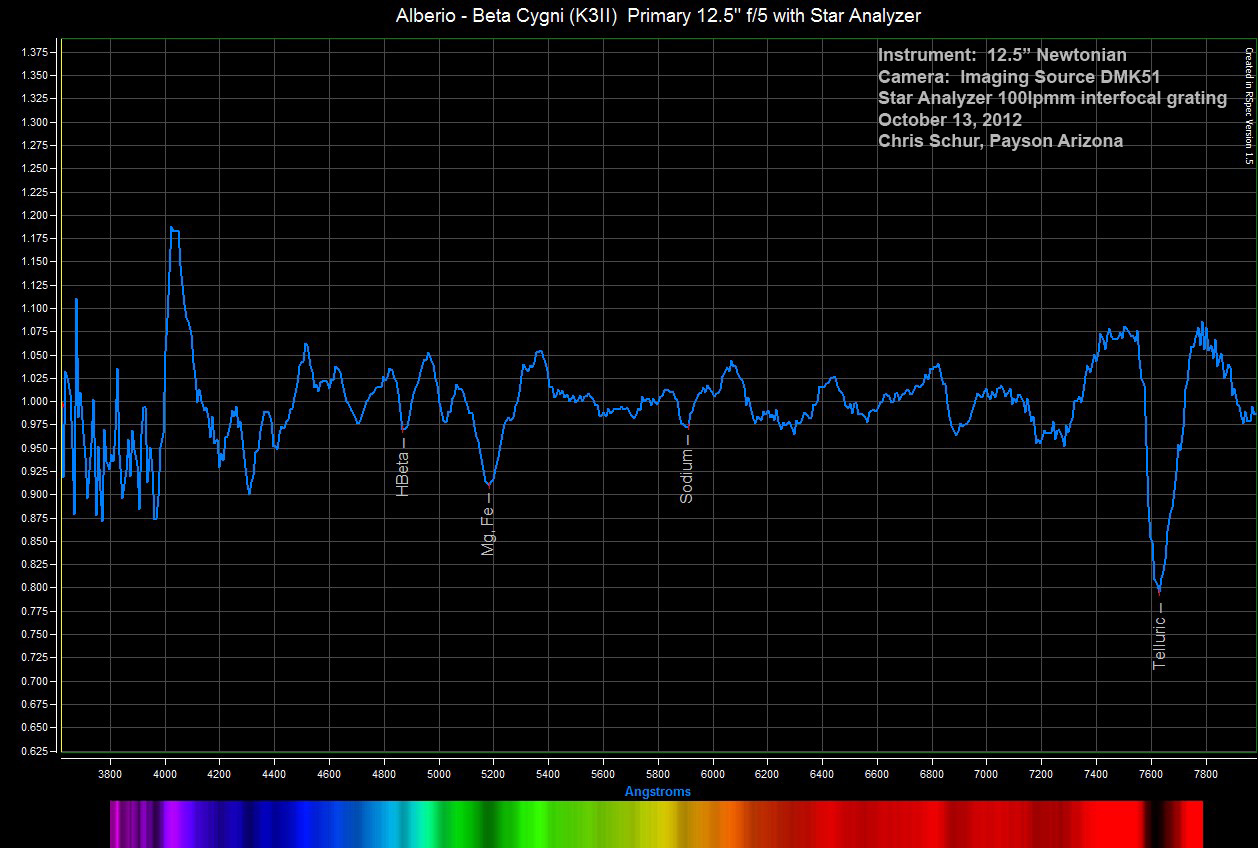

Alberio - K3
Instrument Calibrated Response Normalized

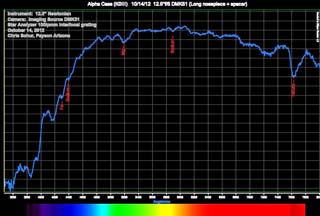

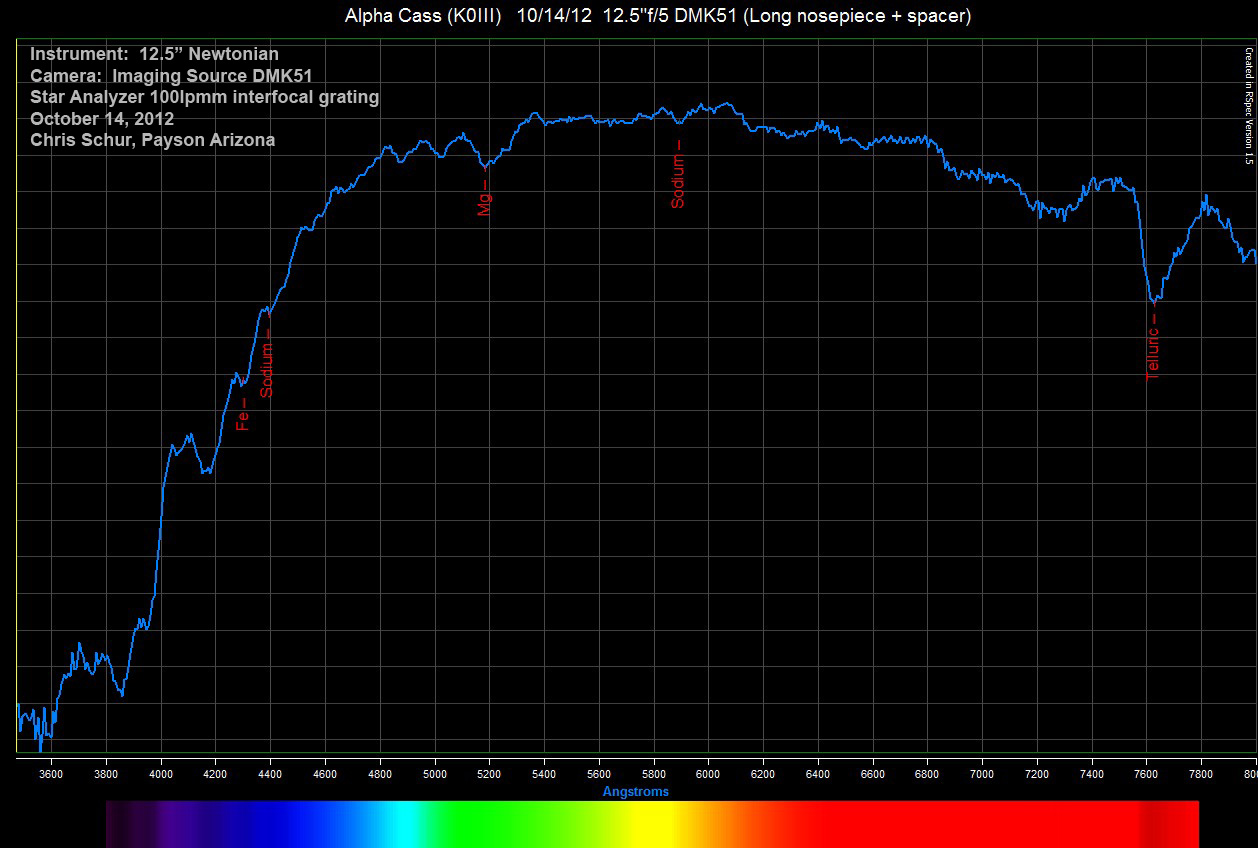

Alpha Cass - K0
Instrument Calibrated Response

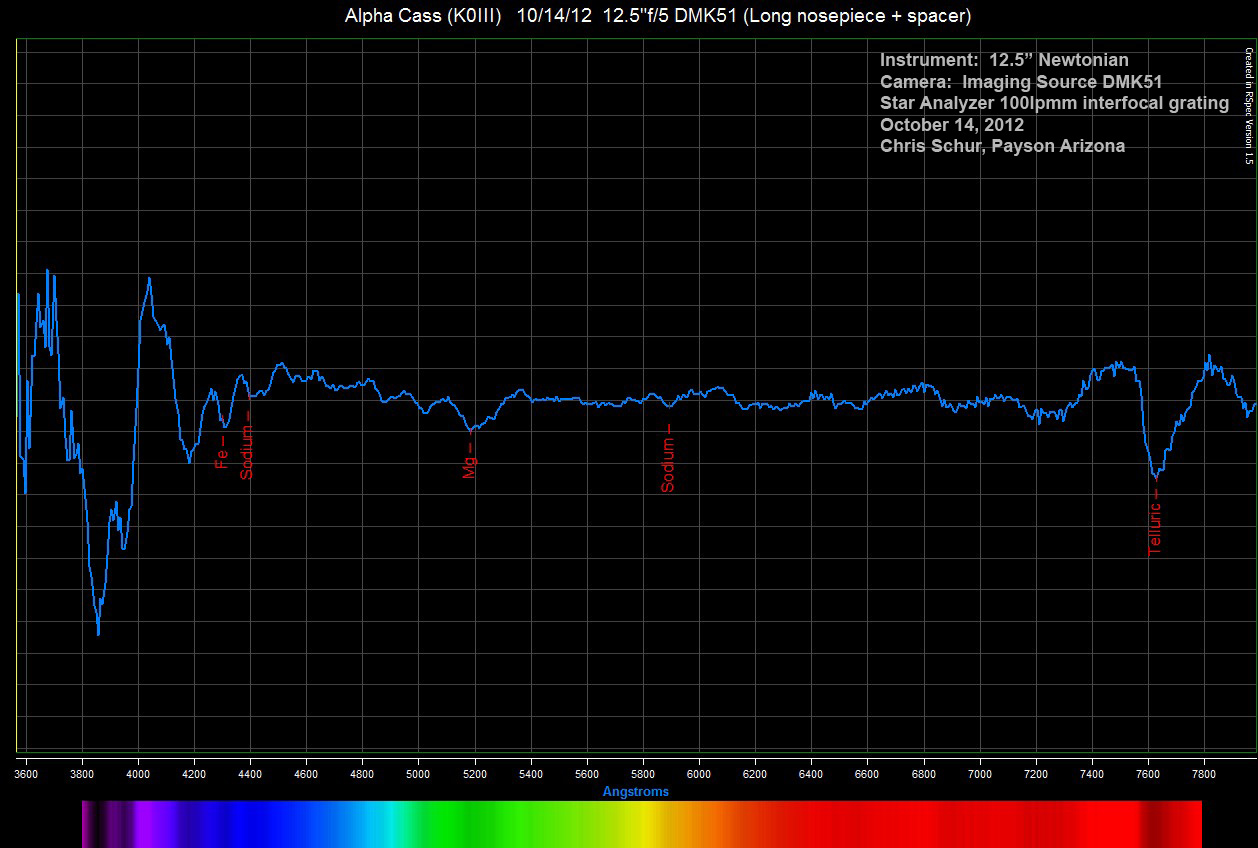

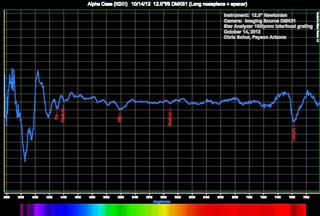

Alpha Cass - K0
Instrument Calibrated Response Normalized

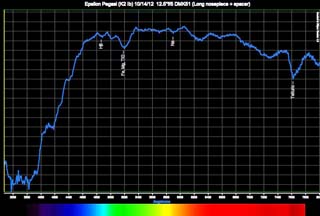

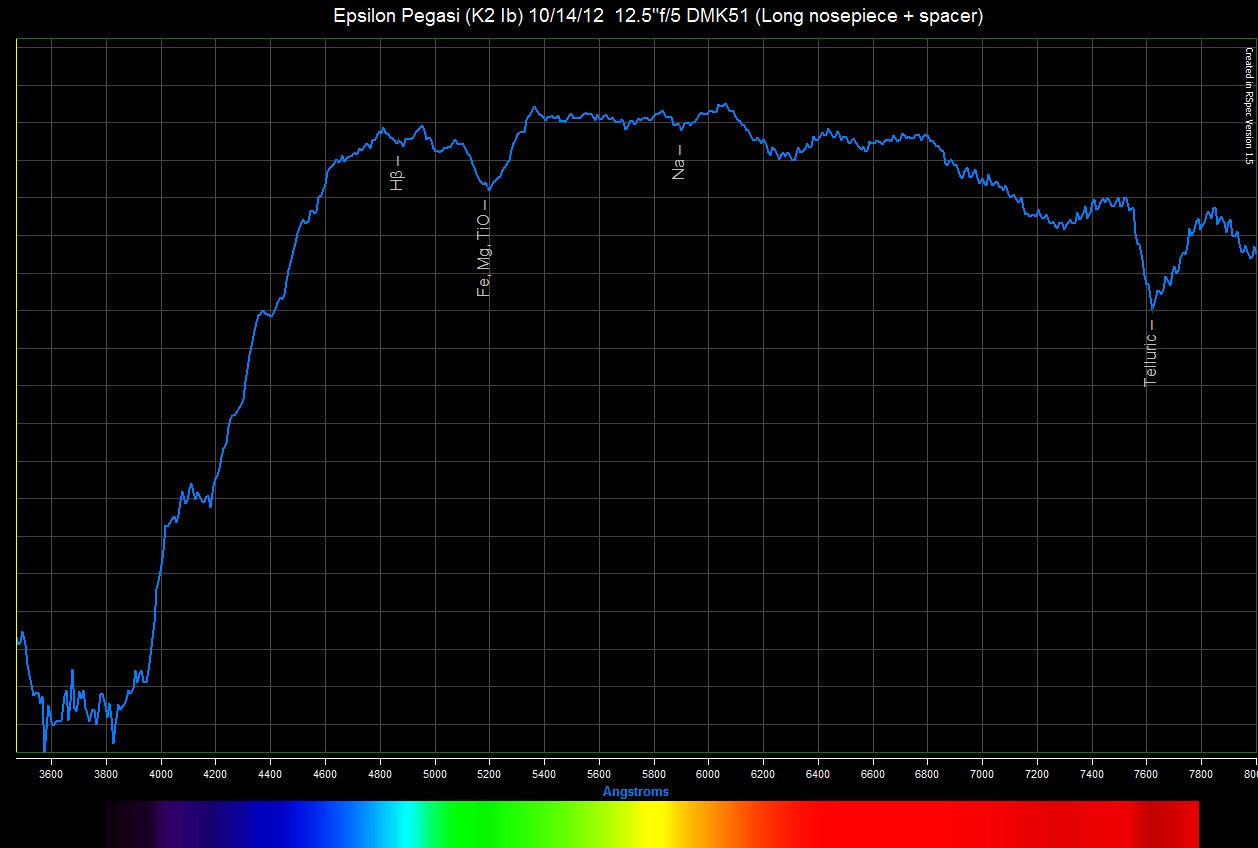

Epsilon Pegasi - K2
Instrument Calibrated Response

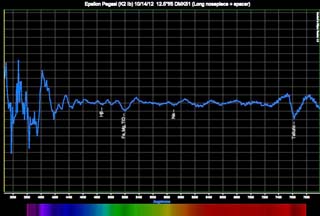

Epsilon Pegasi - K2
Instrument Calibrated Response Normalized

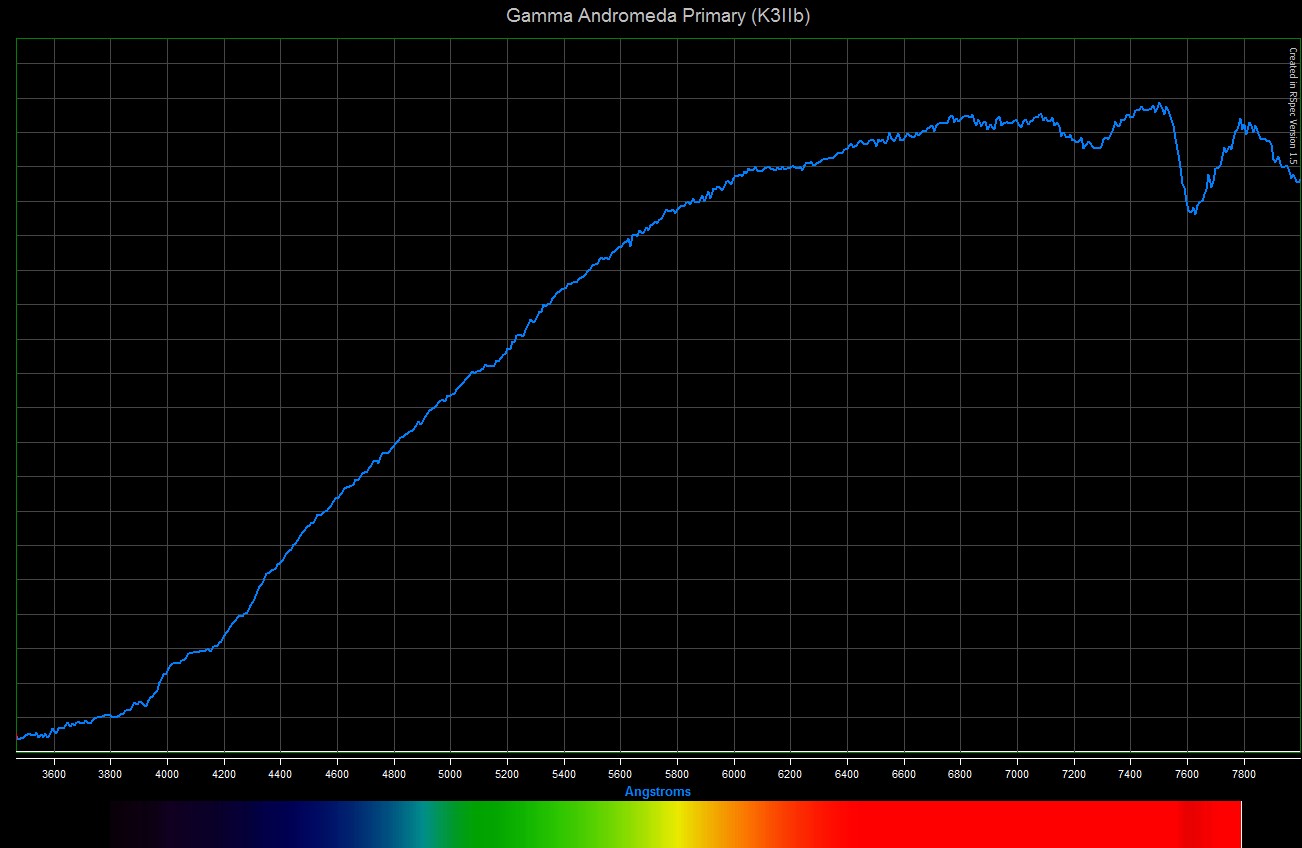

Gamma And - K3 IIb
Instrument Calibrated Response

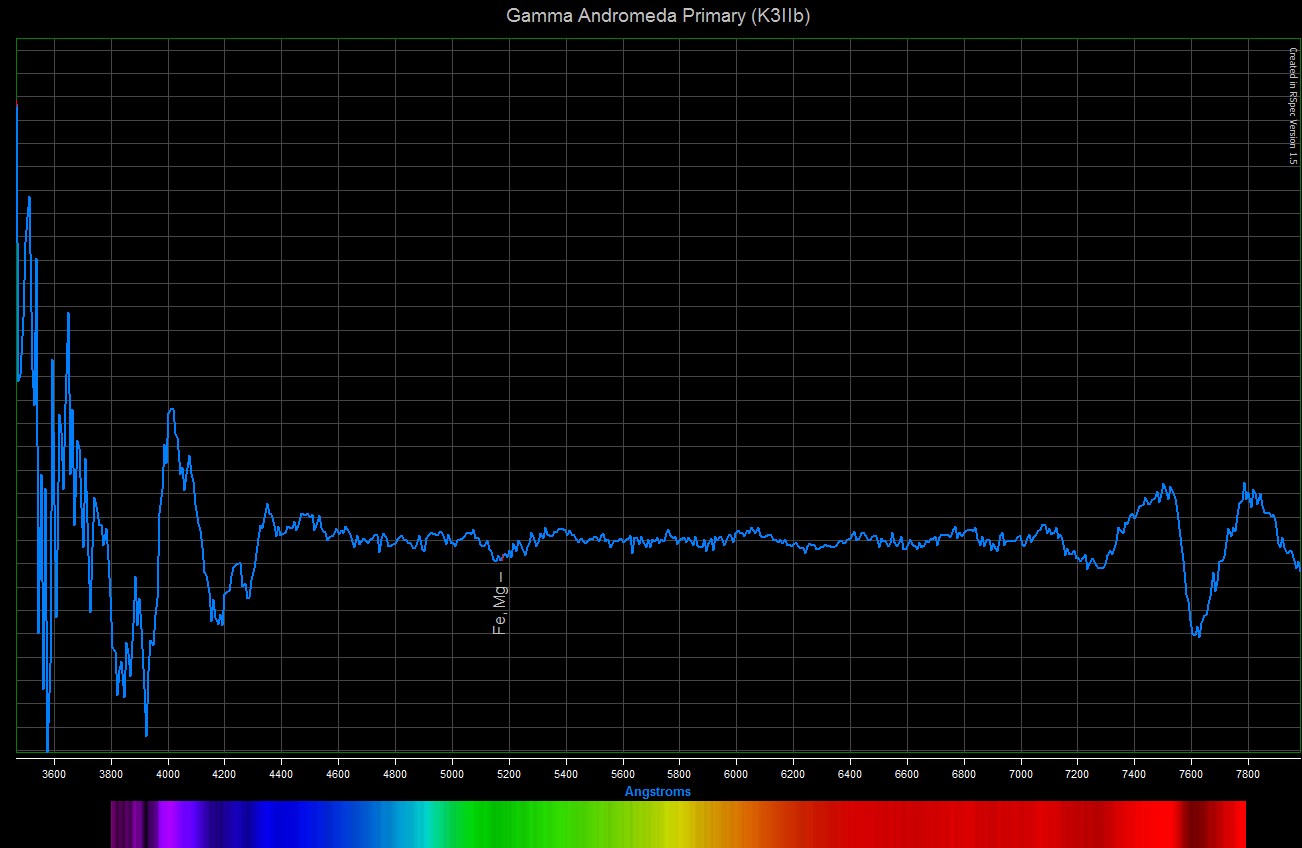

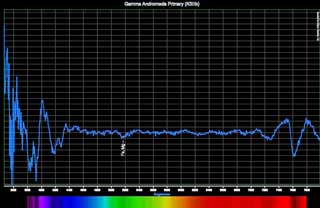

Gamma And - K3 IIb
Instrument Calibrated Response Normalized

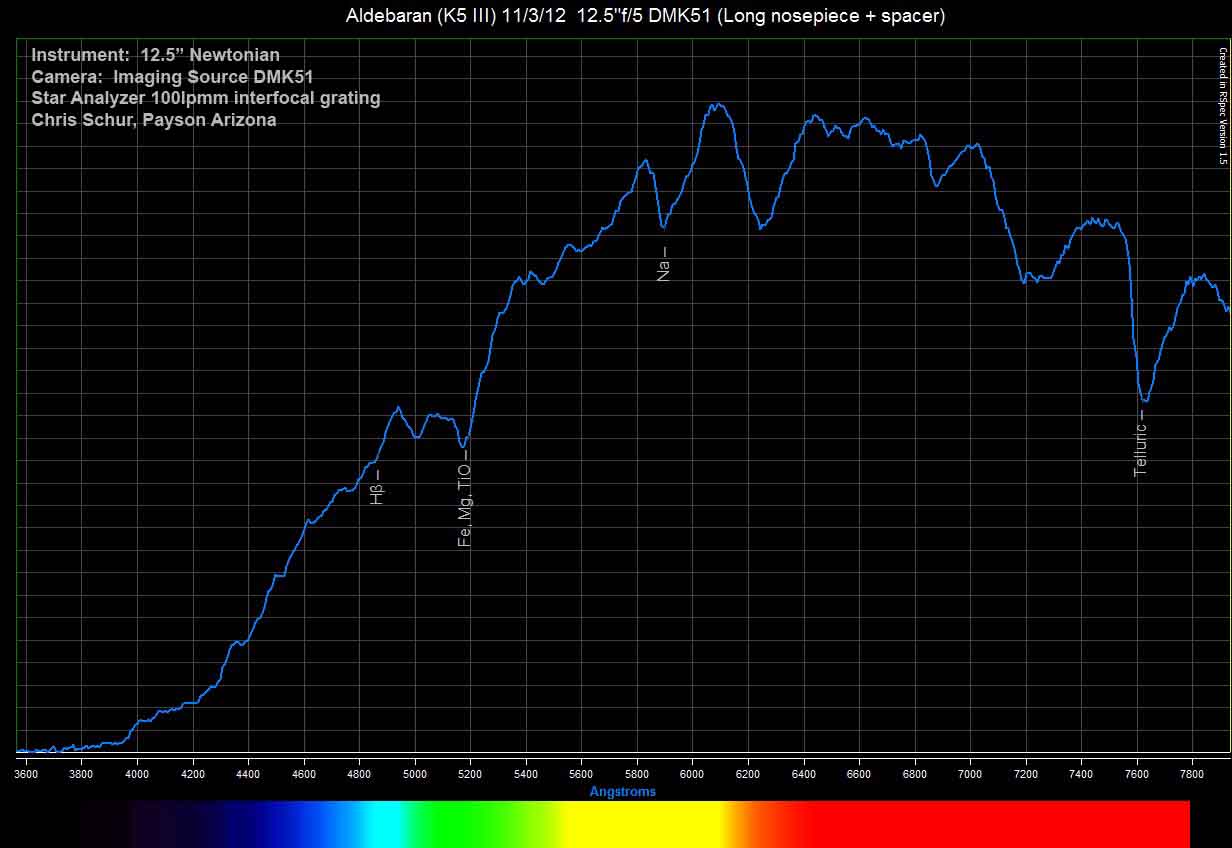

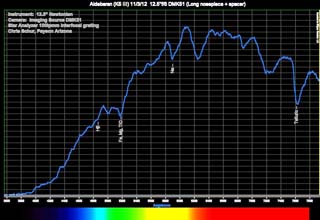

Aldebaran - K5 III
Instrument Calibrated Response

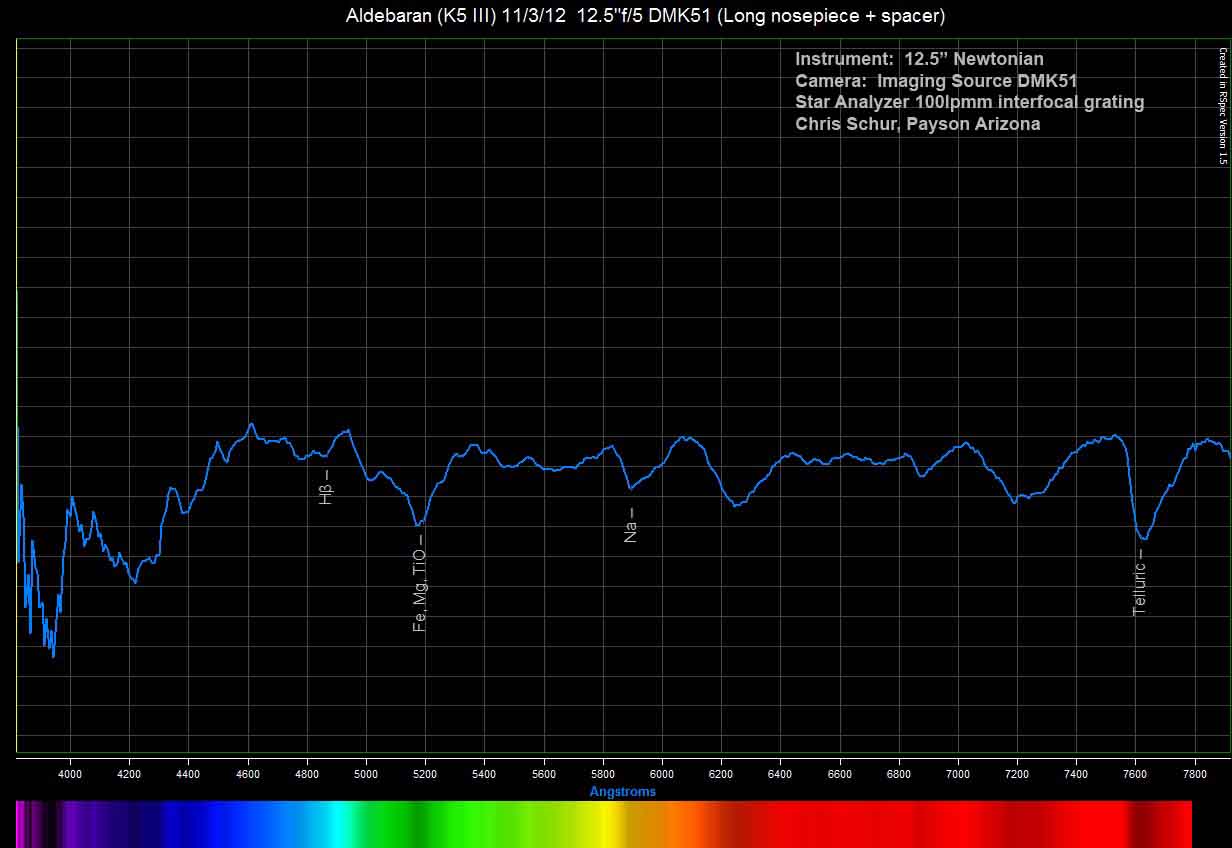

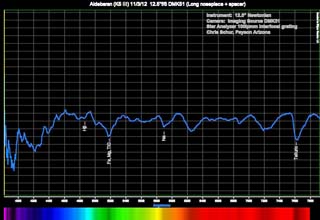

Aldebaran - K5 III
Instrument Calibrated Response Normalized

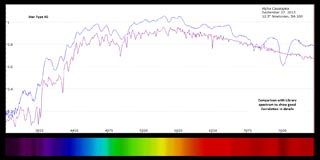

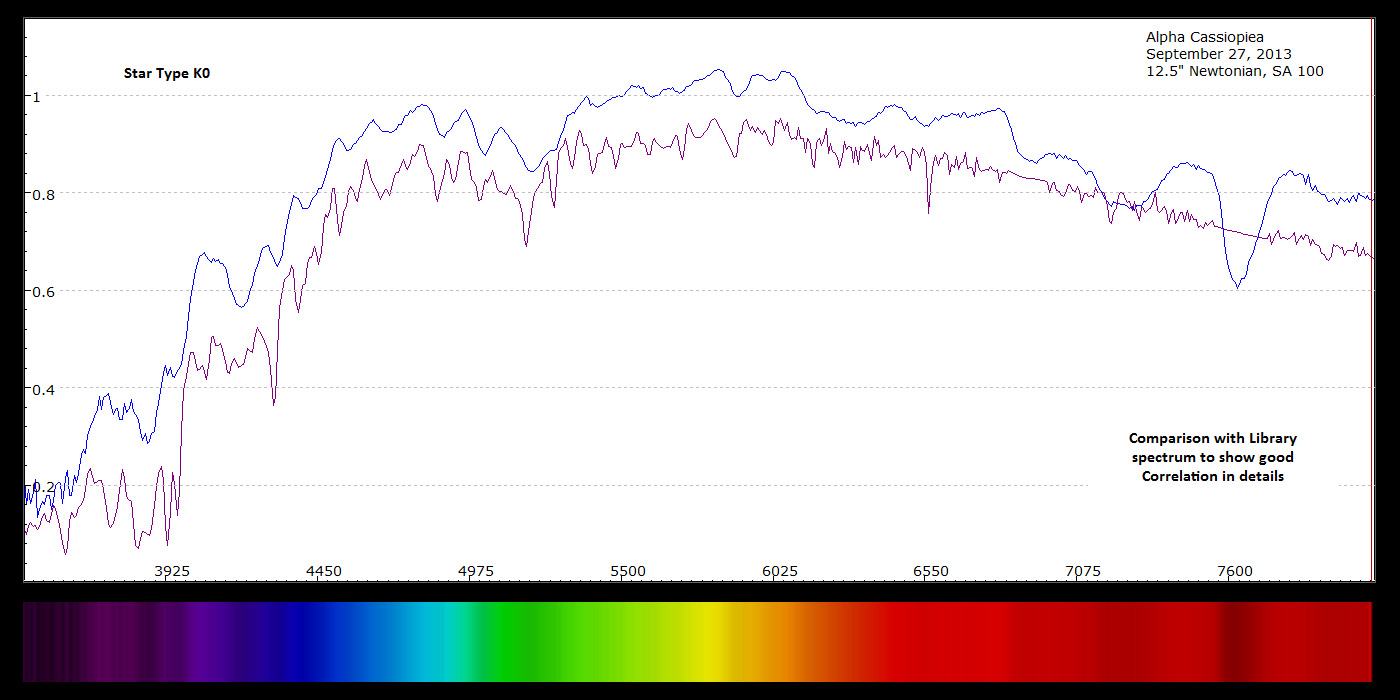

Alpha Cassiopiea - K0 II-IIIvar
Instrument Calibrated Response
Here seen in comparison with the Library
reference spectrum (purple) to show the
accuracy of my data.  This is the very first
plot Ive done with Vspec.



Alpha Cass - K0
Normal Reversed appearance
Instrument Calibrated Response


 Class M

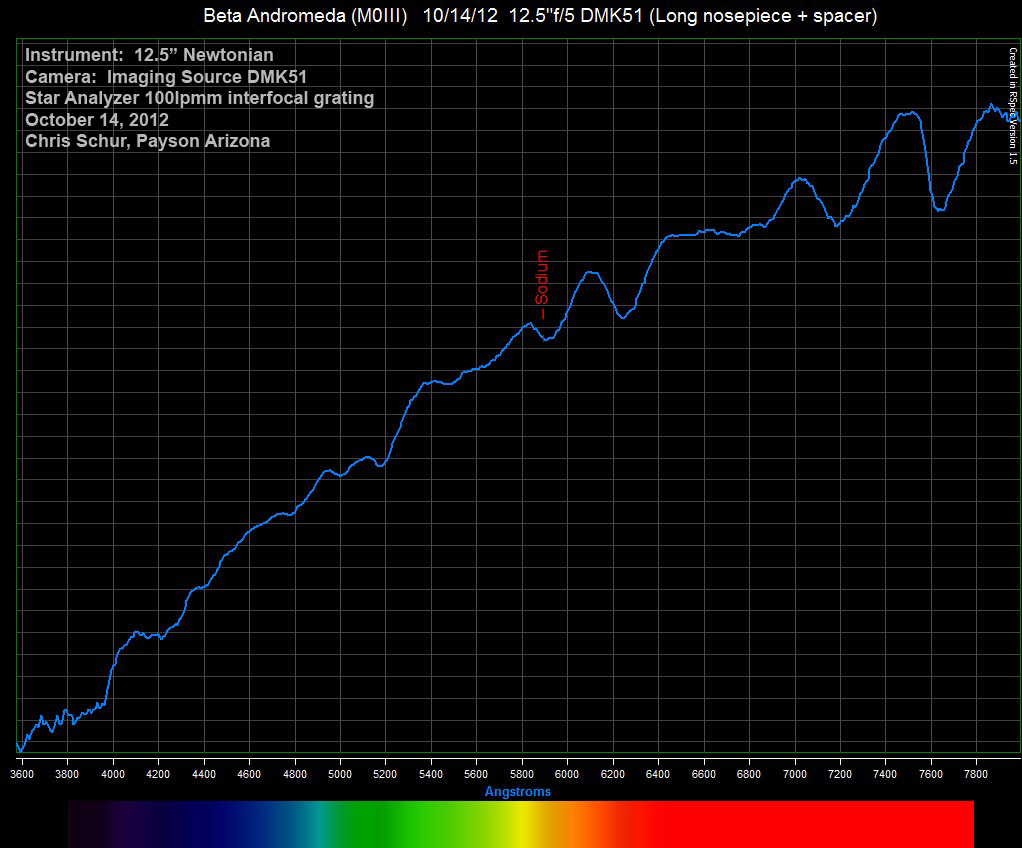

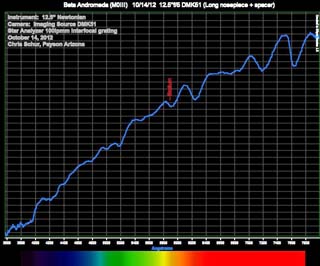

Beta And - K3 IIb
Instrument Calibrated Response

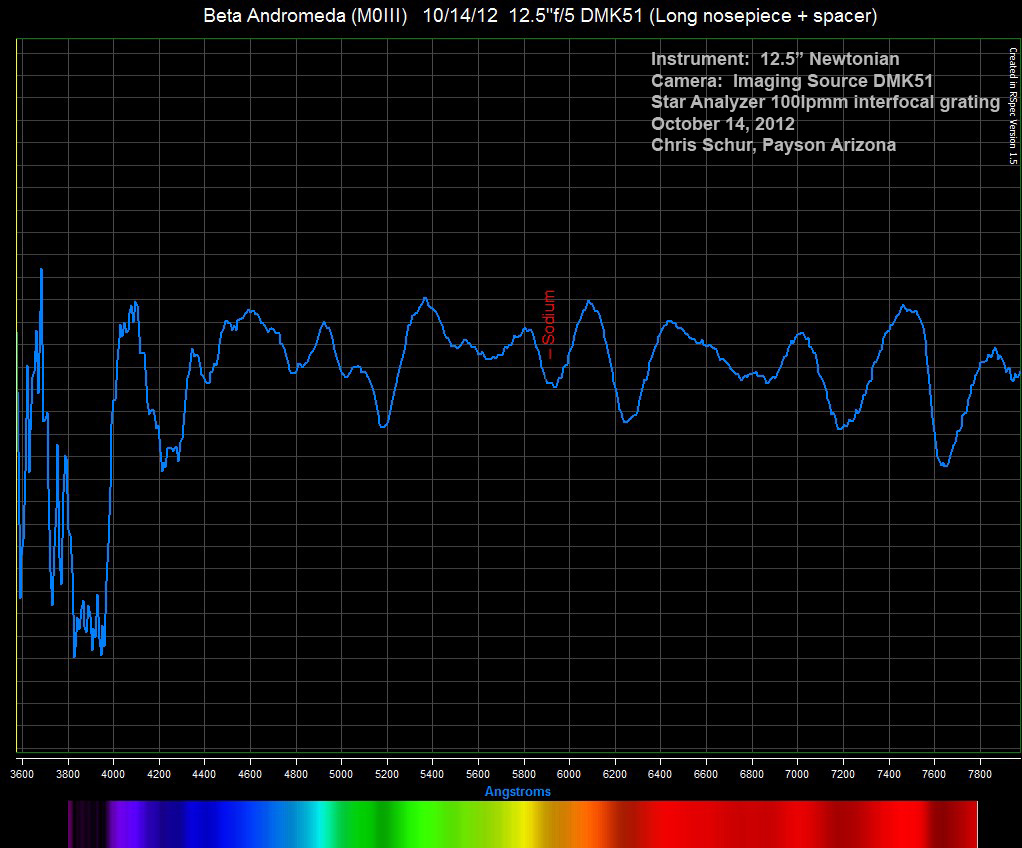

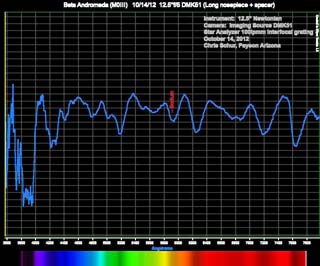

Beta And - K3 IIb
Instrument Calibrated Response Normalized

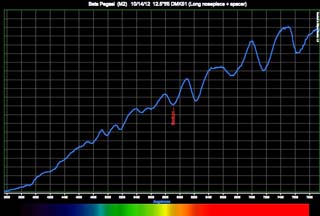

Beta Peg - M2
Instrument Calibrated Response

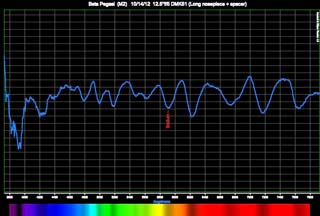

Beta Peg - M2
Instrument Calibrated Response Normalized

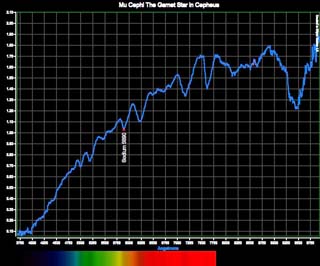

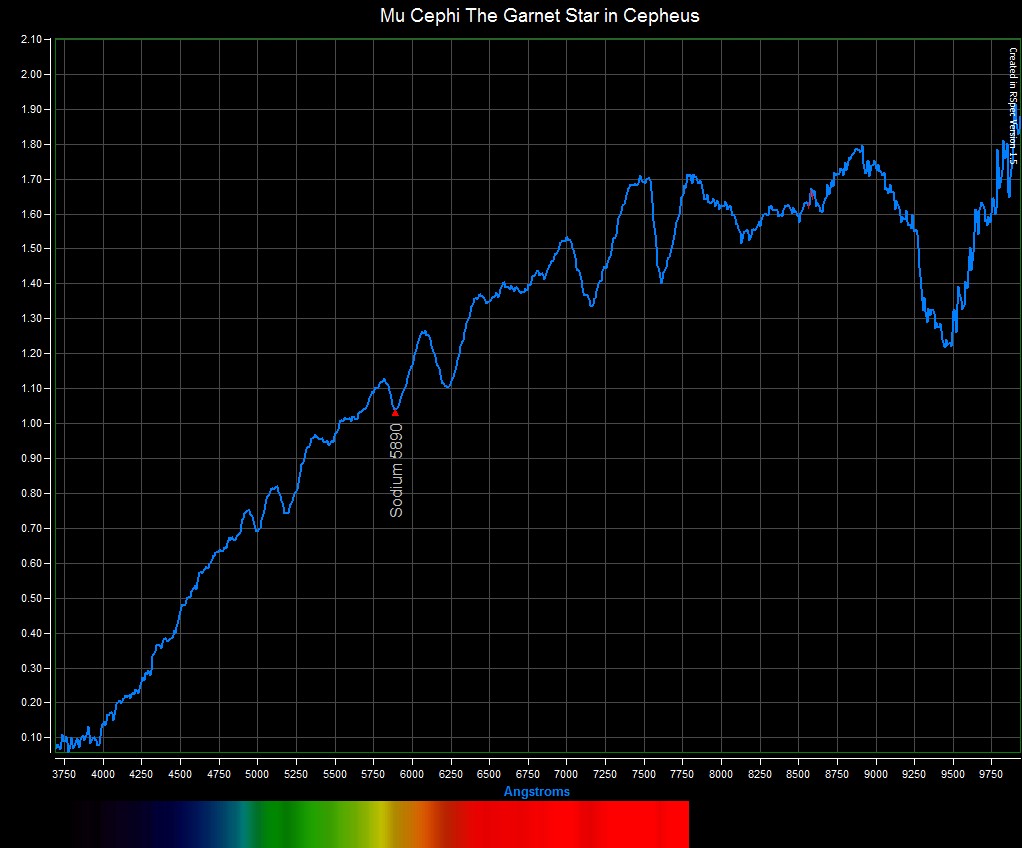

Mu Cephi - M2
Instrument Calibrated Response

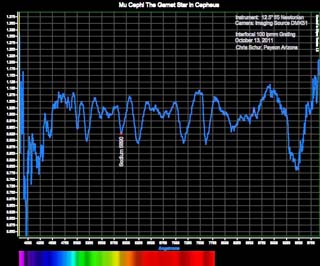

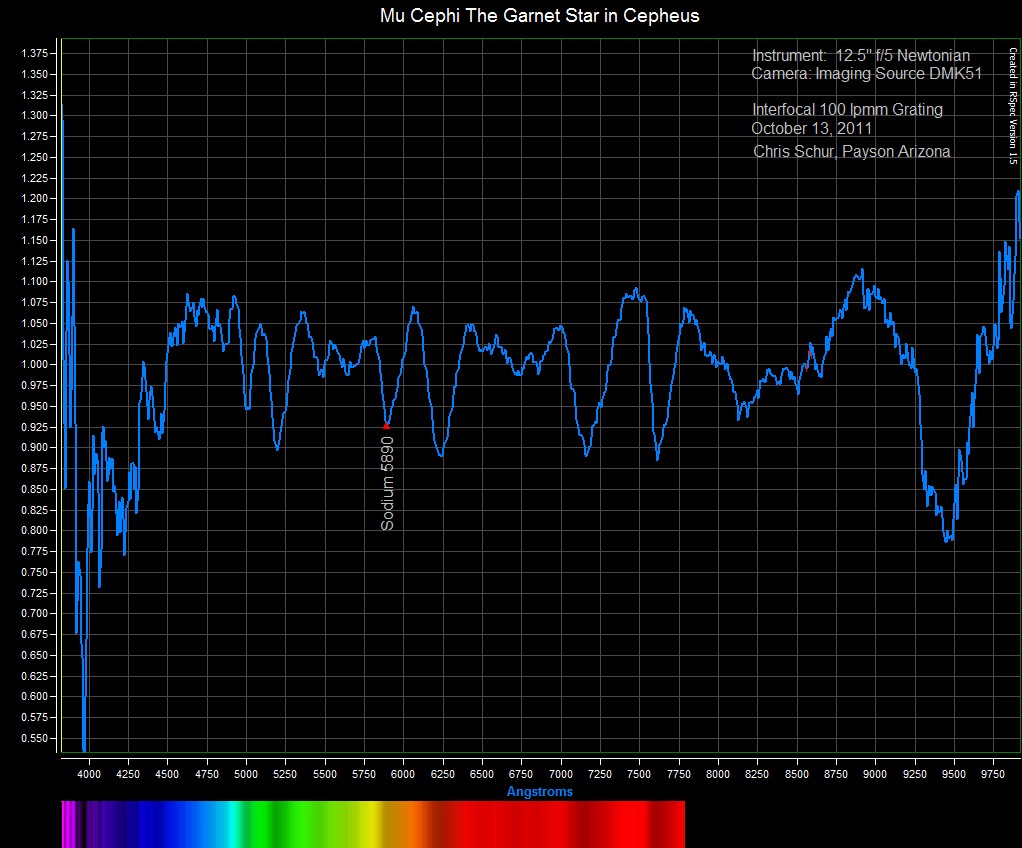

Mu Cephi - M2
Instrument Calibrated Response Normalized

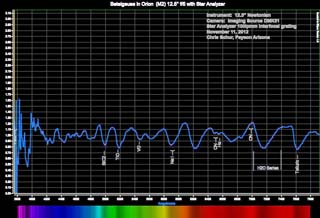

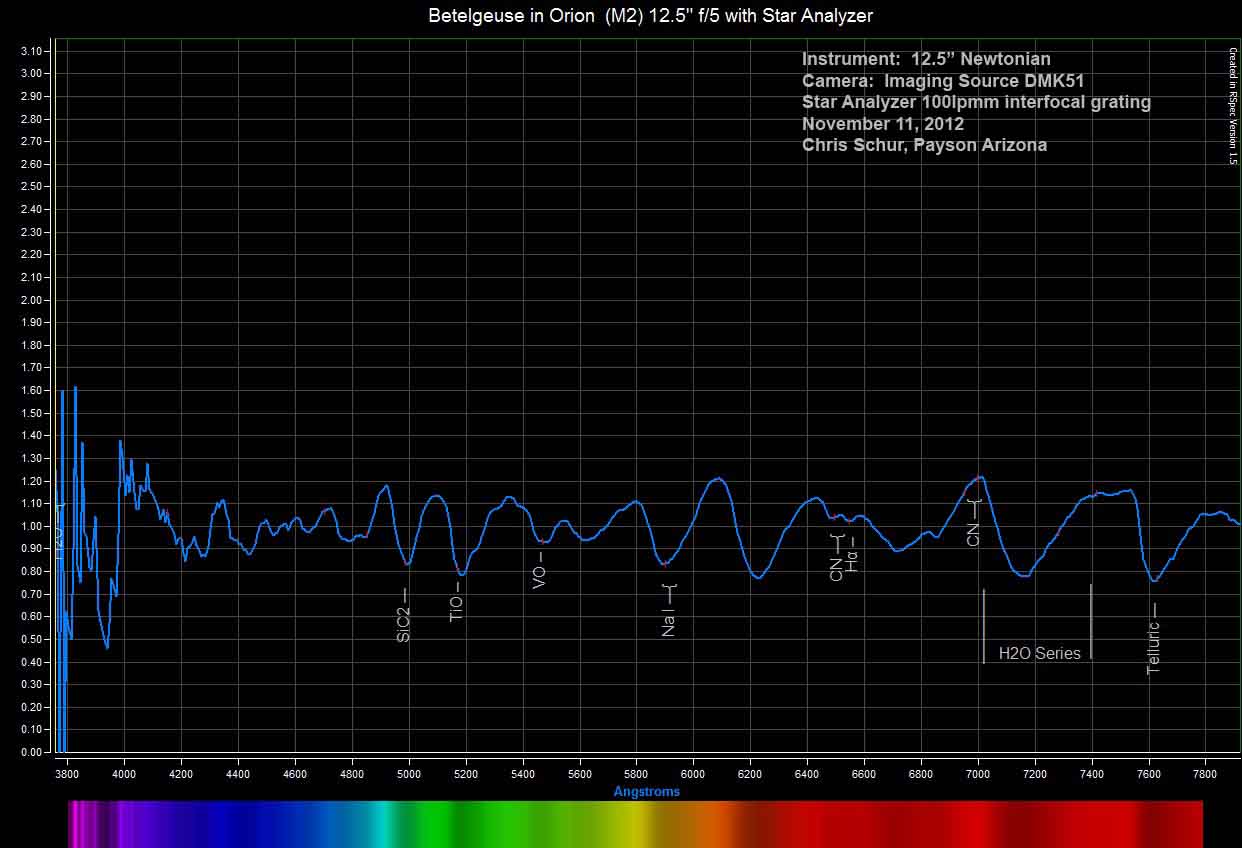

Betelgeuse - M2
Instrument Calibrated Response Normalized

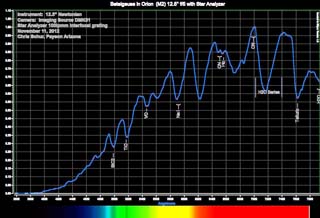

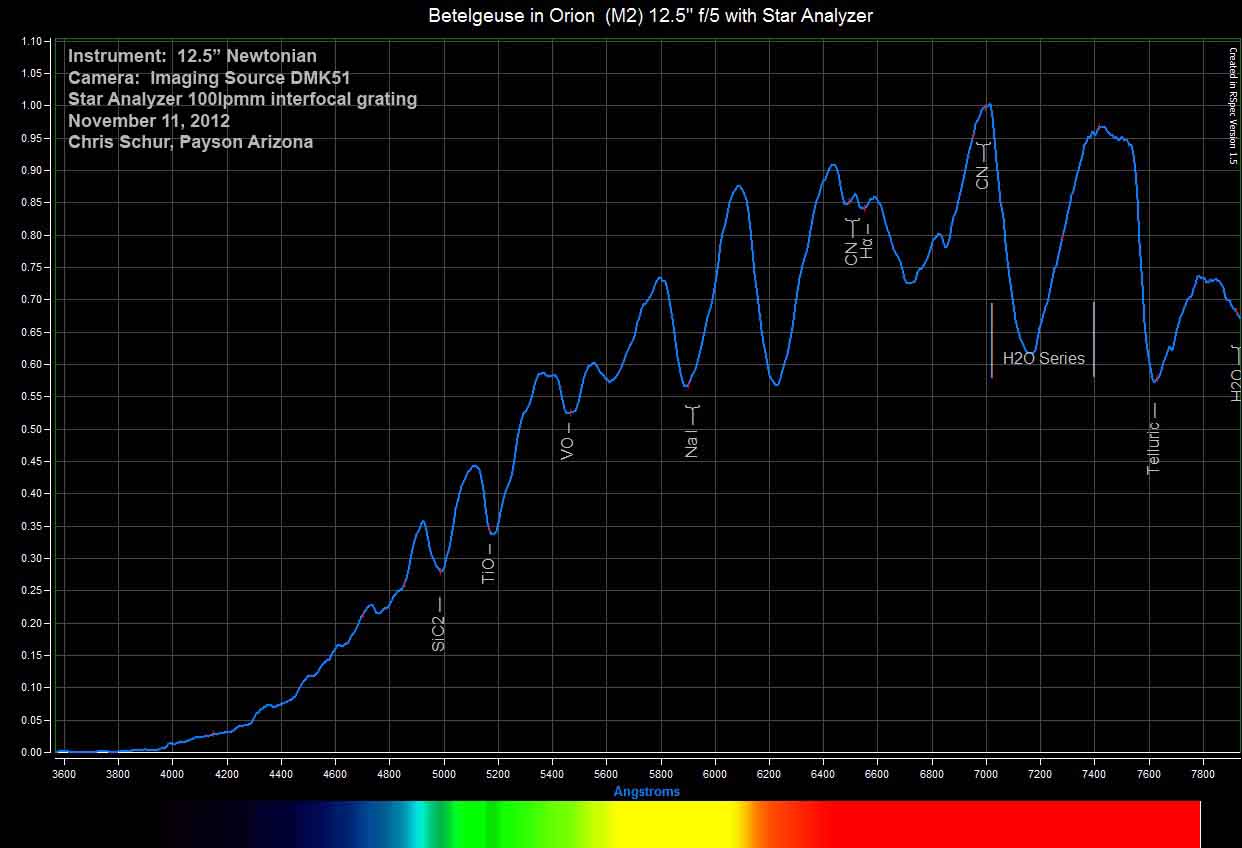

Betelgeuse - M2
Instrument Calibrated Response

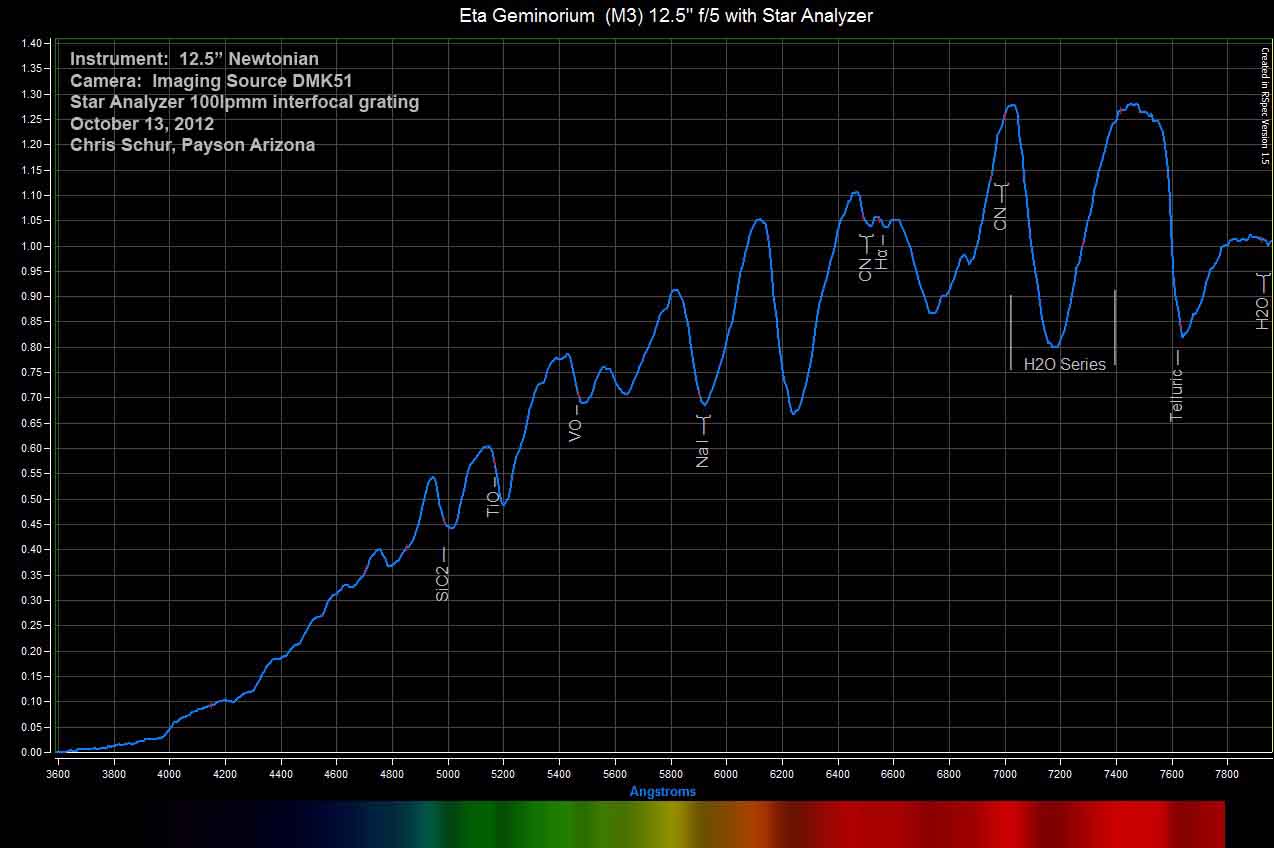

Eta Geminorium - M3
Instrument Calibrated Response

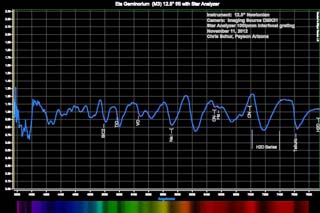

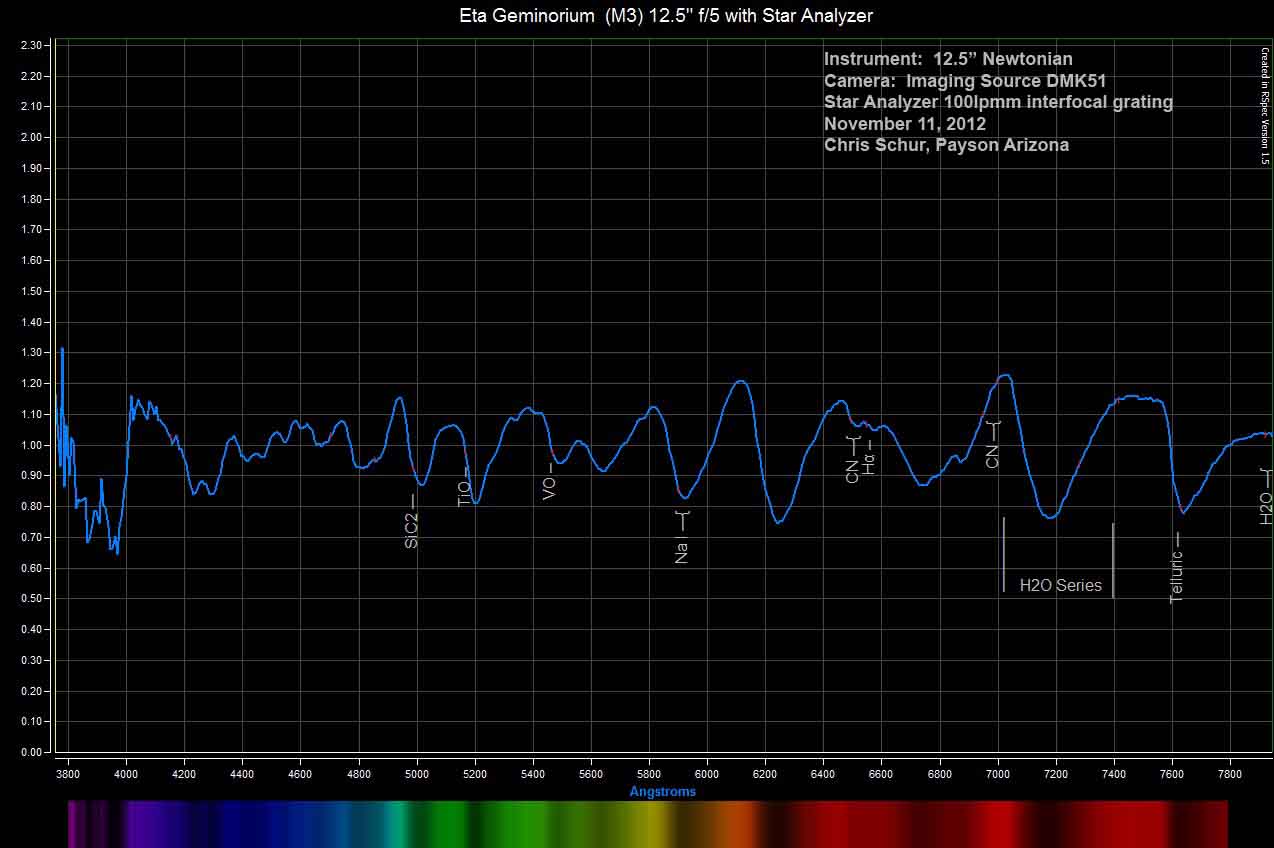

Eta Geminorium - M3
Instrument Calibrated Response Normalized

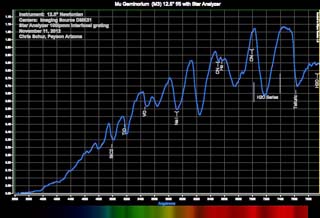

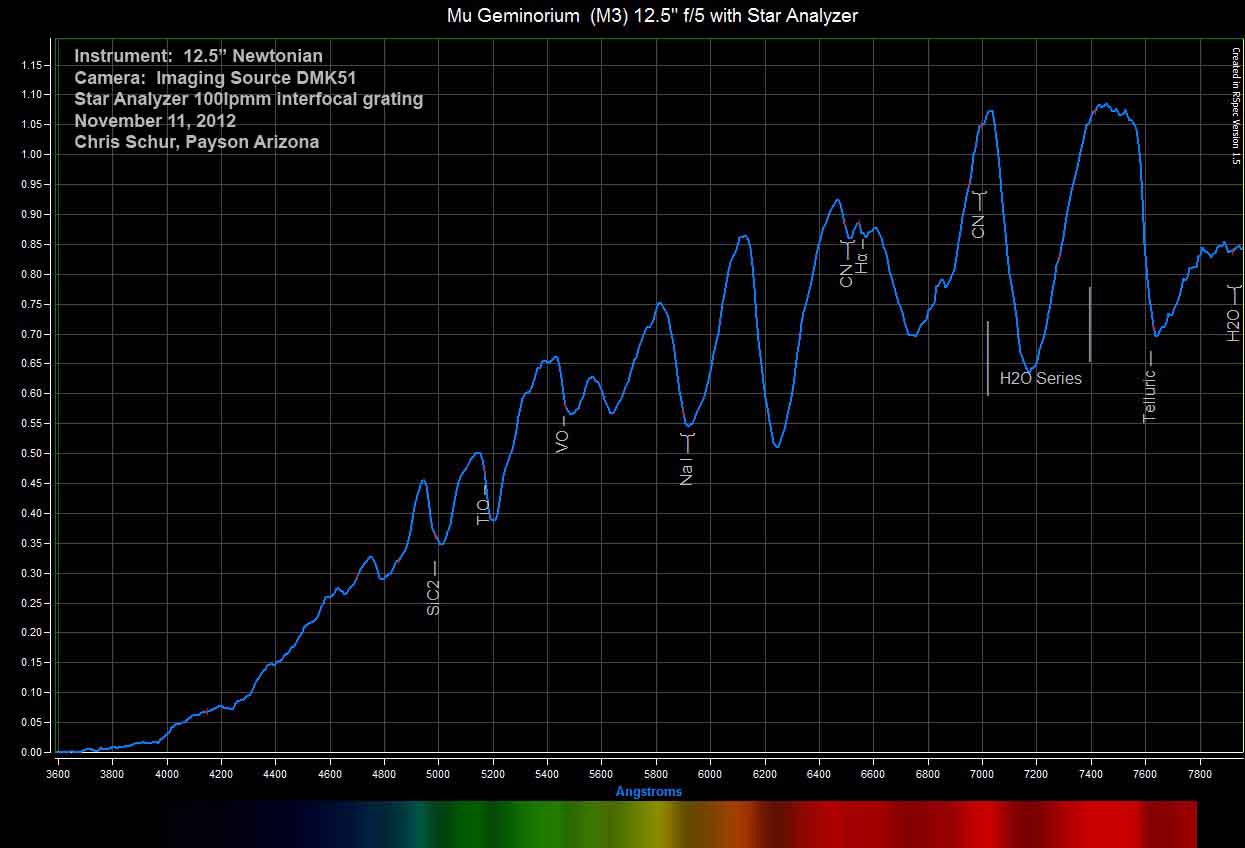

Mu Geminorium - M3
Instrument Calibrated Response

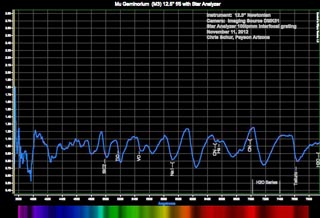

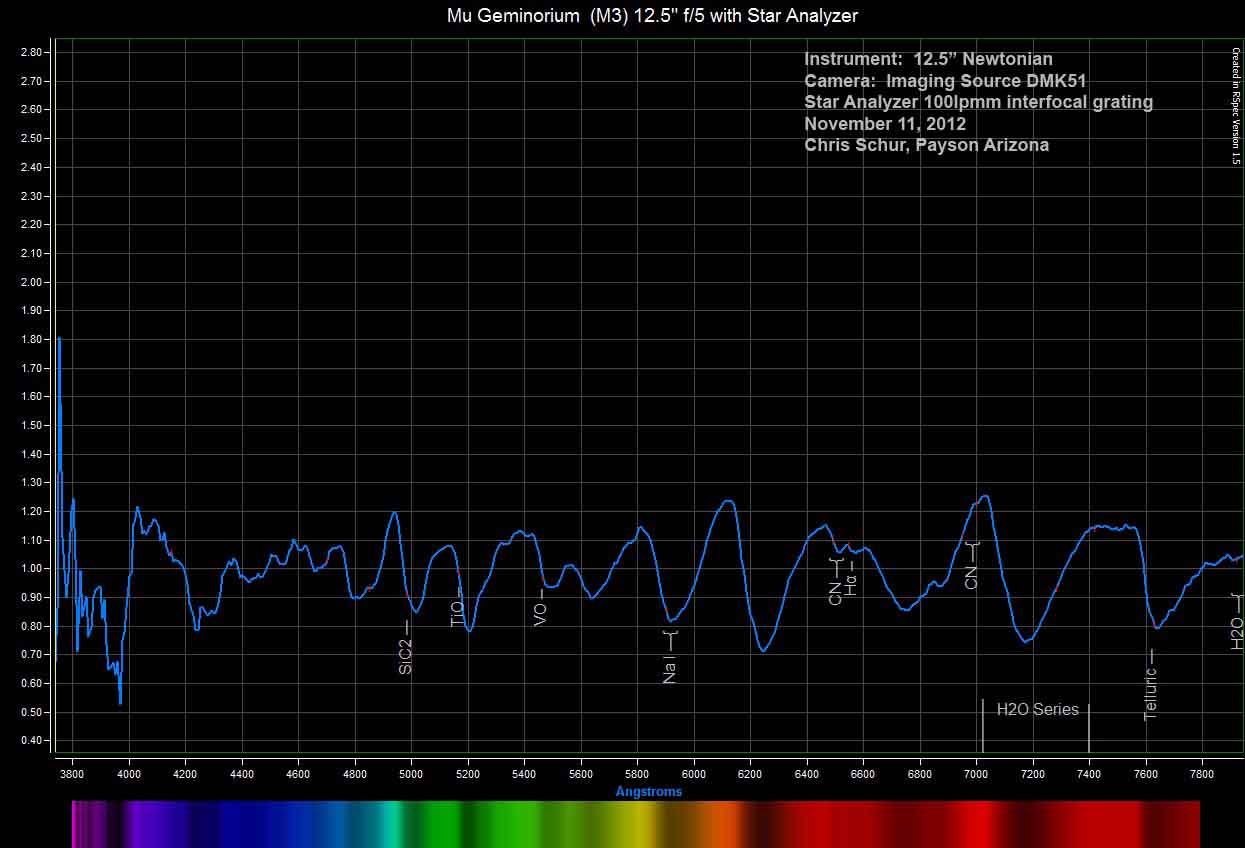

Mu Geminorium - M3
Instrument Calibrated Response Normalized




Instrument:  12.5" f/5 Home made Newtonian
Grating:  Star Analyzer  100 lpmm
Mount:  Astrophysics 1200 QMD
CCD Camera:  DMK51 Imaging Source
Location:  Payson, Arizona, Elevation:  5150 ft.
Sky:  Seeing FWHM = 5 arcsec , Transparency 9/10
Outside Temperature:  55 F
Image Processing Tools: RSpec for spectral extraction, Photoshop CS2
