Cambrian Fossils in the Bright Angel Shale

of Northern Arizona

Enigmatic "Coralomorphs"

Fossils Section

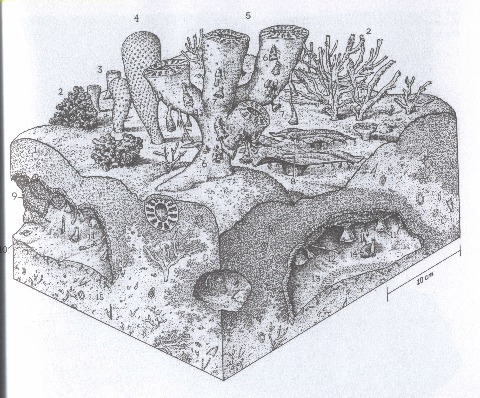

  The Early Middle Cambrian shallow Sea (from "Cambrian Ocean World" book by John Foster) (click to enlarge to full size)
Updated 8/12/17

When we first discovered this unique site over a decade ago in northern Arizona, our main concern was the collection of the rare Zacanthoides trilobites present and the associated hyolithids. Mixed in with the countless arthropod molts were the scattered remains of another organism, which appeared to the naked eye as a small net-like sponge. At that time, we speculated on what they could be, but nothing further came of their presence for a few years. The last time we visited this site, we discovered that the "sponges" were located in a layer about six inches below the trilobite beds and often did not contain a single other type of fossil. An increased effort was made at that time to collect new material, and take a closer look when we returned.

Since then, the material has been re examined under the microscope and serial sections were made, and it soon became evident that this was certainly not a sponge! We found that these fragments were that of some sort of colonial animal, perhaps an early cnidarian or hydrozoan of some sort that was reminiscent of the later Paleozoic Favosites Tabulate Coral. At this point, we had never even heard of the term "Coralomorph", and after a new program to re-photograph the fauna from this site was undertaken this year, I posted some diagnostic images on the "Fossil Forum" (thefossilforum.com) to see if anyone had collected Cambrian material similar to these animals shaped like bundles of tiny hexagonal tubes. One of the members (Piranha), whose key interests in Cambrian trilobites recognized what we had found was a primitive coral, and pointed us to a paper by Melissa Hicks, University of Nevada in 2006. Photographs in the paper revealed an anthozoan nearly identical to what we have been finding. The coralomorph Harklessia yuenglingensis which at this point had only been found in our part of the country in one locality in nearby Nevada. The paper lists coralomorph localities in world wide locations, and of the dozen or so listed - this was the only one in the USA.

Continued review of additional research papers on the subject revealed that while the very first primitive tabulate coral like cnidarians existed in the early Cambrian (Tomotian), The fossil record of corals is nearly non existent for Middle Cambrian to Early Ordovician. After that, Tabulate and Rugose corals exploded in diversity and were major dominant reef builders during the Paleozoic. During the transition from the earlier corals to first tabulates, a peculiar coral like animal evolved called the "coralomorphs" with still uncertain affinities to later Paleozoic true corals. What we had found at this remarkable lower middle Cambrian site was one of the enigmatic colonial hydrozoans that were part of this transition.

Our conclusions are that while the microscopic details of our coralomorph are not a perfect match to the not so clear images in the paper, it more than likely is either Harklessia sp., or a very similar primitive cnidarian. Also, we have not yet found any reports of coralomorphs for Arizona's Cambrian rocks and this may be a significant extension of the range of a Harklessia type coralomorph. This was surprising, since such extensive work on the fauna of the Cambrian strata in the Grand Canyon was done last century.

(click to enlarge to full size)

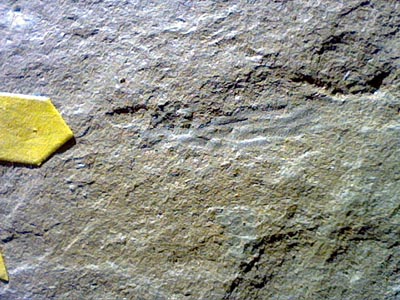

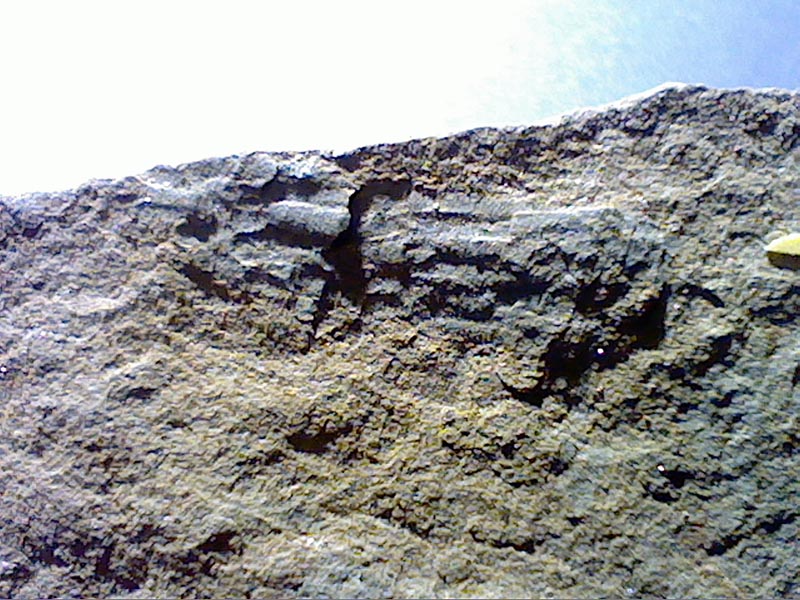

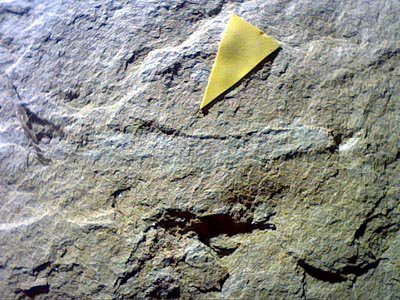

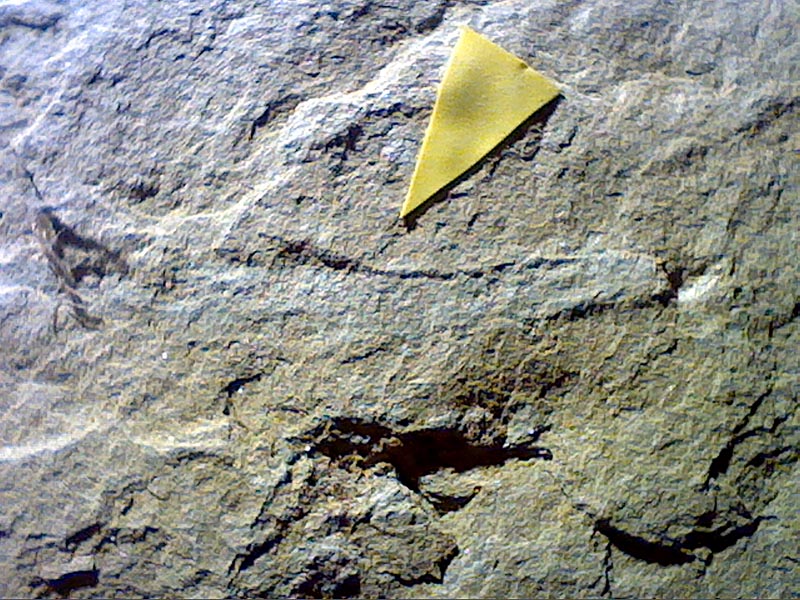

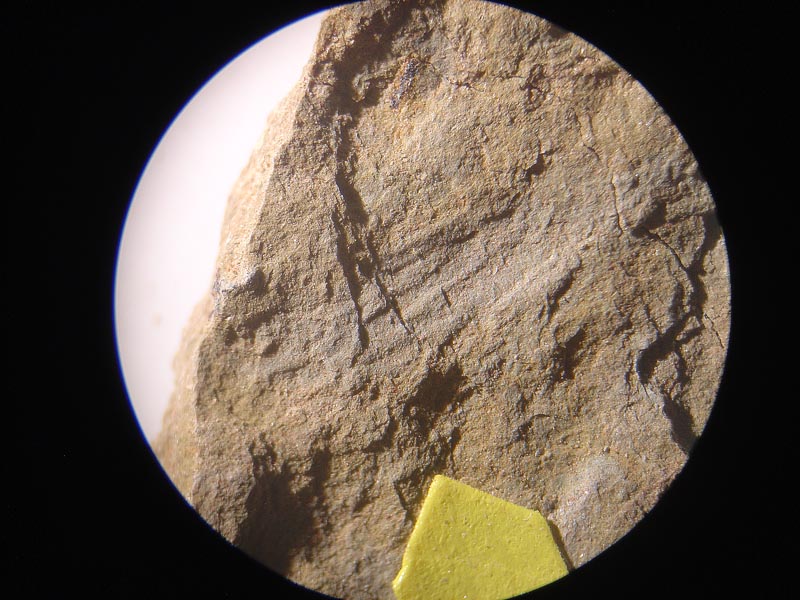

The first clue was the side impression of many of the fragments that had a tapered appearance. The faint impression is laying on its side here, with the wide end to the left. Yellow arrow is 1 cm long.
(click to enlarge to full size)

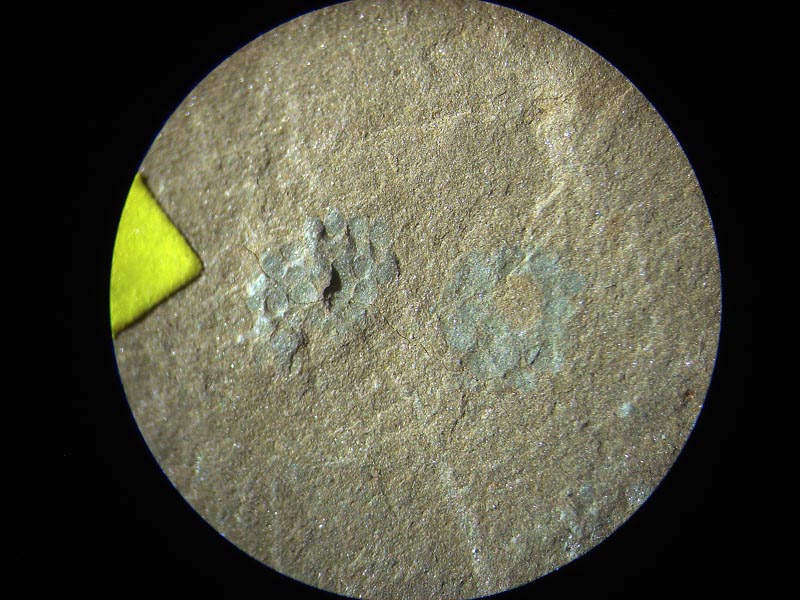

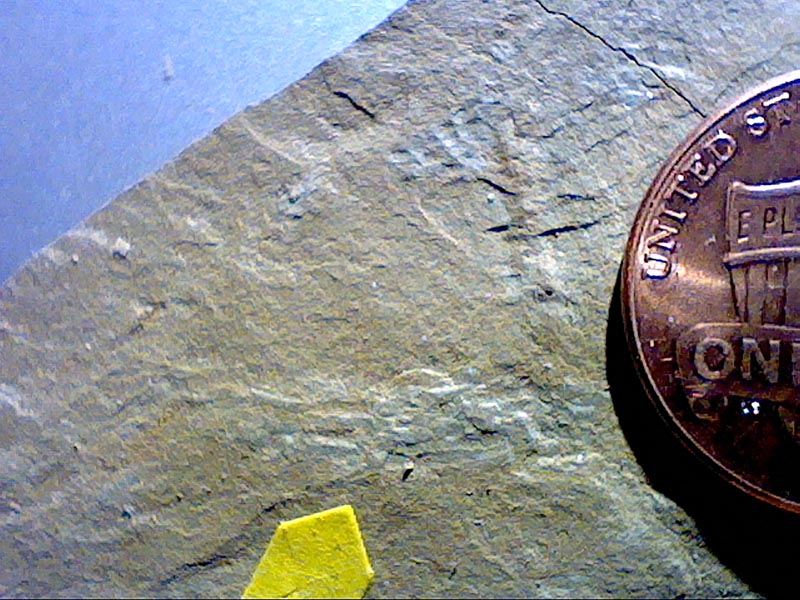

On fresh surfaces the tabulate coral like appearance is unmistakable. Many of the tubes were hexagonal in shape when crowded in the centers. No septa or tabulae were seen.
(click to enlarge to full size)

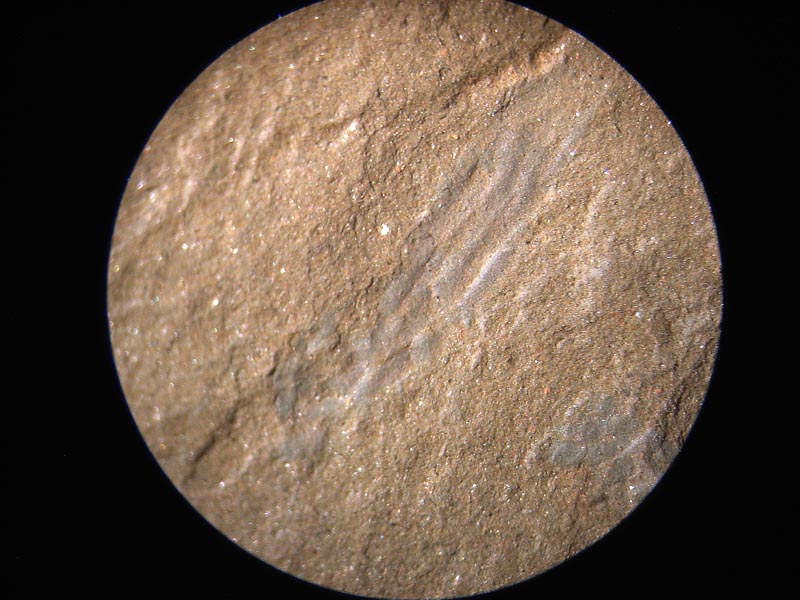

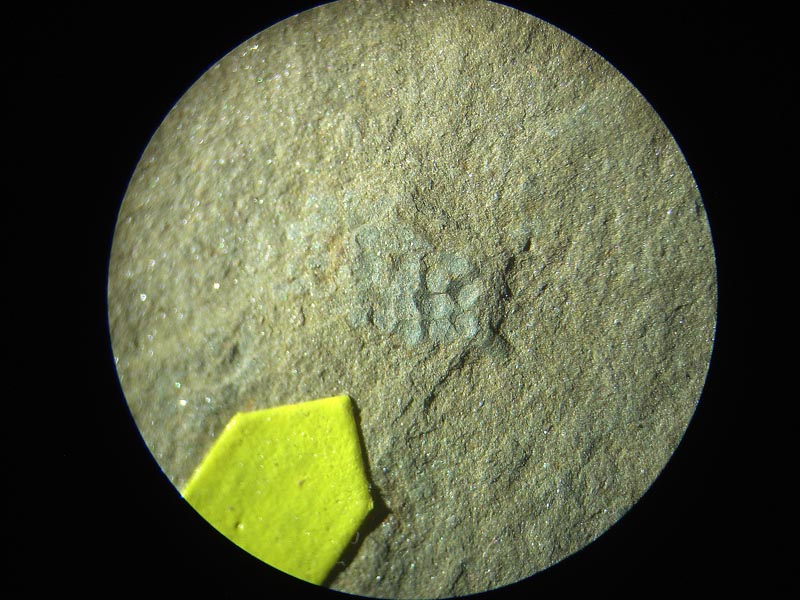

This piece shows another clue, the tubes were not perfectly straight down their length. The preservation has to be calcification to preserve in this green shale like this. On the lower right is an end on slice of another fragment.
(click to enlarge to full size)
Taking all the observations into account from the best specimens, a picture started to develop. It appears this is a radial fragment of a colonial animal such as a cnidarian or hydrozoan.
(from "Cambrian Ocean World" book by John Foster) (click to enlarge to full size)

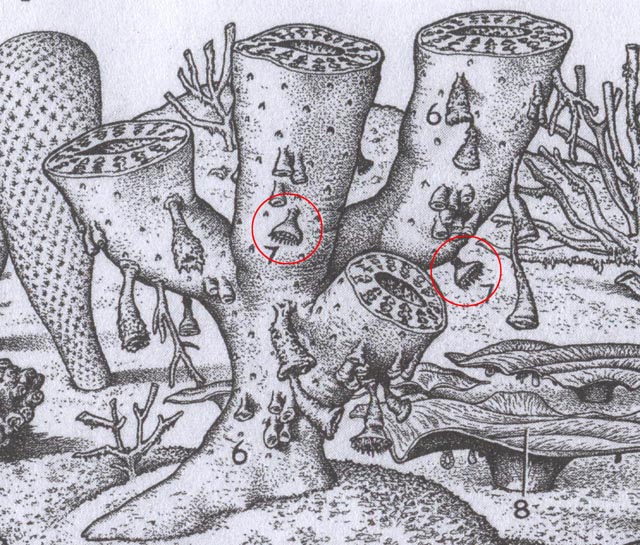

This graphic from John Fosters excellent book - "Cambrian Ocean World" shows an Early to Middle Cambrian scene. Growing on the sponges for support above the bottom benthos, are both archeocyathids and coralomorphs. Ive circled in red the two coralomorphs in this illustration. They are small vase shaped organisms approximately 2 - 4 inches in size here.
(click to enlarge to full size)

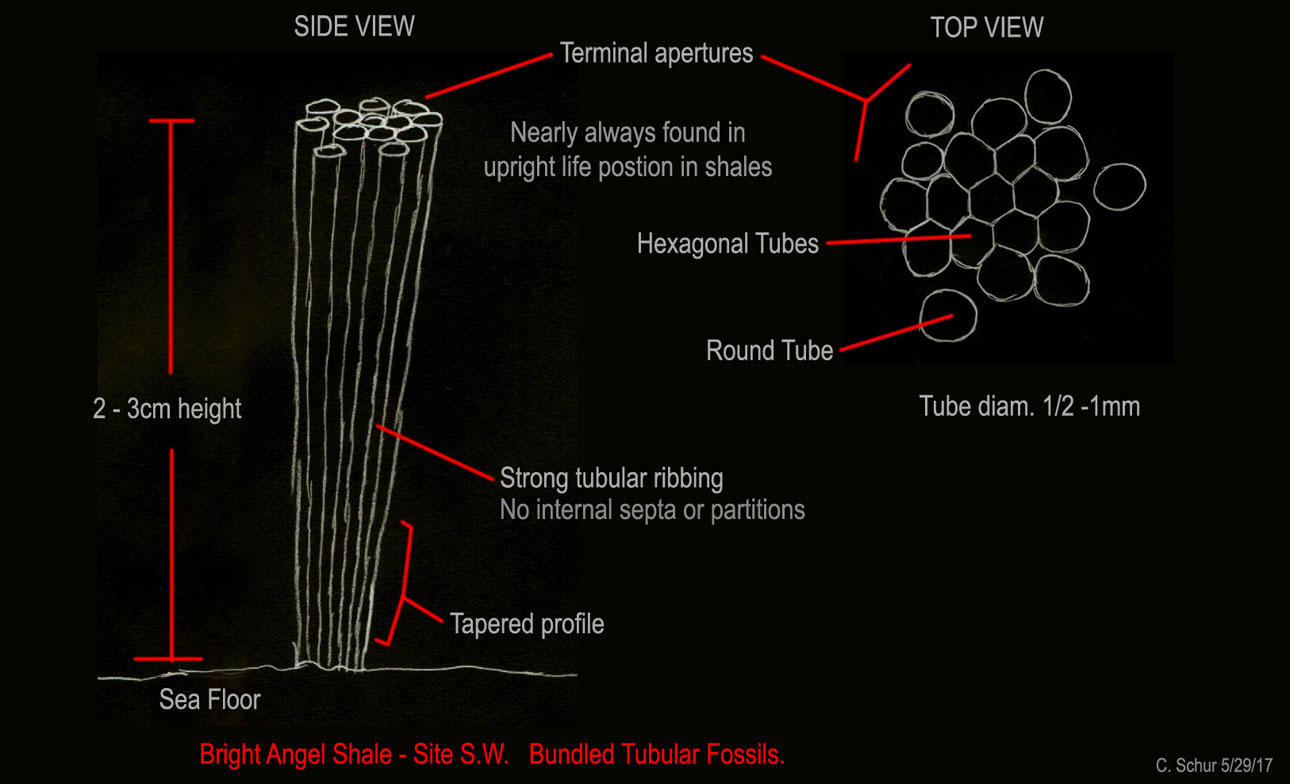

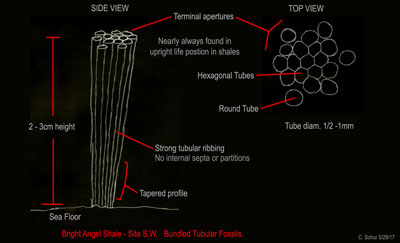

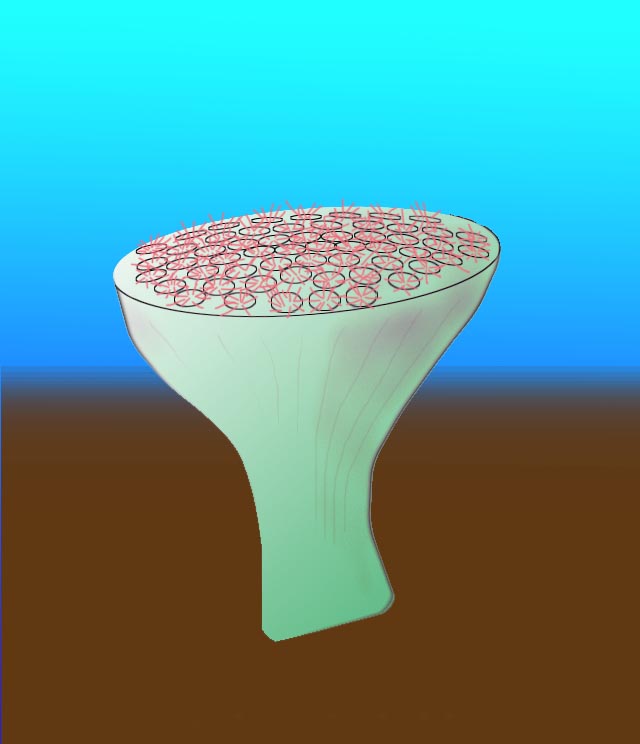

Putting together the appearance of our fragments and what a coralomorph looked like I created this drawing. Our coralomorphs would have been approximately tennis ball sized.
(click to enlarge to full size)
The final recreation. Ive added the hydroids in pink, and a general greenish coloration. It is not known if these early corals had symbiotic zooexanthellae in their tissues. (Symbiotic algae)

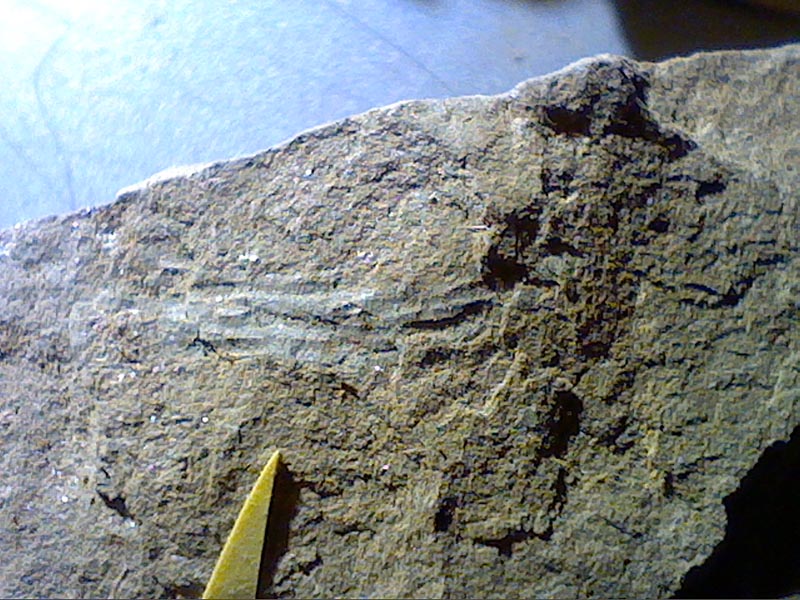

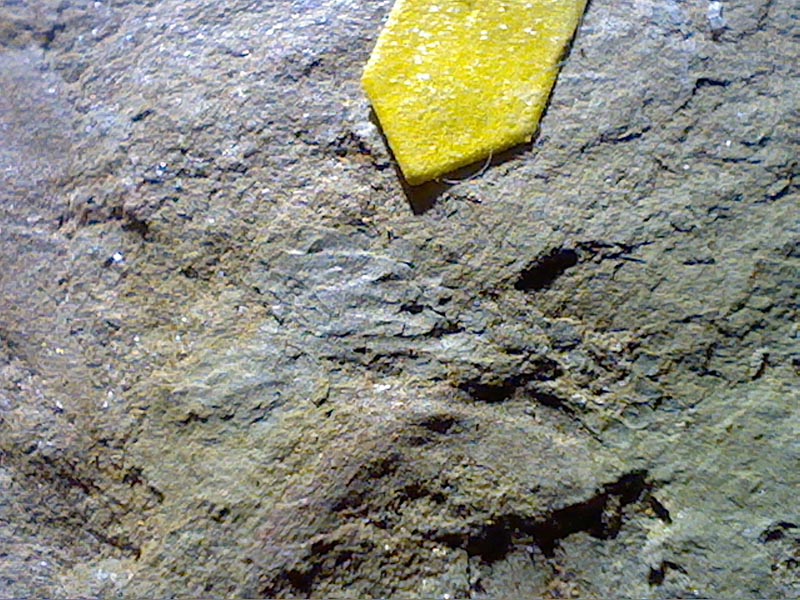

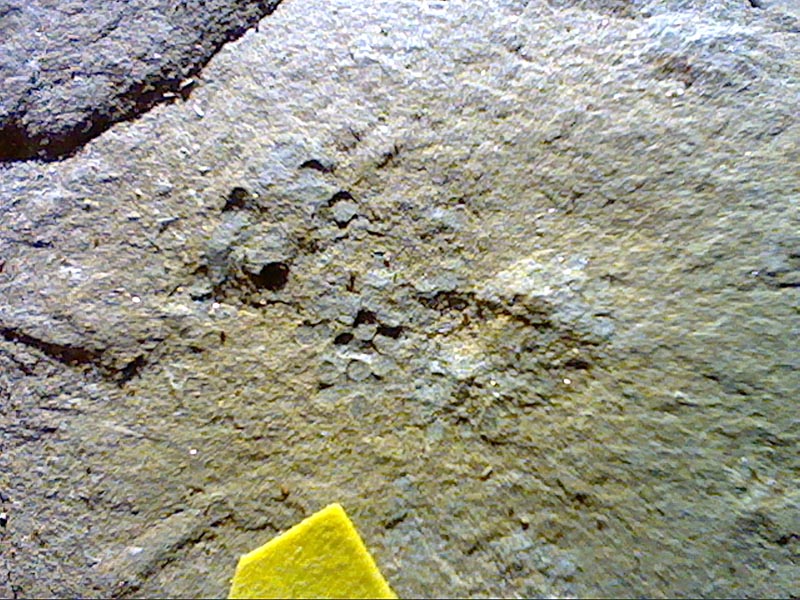

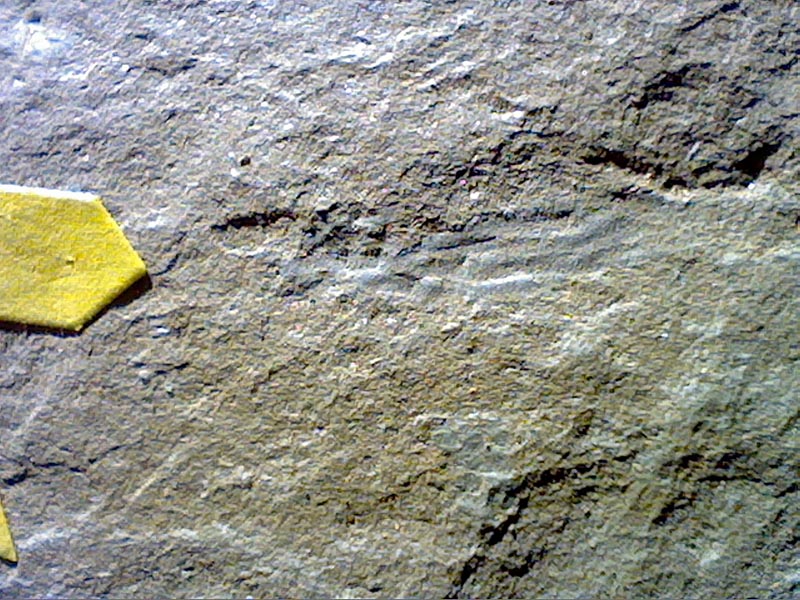

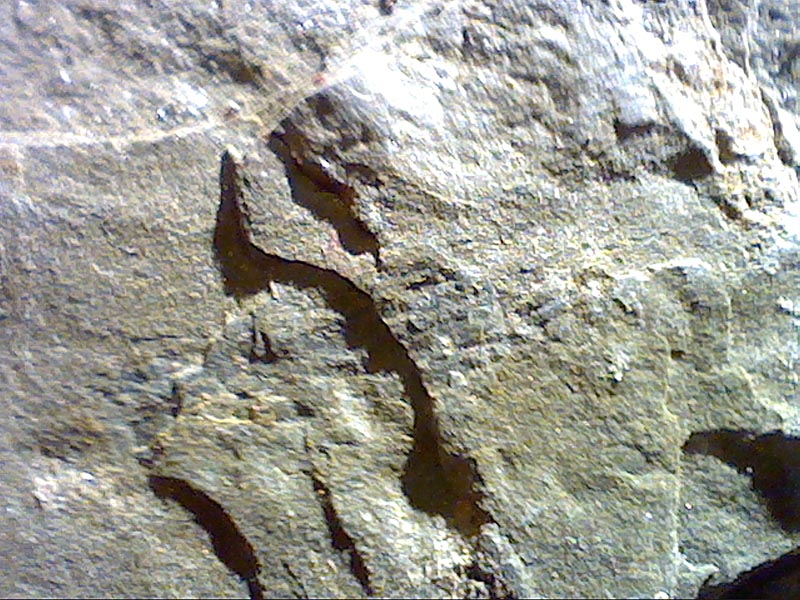

Detailed images with the web cam.\
(click to enlarge to full size)
(click to enlarge to full size)
(click to enlarge to full size)
(click to enlarge to full size)
(click to enlarge to full size)
(click to enlarge to full size)
(click to enlarge to full size)
(click to enlarge to full size)
(click to enlarge to full size)
(click to enlarge to full size)

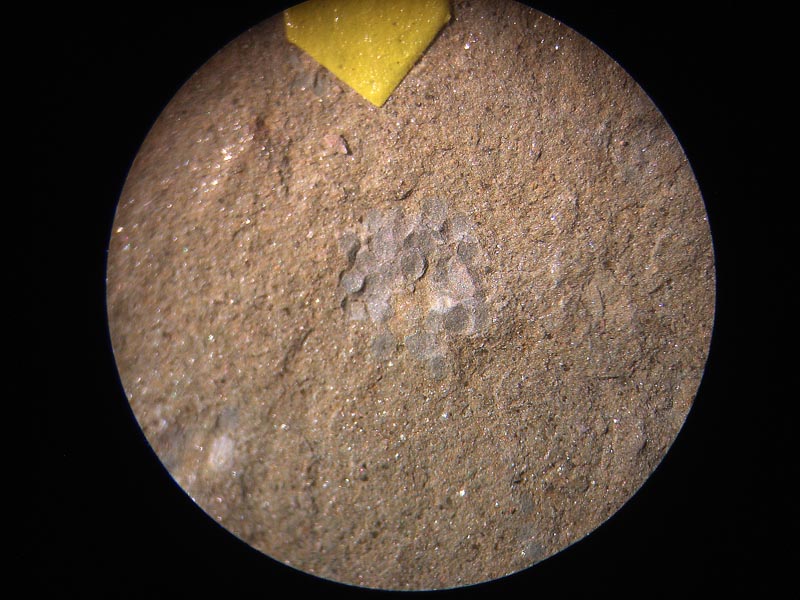

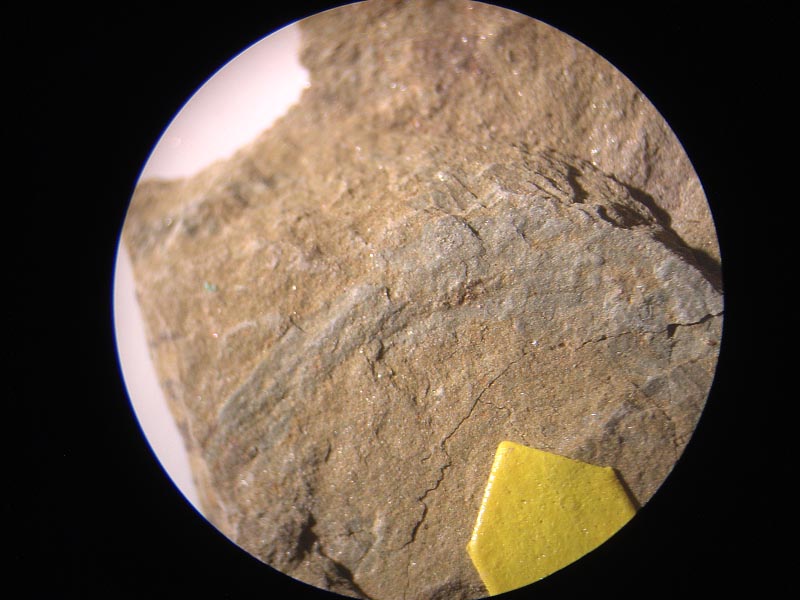

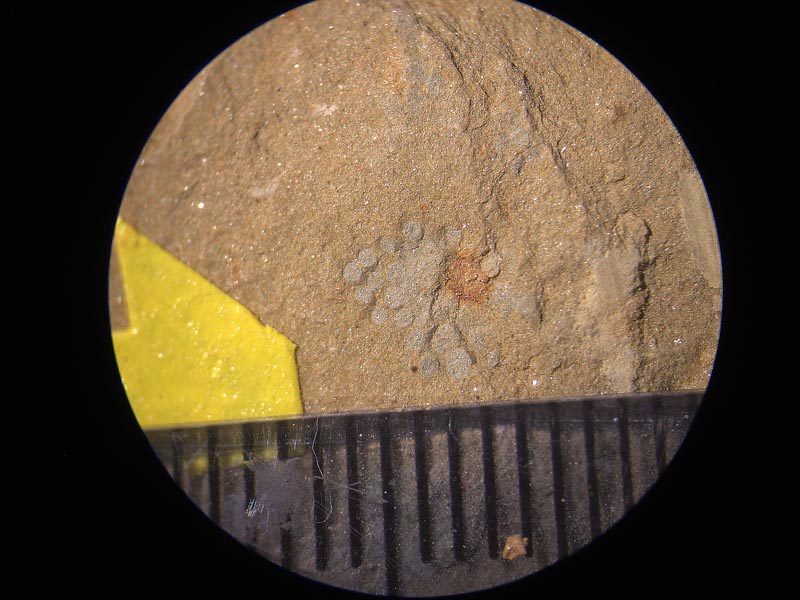

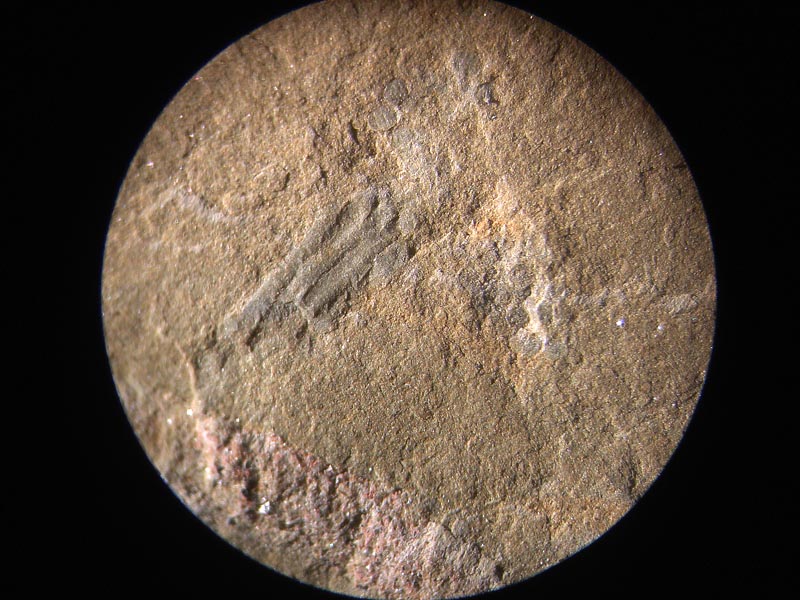

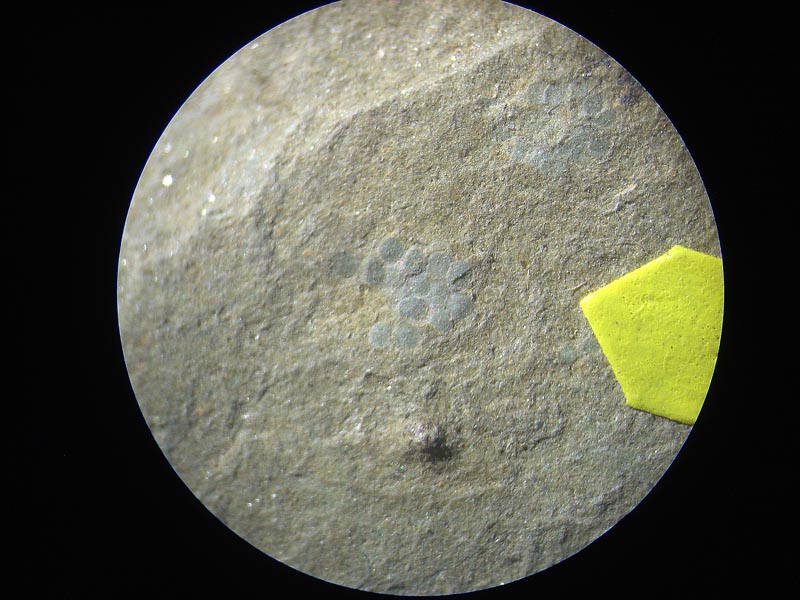

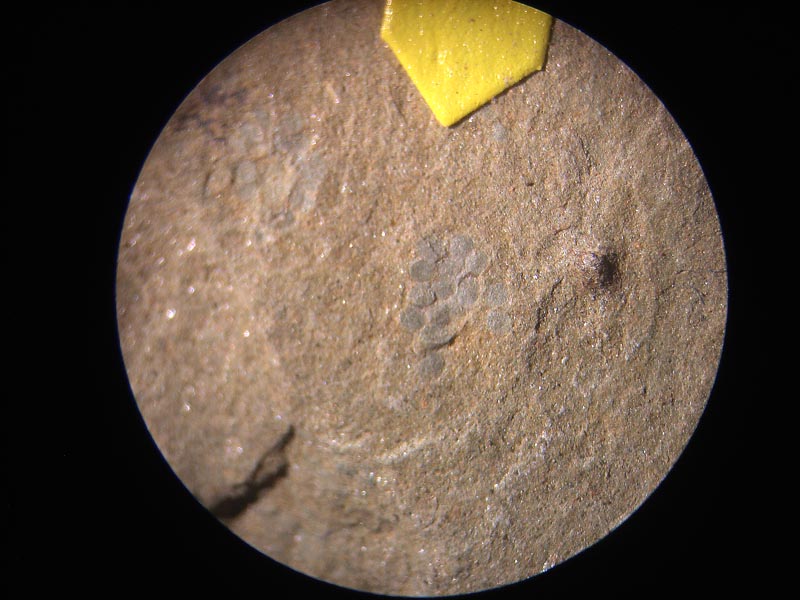

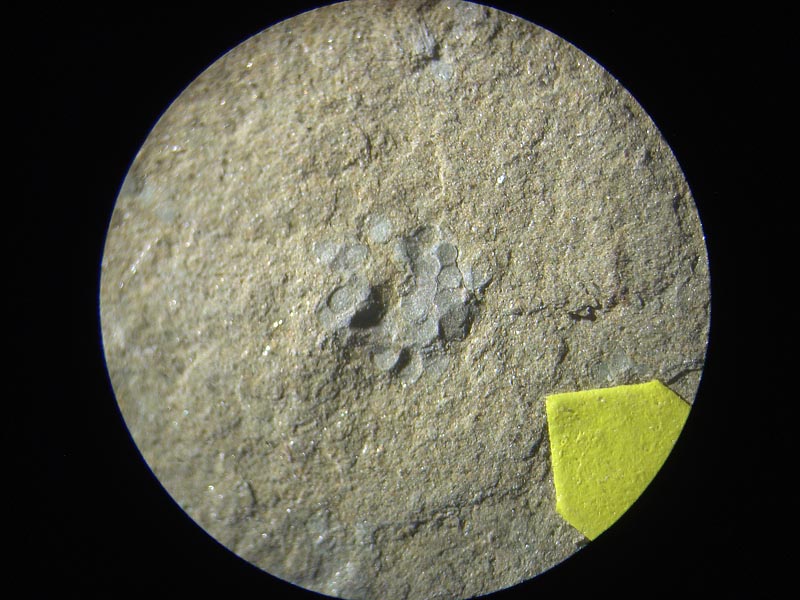

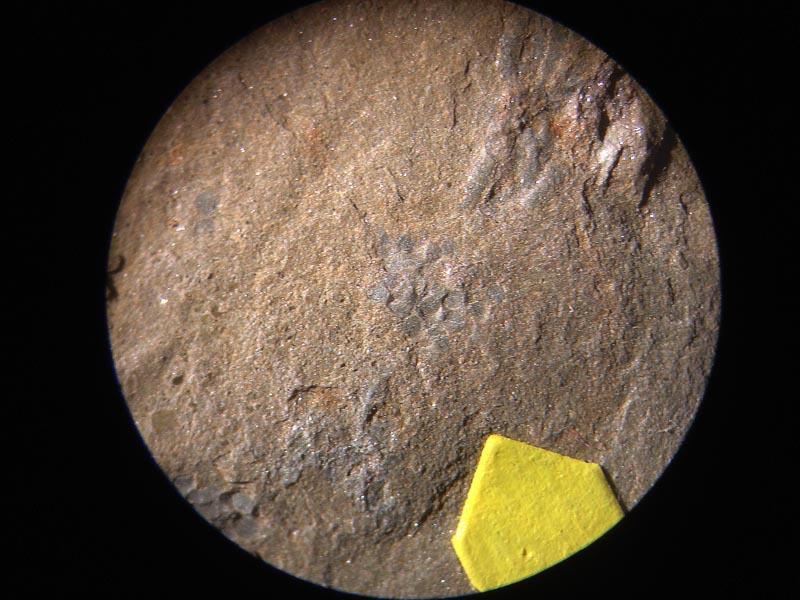

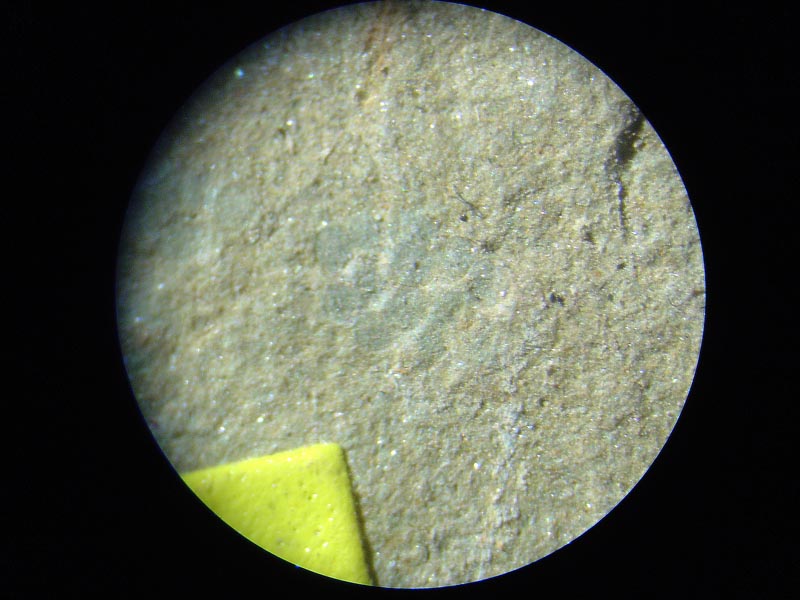

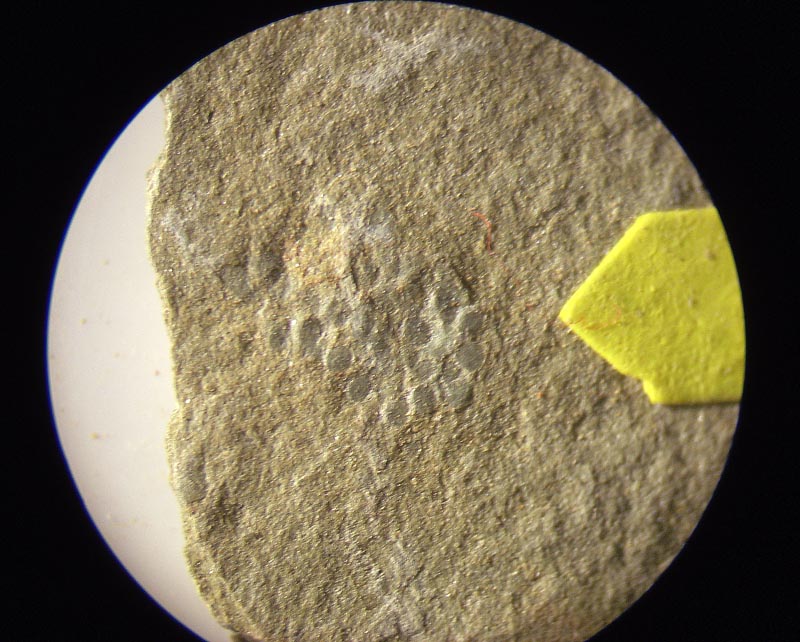

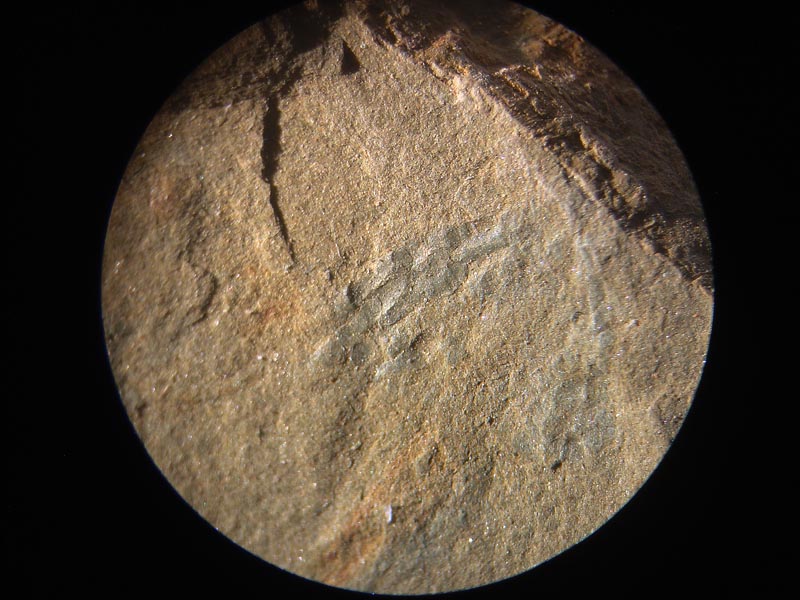

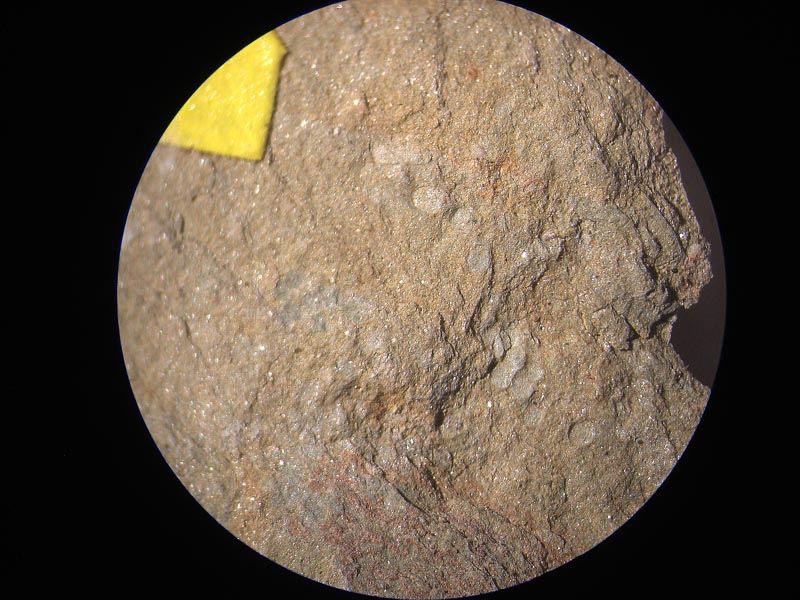

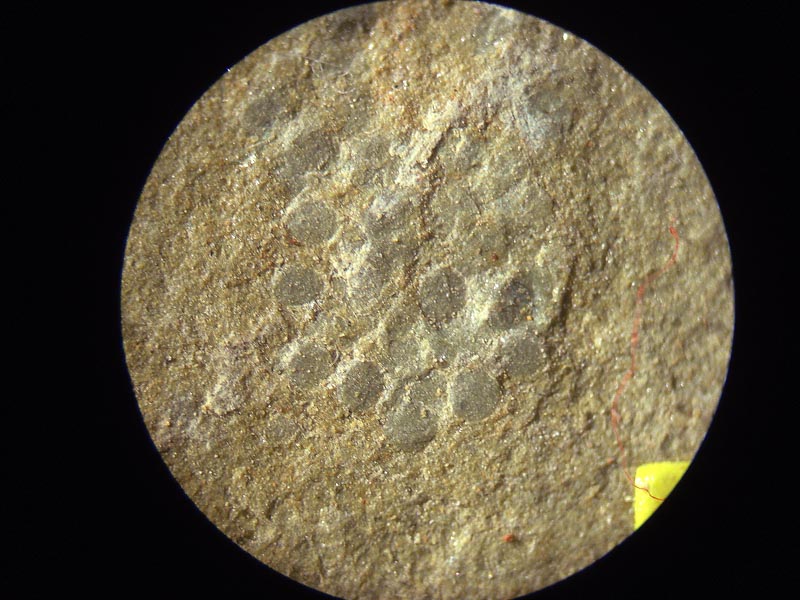

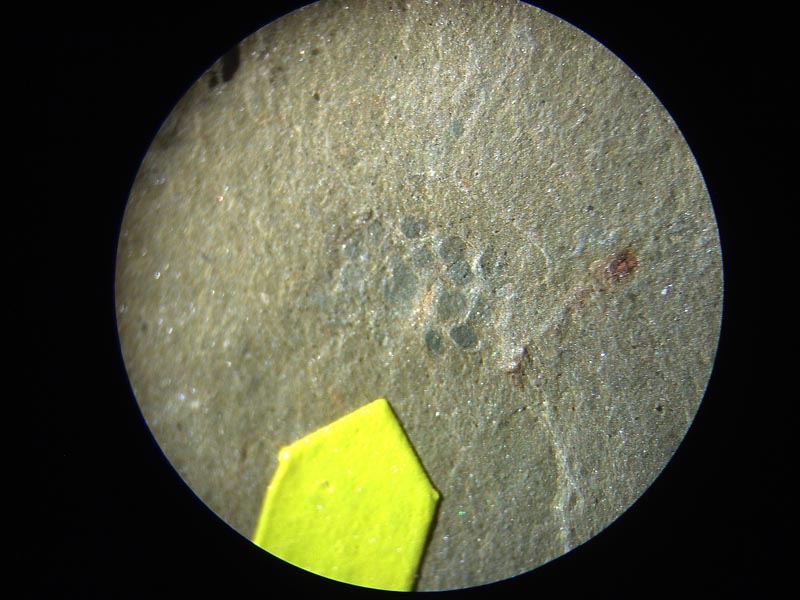

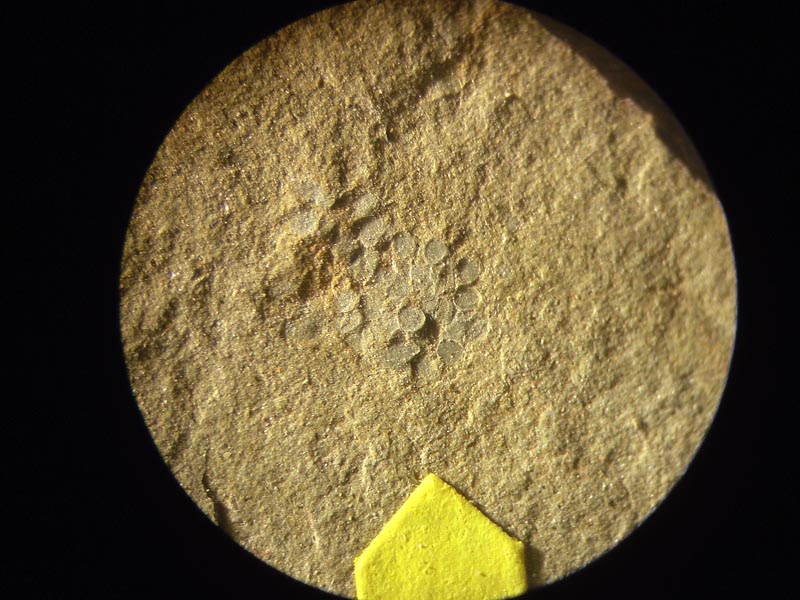

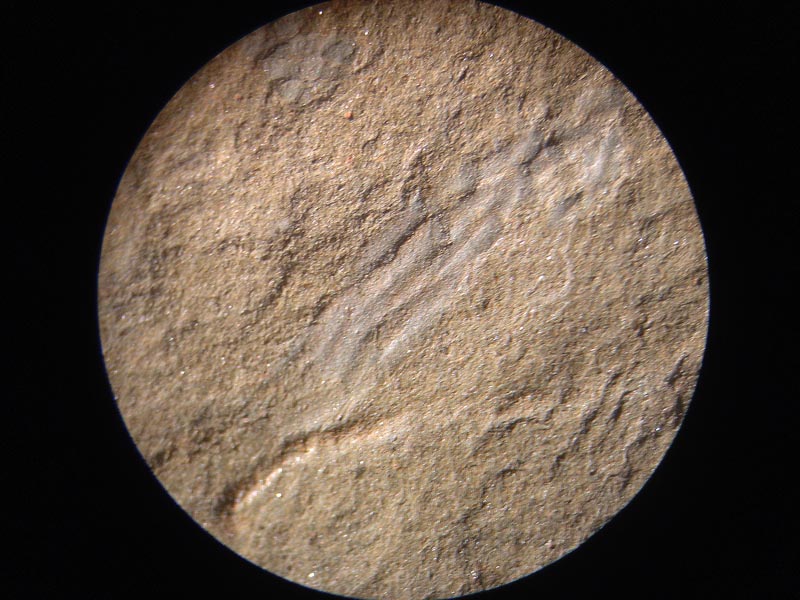

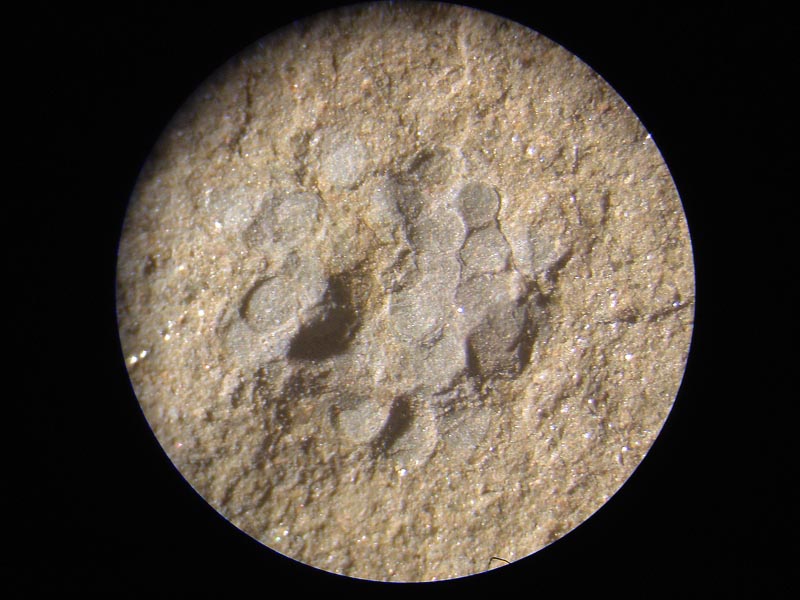

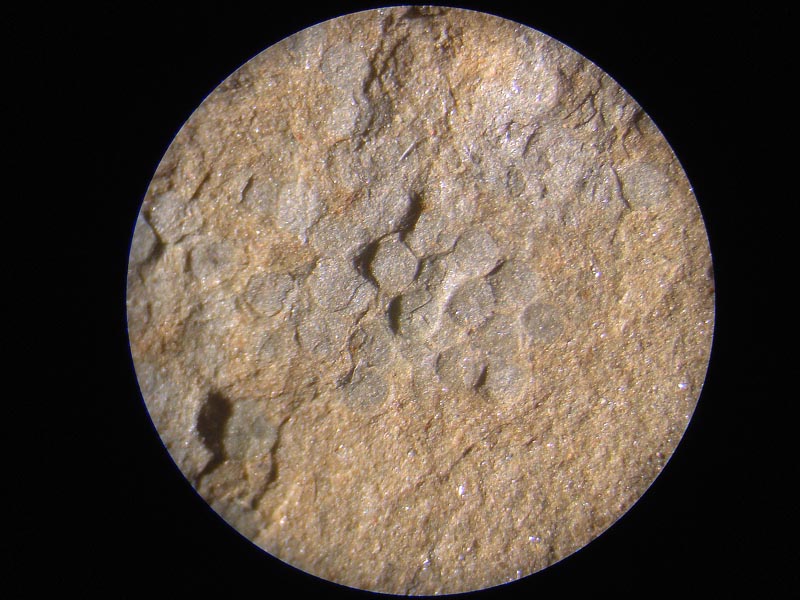

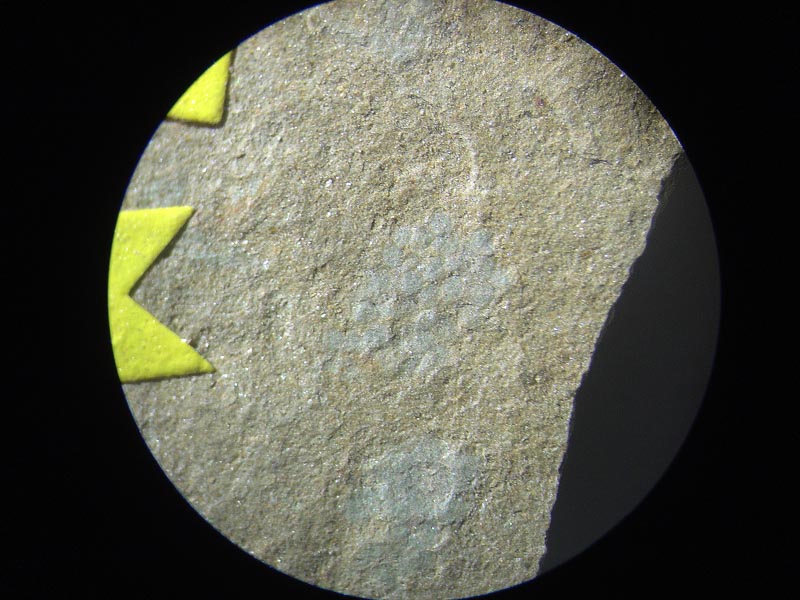

Detailed images with the microscope at 10x and 20x.
(click to enlarge to full size)
(click to enlarge to full size)
(click to enlarge to full size)
(click to enlarge to full size)
(click to enlarge to full size)
(click to enlarge to full size)
(click to enlarge to full size)
(click to enlarge to full size)
(click to enlarge to full size)
(click to enlarge to full size)
(click to enlarge to full size)
(click to enlarge to full size)
(click to enlarge to full size)
(click to enlarge to full size)
(click to enlarge to full size)
(click to enlarge to full size)
(click to enlarge to full size)
(click to enlarge to full size)
(click to enlarge to full size)
(click to enlarge to full size)
(click to enlarge to full size)
(click to enlarge to full size)
(click to enlarge to full size)
(click to enlarge to full size)
(click to enlarge to full size)
(click to enlarge to full size)
(click to enlarge to full size)
(click to enlarge to full size)
(click to enlarge to full size)
(click to enlarge to full size)
(click to enlarge to full size)
(click to enlarge to full size)
(click to enlarge to full size)
(click to enlarge to full size)
(click to enlarge to full size)
